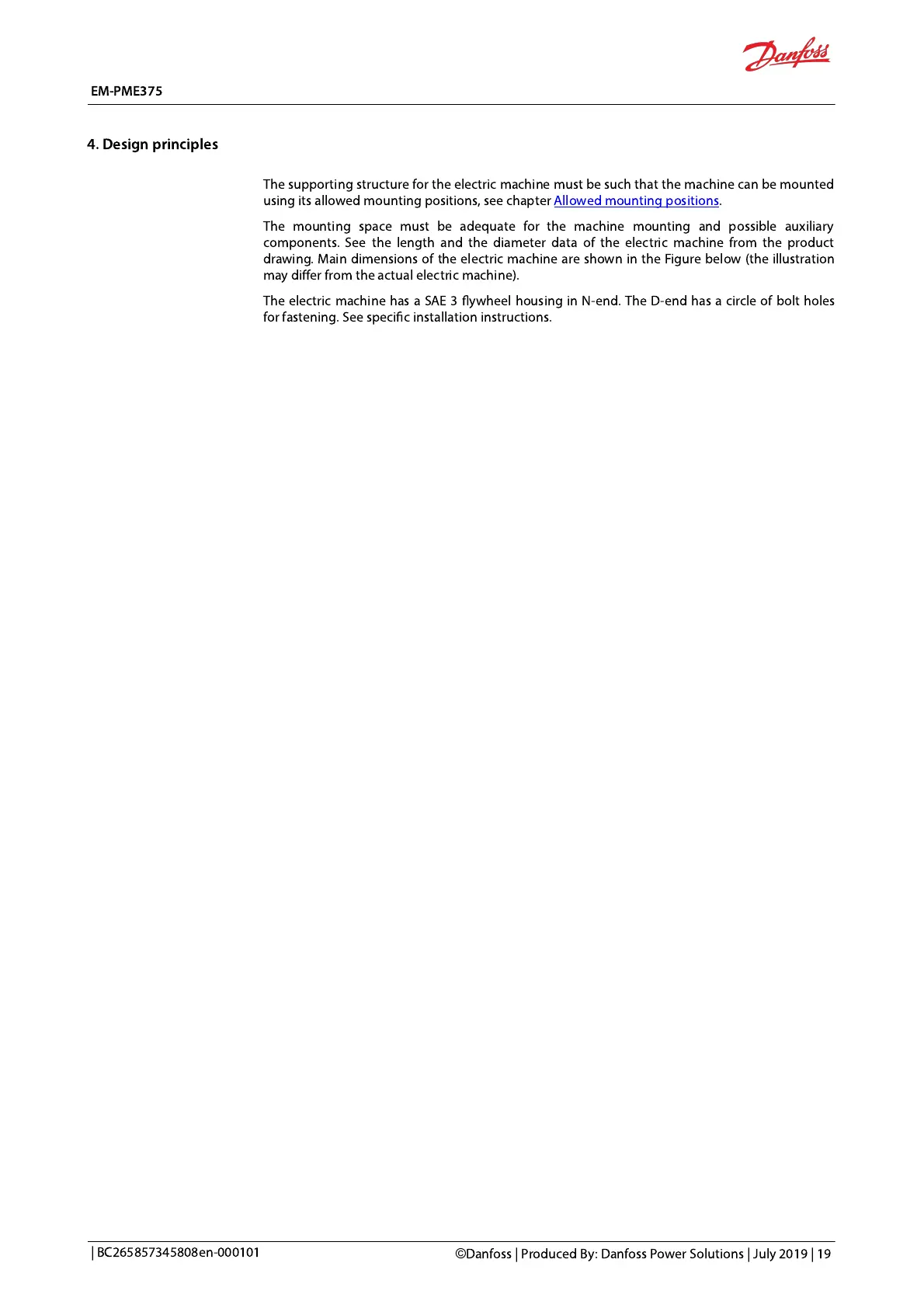

The supporting structure for the electric machine must be such that the machine can be mounted
using its allowed mounting positions, see chapter
Allowed mounting positions.
The
mounting space must be adequate for the machine mounting and possible auxiliary
components. See the length and the diameter data of the electric machine from the product
drawing. Main dimensions of the electric machine are shown
in the Figure below
(the illustration
may differ from the actual
electric machine).
The electric machine has a SAE 3 ywheel housing in N-end. The D-end has a circle of bolt holes
for fastening. See specic installation instructions.
