Installation Guide EvoFlat 4.0 Flat Stations for apartments, single- and multi-family houses
12 | © Danfoss | DCS-SGDPT/PL | 2022.01
AN40274706699301-010101
Note: A non-return valve must be fitted between the connection from the safety valve and
the ball valve.

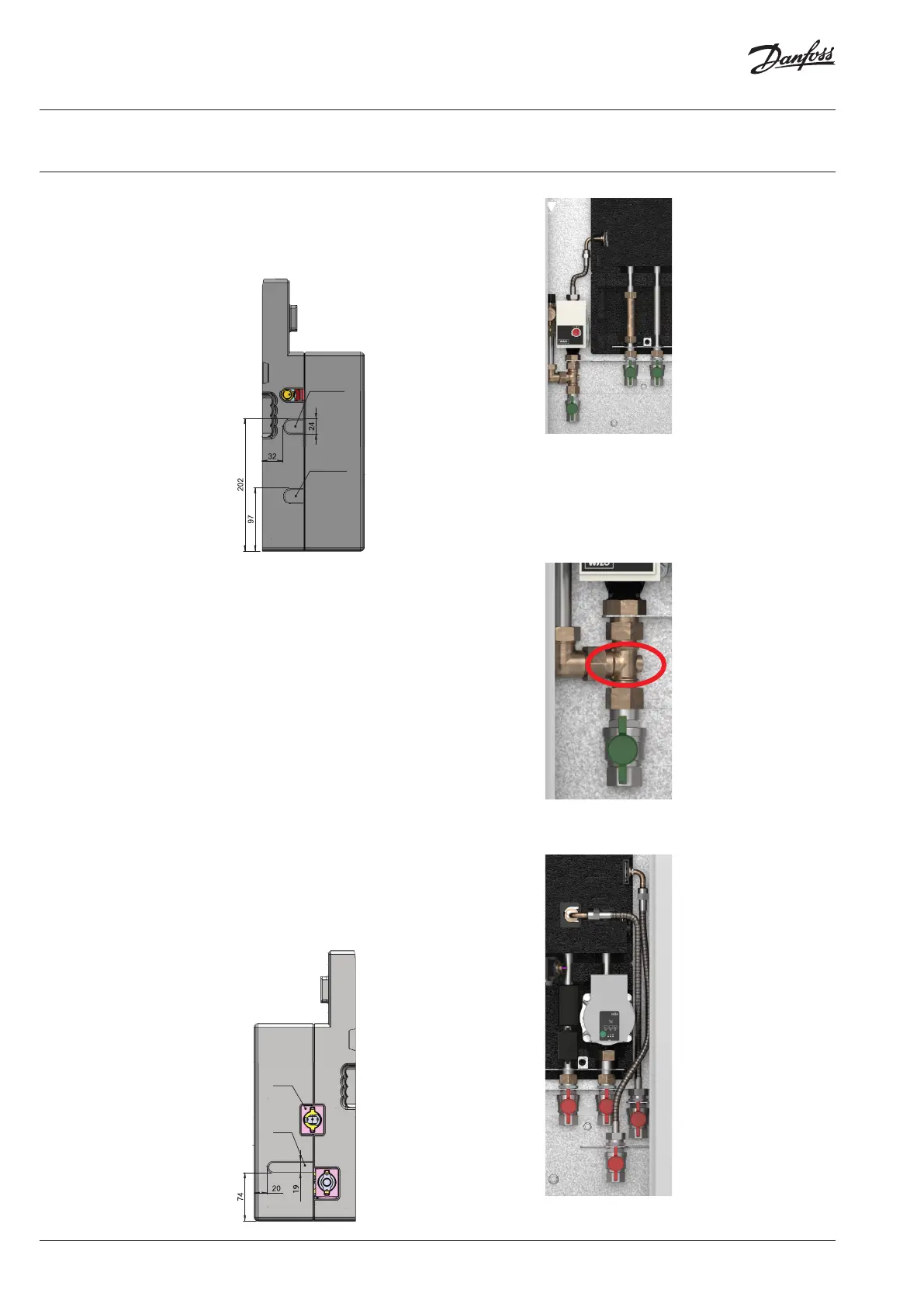

6.2 HTC
Remove the plug on the side of the station (remove hair pin).
Mount the connection from the flex hose and secure it with the hair pin.
6.1 Circulation
The pump must be mounted on the metal plate which must be mounted on the exist-
ing mounting rail.
Remove the plug on the side of the station (remove hair pin).
Mount the connection from the flex hose and secure it with the hair pin.
6. CIRCULATION
For cutout for HTC, please see
instructional drawing.
For cutout for circulation, please
see instructional drawing.
HWR
HWS
Electronic
Self acting
