Installation Guide EvoFlat 4.0 Flat Stations for apartments, single- and multi-family houses
© Danfoss | DCS-SGDPT | 2022.01
AN40274706699301-010101 | 7
EN
4. MAIN COMPONENTS & DIMENSIONAL SKETCHES
2 Plate heat exchanger DHW
4 Differential pressure controller
5 Stainer
6 Check valve
7 Ball valve
9 DHW circulation set with safety valve
(Wilo yonos Para Z)
10 Heating pump mixing cirquit
12 Safety valve
17 Air vent
23 Sensor pocket
24 Fitting piece for energy meter 3/4” × 110 mm
29 Sensor
30 Valve HE
33 Plug for heating cirquit
38 Hot Water Controller
40 Summer by-pass
52 Zone valve
54 Safety thermostat with TWA
59 Fitting piece for water meter 3/4” × 110 mm
Connections:
1. Domestic cold water (DCW) inlet
2. Domestic hot water (DHW)
3. Domestic cold water (DCW) outlet
4. District heating (DH) supply
5. District heating (DH) return
6. Heating (HE) supply
7. Heating (HE) return
Options:
• HTC (183H0501)
• PWH- Circulation set (183H0500)
• Actuator TWA-Q NO 230V (082F1601)
23
4 52 33 30
29
6
10
54
33
5
4
38
33
33
97
12
59
24
17
2
~ 230 V
DHW
DCW
DCW
DHW-C
DH
Supply
DH
Return
HE
Return
HE
Supply
530
65 65 65 65 65 65 4496
613
64
8
36 69
1 2 3 4 5 6 7
2
4 38
30
33
52
52A
4
5
59 24
12
54
10
40
17

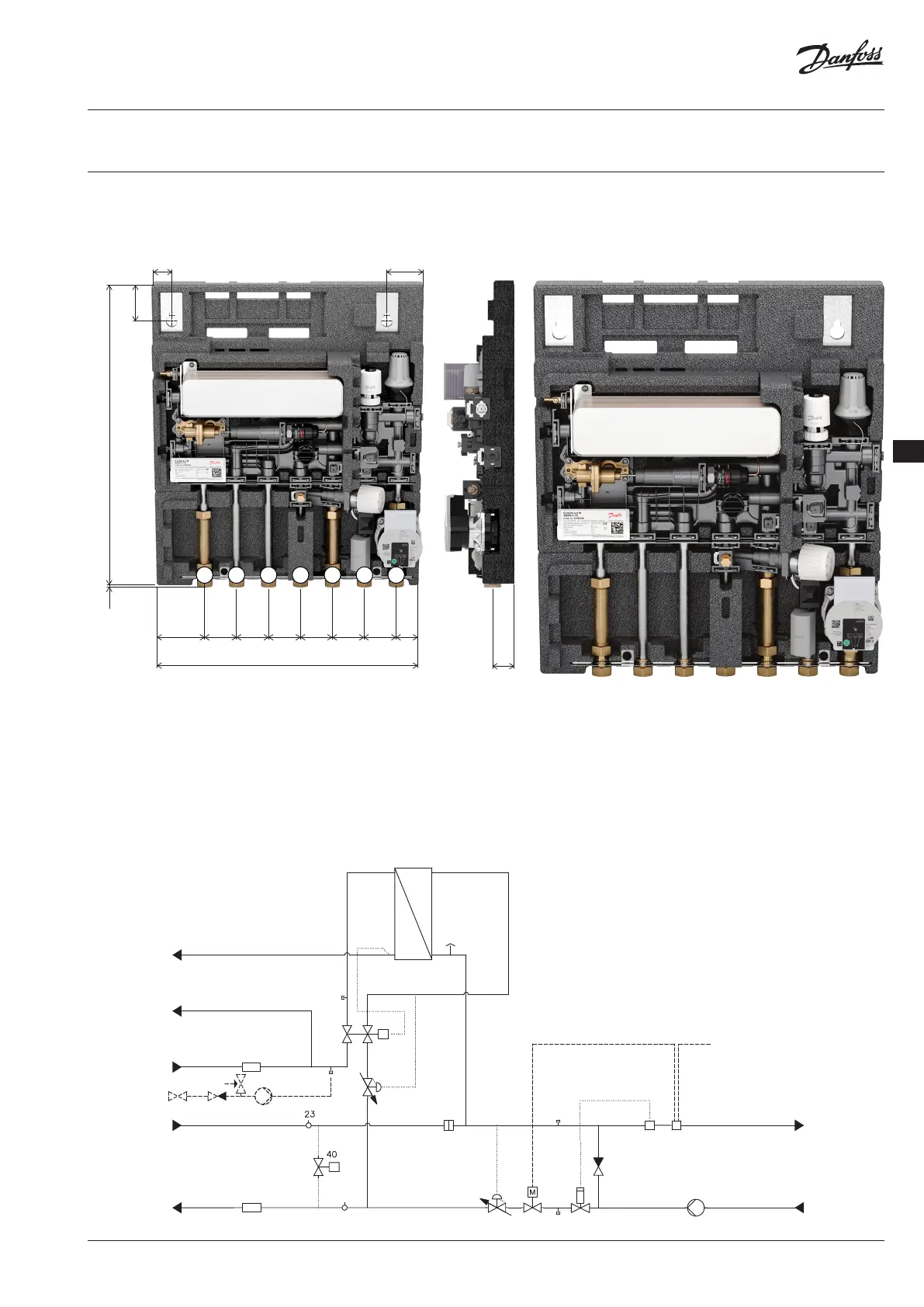

4.1 EvoFlat 4.0 M. Construction and Diagrams.
