Danfoss EvoFlat 4.0 M User Manual

Installation Guide EvoFlat 4.0 Flat Stations for apartments, single- and multi-family houses
8 | © Danfoss | DCS-SGDPT/PL | 2022.01
AN40274706699301-010101

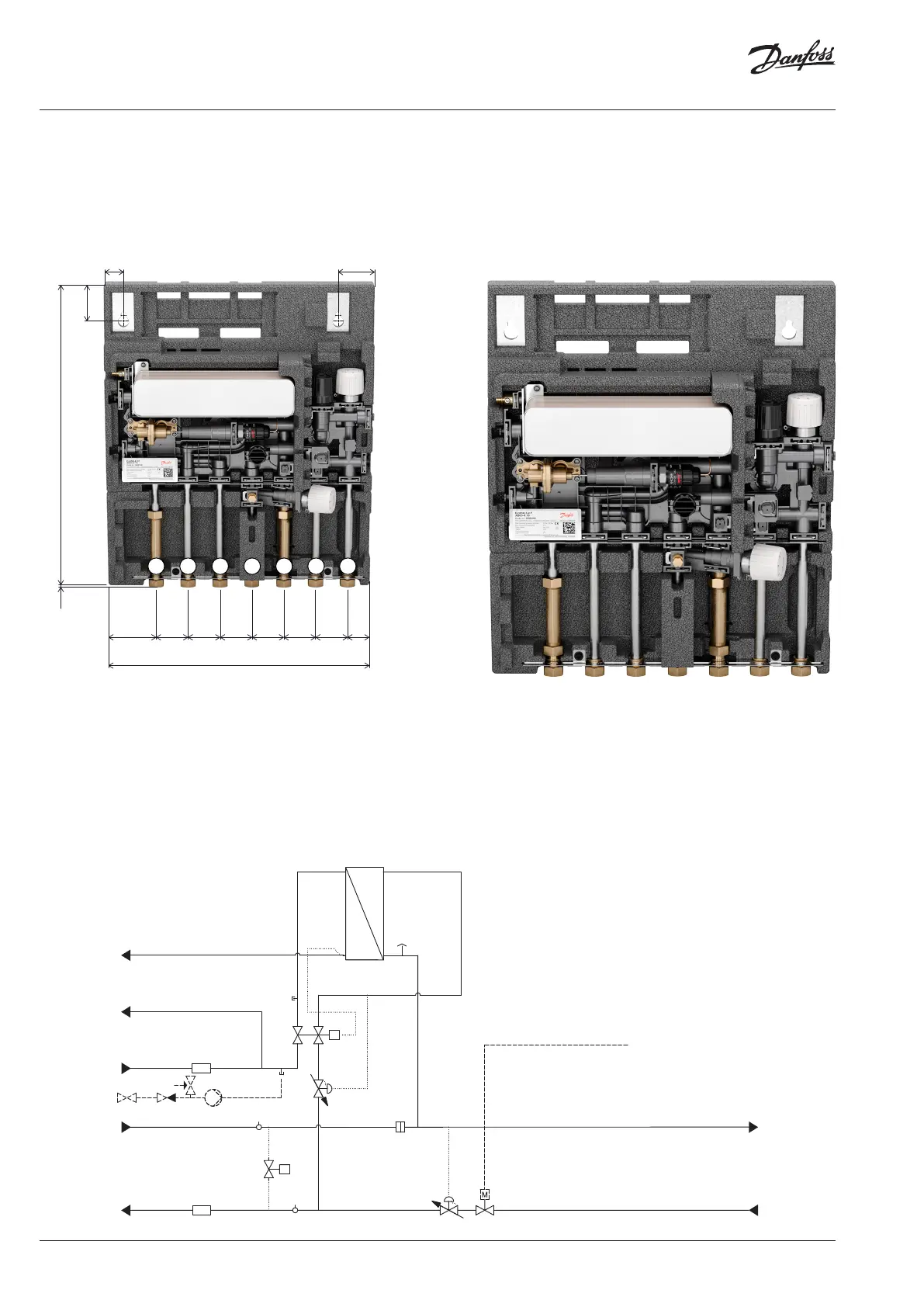

4.2 EvoFlat 4.0 F. Construction and Diagrams.
2
4 38
52
52A
4
5
59 24
40
17
2 Plate heat exchanger DHW
4 Differential pressure controller
5 Stainer
7 Ball valve
9 DHW circulation set with safety valve
12 Safety valve
17 Air vent
23 Sensor pocket
24 Fitting piece for energy meter 3/4” × 110 mm
38 Hot Water Controller
40 Summer By-pass
52 Zone valve
52A TWA Q-NO 230V for zone valve (optional)
59 Fitting piece for water meter 3/4” × 110 mm
38
33
33
4
23
9
12
7
59
2
17
~ 230 V
5
524
52A
23
24
40
DHW
DCW
DCW
DHW-C
DH
Supply
DH
Return
HE
Return
HE
Supply
530
65 65 65 65 65 65 4496
613
64
8
36 69
1 2 3 4 5 6 7
Connections:
1. Domestic cold water (DCW) inlet
2. Domestic hot water (DHW)
3. Domestic cold water (DCW) outlet
4. District heating (DH) supply
5. District heating (DH) return
6. Heating (HE) supply
7. Heating (HE) return
Options:
• PWH- Circulation set (183H0500)
• Actuator TWA-Q NO 230V (082F1601)
