Danfoss FC 100 Series User Manual

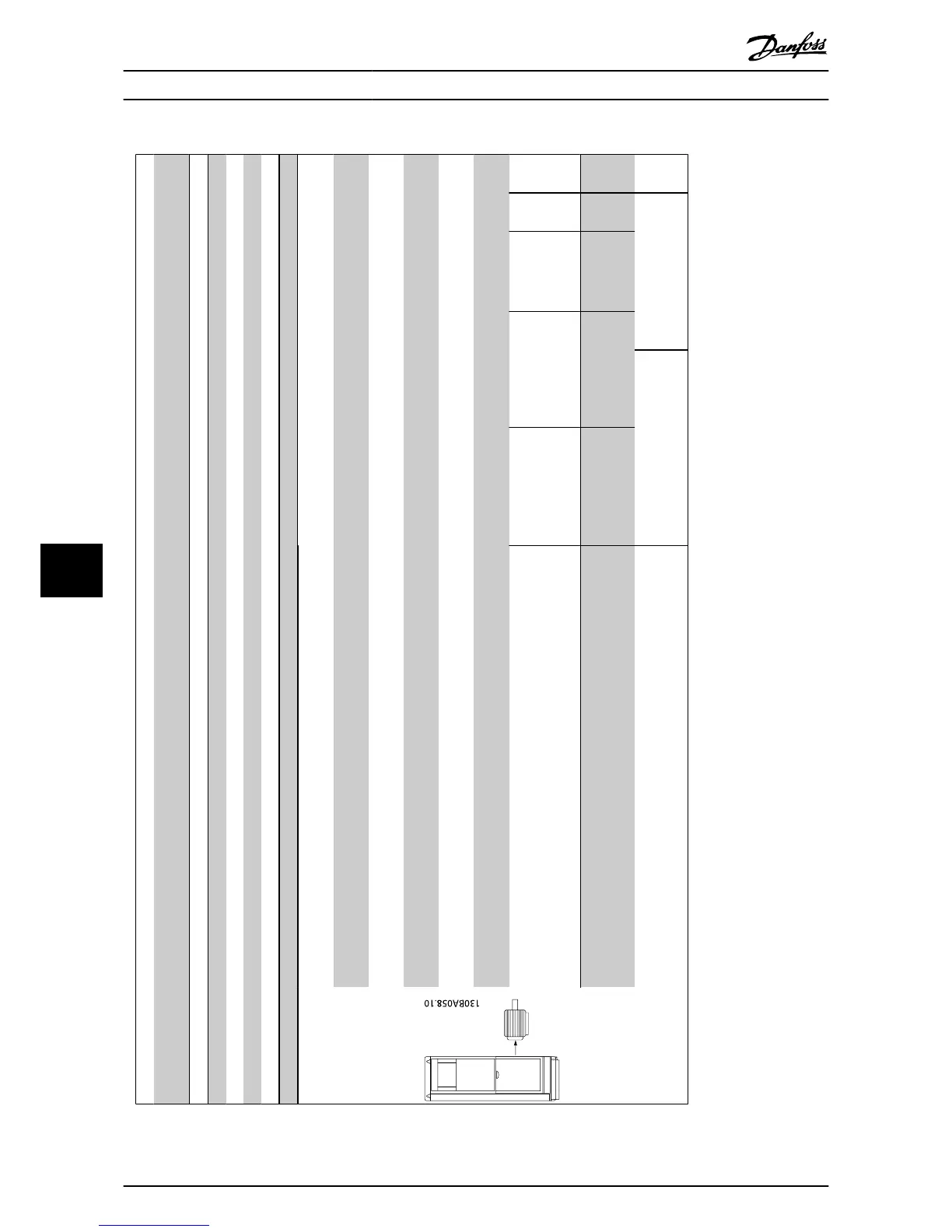

Mains supply 3 x 525 - 600 VACNormal overload 110% for 1 minute Size: P1K1 P1K5 P2K2 P3K0
P3K
7
P4K0 P5K5 P7K5 P11K P15K P18K P22K P30K P37K P45K P55K P75K P90K
Typical Shaft Output [kW] 1.1 1.5 2.2 3 3.7 4 5.5 7.5 11 15 18.5 22 30 37 45 55 75 90
IP 20 / Chassis A3 A3 A3 A3 A2 A3 A3 A3 B3 B3 B3 B4 B4 B4 C3 C3 C4 C4
IP 21 / NEMA 1 A3A3A3A3A2A3A3A3 B1 B1 B1B2B2 C1 C1 C1 C2C2
IP 55 / NEMA 12 A5 A5 A5 A5 A5 A5 A5 A5 B1 B1 B1 B2 B2 C1 C1 C1 C2 C2
IP 66 / NEMA 12 A5 A5 A5 A5 A5 A5 A5 A5 B1 B1 B1 B2 B2 C1 C1 C1 C2 C2
Output current
Continuous (3 x 525-550 V ) [A]
2.6 2.9 4.1 5.2 - 6.4 9.5 11.5 19 23 28 36 43 54 65 87 105 137
Intermittent (3 x 525-550 V ) [A]
2.9 3.2 4.5 5.7 - 7.0 10.5 12.7 21 25 31 40 47 59 72 96 116 151
Continuous (3 x 525-600 V ) [A]
2.4 2.7 3.9 4.9 - 6.1 9.0 11.0 18 22 27 34 41 52 62 83 100 131
Intermittent (3 x 525-600 V ) [A]
2.6 3.0 4.3 5.4 - 6.7 9.9 12.1 20 24 30 37 45 57 68 91 110 144
Continuous kVA (525 V AC) [kVA]
2.5 2.8 3.9 5.0 - 6.1 9.0 11.0 18.1 21.9 26.7 34.3 41 51.4 61.9 82.9 100 130.5
Continuous kVA (575 V AC) [kVA]
2.4 2.7 3.9 4.9 - 6.1 9.0 11.0 17.9 21.9 26.9 33.9 40.8 51.8 61.7 82.7 99.6 130.5
Max. cable size, IP 21/55/66 (mains, motor, brake) [mm
2
]/[AWG]
2)
4/
10
10/
7
25/
4
50/ 1/0
95/ 4/0
120/ MCM2 50
Max. cable size, IP 20 (mains, motor, brake) [mm
2
]/[AWG]
2)
4/
10
16/
6
35/
2
50/ 1/0
95/ 4/0
150/ MCM2 50
5)
With mains disconnect switch included:
4/10 16/6 35/2 70/3/0
185/
kcmil3
50
Table 9.5:
5)
With brake and load sharing 95/ 4/0
Specifications
VLT
®
HVAC Drive Operating Instructions
138 MG.11.AD.02 - VLT
®
is a registered Danfoss trademark
9
9
