Danfoss FC 300 Profibus User Manual

FC 300 Profibus
How to Configure the System
 Configure the PROFIBUS Network
All PROFIBUS stations that are connected to the same bus network must have a unique station address.
The PROFIBUS address of the FC 300 can be selected via:
- Hardware switches
- Par. 9-18 Node address
- The PROFIBUS command SSA “Set Station Address”
 Setting the PROFIBUS Address using the Har
dware Switches
Using the hardware switches it is possible to select an address range from 0 to 125 (factory setting 127)
according to the table below:
Switch 8 7 6 5 4 3 2 1
Address value Not used +64 +32 +16 +8 +4 +2 +1
E.g. address 5 Not used OFF OFF OFF OFF ON OFF ON
E.g. address 35 Not used OFF ON OFF OFF OFF ON ON
E.g. address 82 Not used ON OFF ON OFF OFF ON OFF
NB!:
Switch off the power supply before
changing th e hardware switches.
The address change will come into effect at the
next power-up, and can be read in par. 9-18 Node
address.

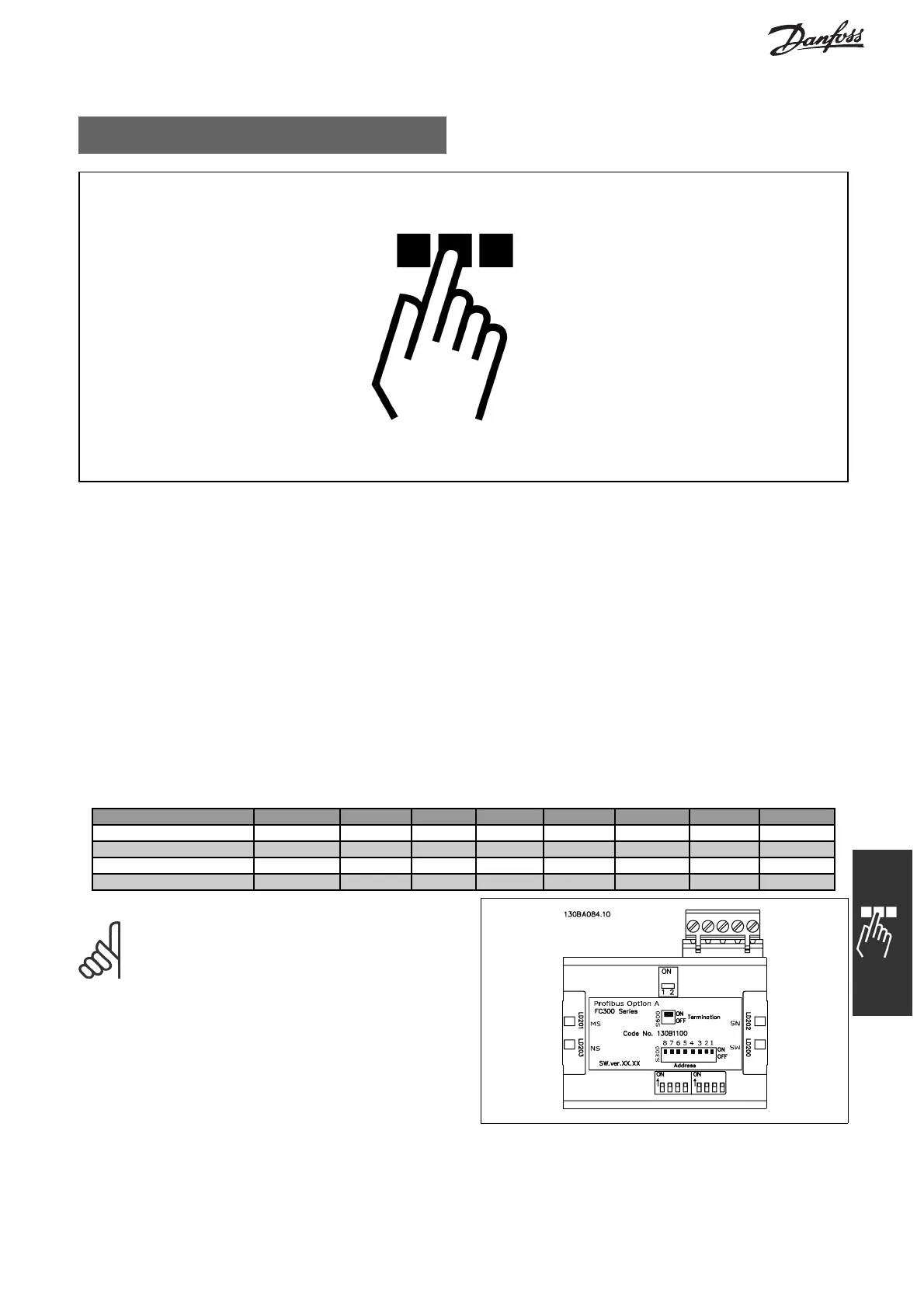

Note the location and sequence of the hardware
switches as illustrated in the figure opposite.
19
MG.33.C2.02 - VLT is a registered Danfoss trademark
