Application Exa mples
 E.g.: PLC Programming

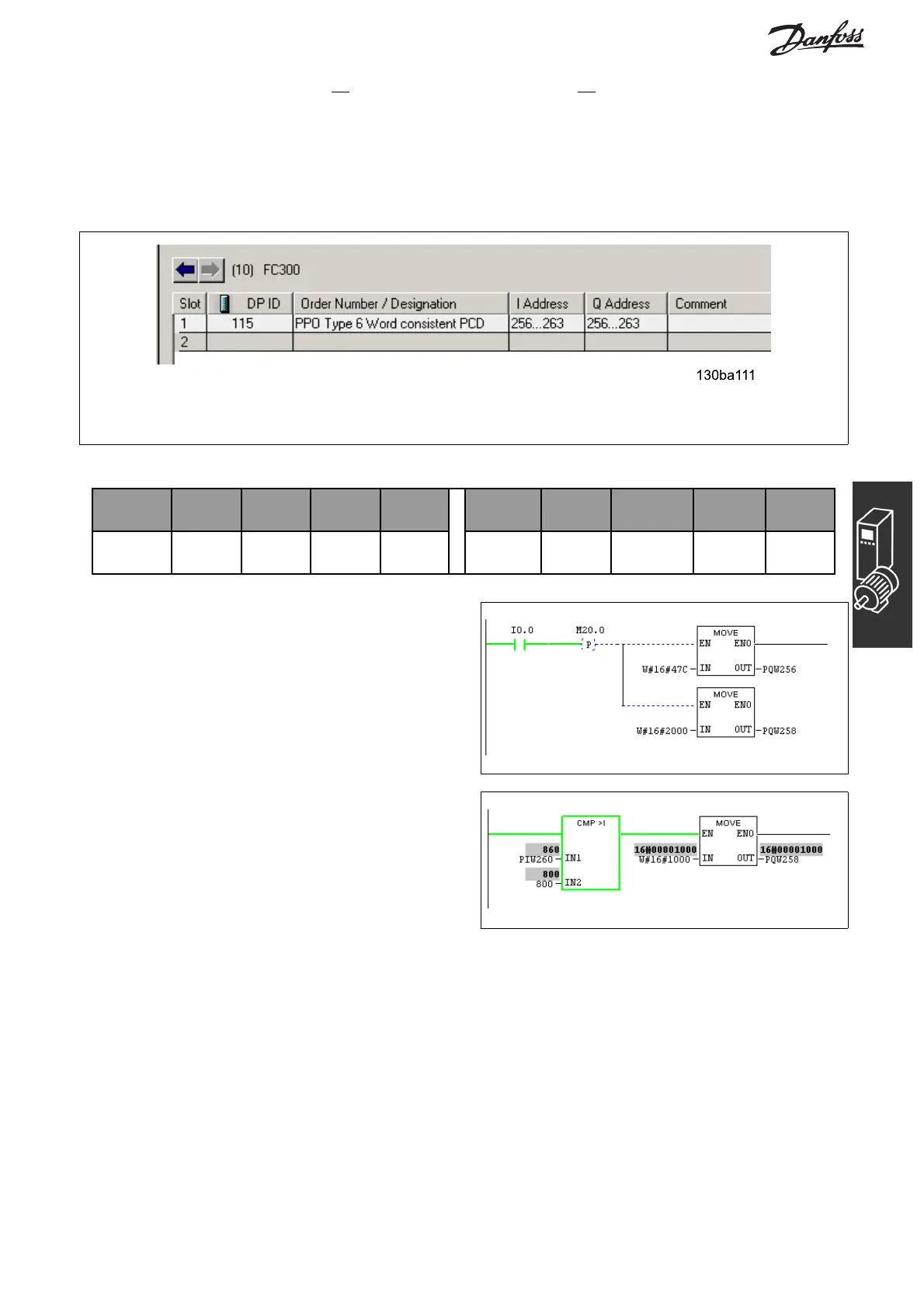

In this example PPO type 6 is placed in the following Input/Output address:
Input
address
256-257 258-259 260-261 262-263 Output
address
256-257 258-259 260-261 262-263
Set-up Status
word
MAV Motor
torque
Digital
input
Set-up Control
word
Reference Not used Not used
This network will send a start command (047C Hex)
and a reference (2000 Hex) of 50% to the FC 300.
This network reads the motor torque from the FC
300 drive. A new reference will be sent to the FC
300 drive because the Motor Torque (86.0%) is
higher than the compared value.
