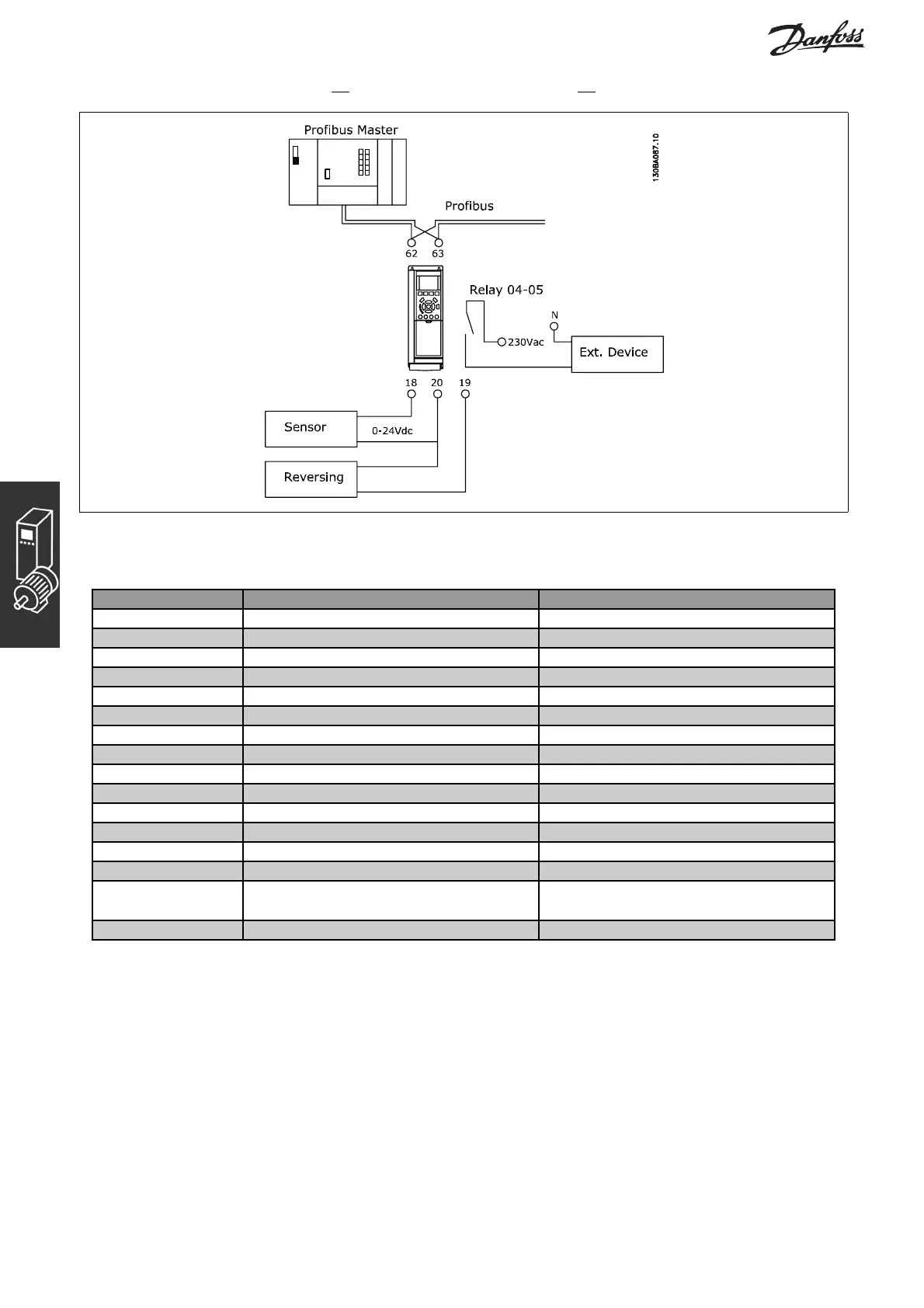

Application Exa mples
Program the FC 300 as follows:
Parameter no. Function Setting
4-10 Output speed direction Both directions [2]
5-10 Digital input 18 No operation [0]
5-11 Digital input 19 Reversing [10]
5-40 Function relay Control word bit 11/12 [36/37]
8-03 Control word timeout time 1sec
8-04 Control word timeout function Stop [2]
8-10 Control word profile FC Profile [0]
8-50 Coasting select Bus [1]
8-51 Quick stop select Bus [1]
8-52 DC brake select Bus [1]
8-53 Start select Bus [1]
8-54 Reversing select Logic AND [2]
8-55 Set-up select Bus [1]
8-56 Preset reference select Bus [1]
9-16 PCD read configuration Sub index [2] 16-16 Motor torque
Sub indes [3] 16-60 Digital input
9-18 Node address Set the address
