Danfoss MCA 122 Modbus TCP User Manual

2 How to Install
2.1 The Modbus TCP Option
Ethernet Port 1 Ethernet Port 2
MS LED
NS LEDs
MCA122
MODBUS TCP
SW. ver. TM. ver.
MS
NS1
NS2
Ethernet Port 1 Ethernet Port2
Option A
130B1196
MAC 00-1B-08-00-00-00
Address
8 7 6 5 4 3 2 1
ON
OFF
130BD190.10

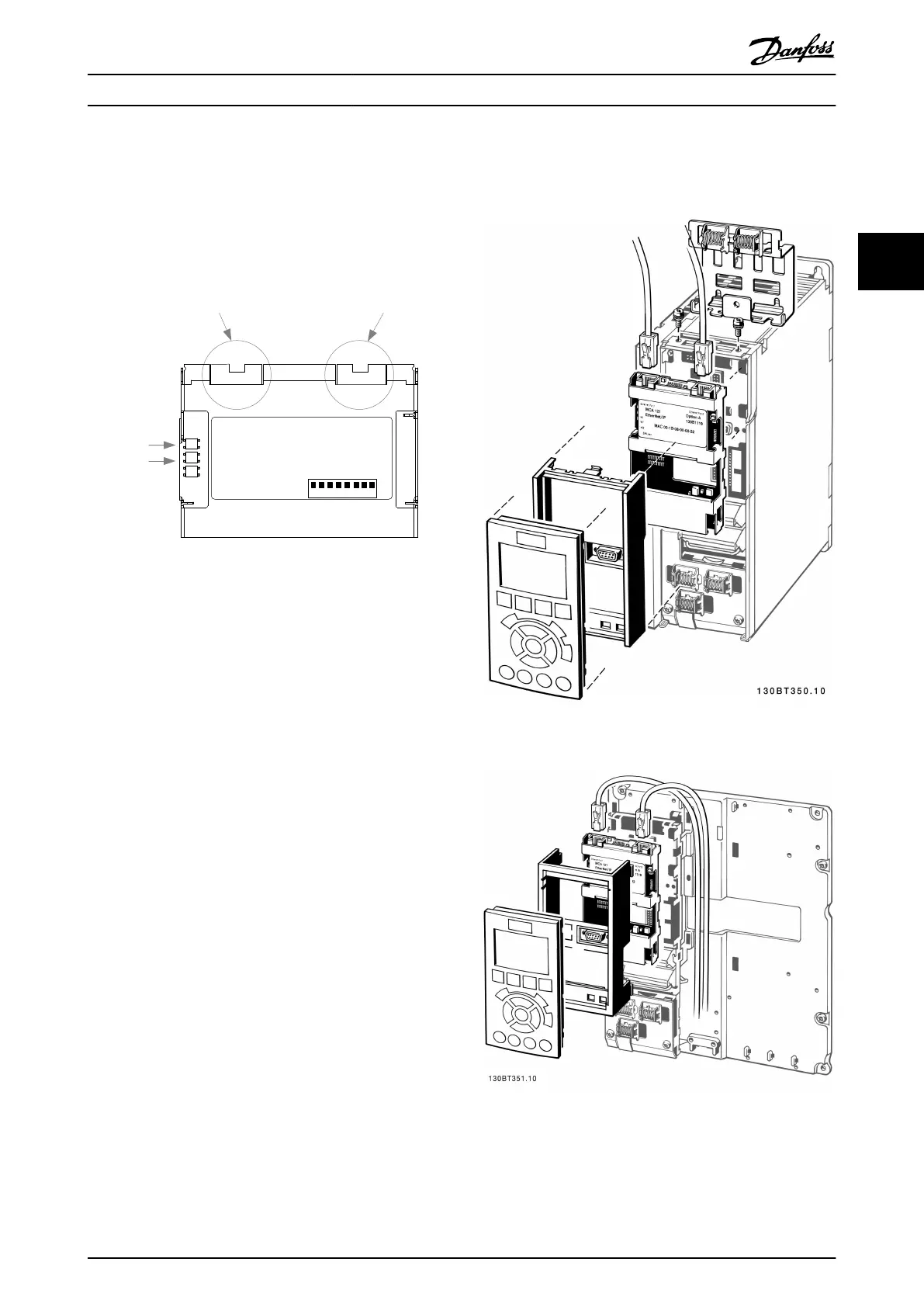

Illustration 2.1 Overview of the Option
2.1.1
How to Install Option in Frequency
Converter
Items required for installing a fieldbus option in the
frequency converter
•
The fieldbus option
•
Fieldbus option adapter frame for the FC 102/FC
202/FC 300. This frame is deeper than the
standard frame, to allow space for the fieldbus
option beneath
•
Strain relief (only for A1 and A2 enclosures)
Illustration 2.2 Option Installed in Frequency Converter
Illustration 2.3 Strain Relief for Enclosure Types A1 and A2
How to Install MCA 122 Modbus TCP
MG90P202 - VLT
®
is a protected Danfoss trademark 5
2
2
