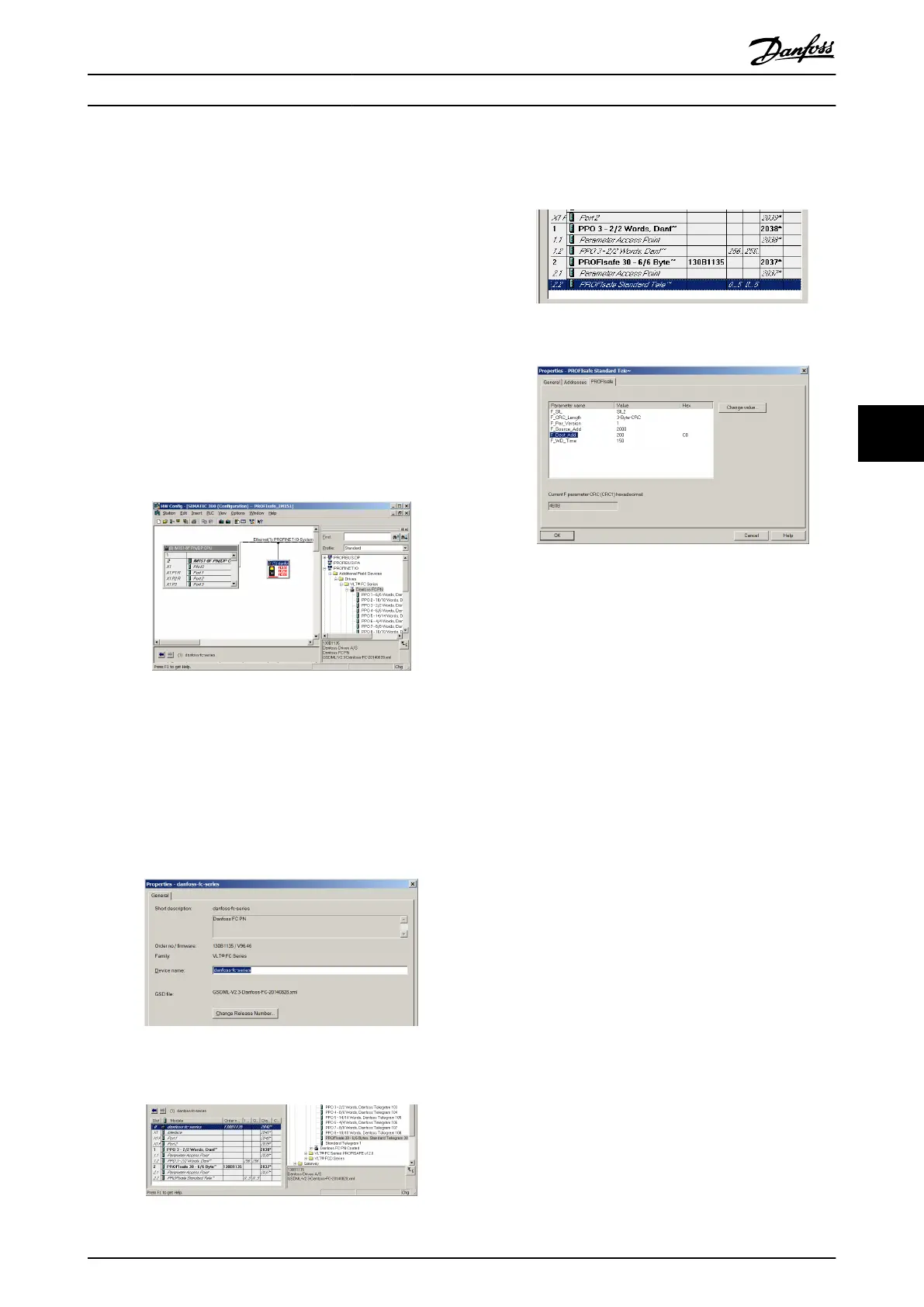

6.4 Configuring PROFIsafe with Siemens
Step 7
This section explains how to configure PROFIsafe
communication between Safety Option MCB152 and
Siemens device in Siemens STEP 7 environment.
6.4.1 Configure the Hardware
Configure the PROFINET communication with the F-PLC
using the VLT
®
PROFINET MCA 120 Installation Guide.
To add the Danfoss device to the PROFIsafe connection in
STEP 7:
1.
In the panel on the right side, select PROFINET IO
⇒ Additional Field Devices ⇒ Drives ⇒ VLT FC Series
⇒ Danfoss FC PN.
130BE080.10
2.
Drag the Danfoss FC PN module and drop it onto
the PROFINET connection. STEP 7 may require to
enter a password for this operation.
3.
In the Password for Safety Program dialogue box,
enter the appropriate password.
4. To edit the Danfoss device properties, double-
click the device.
5.
In the Device name field, enter the same name as
shown in 12-08 Host Name.
130BE081.10
6. Select the module and add the following I/O
protocol: PROFIsafe 30 -6/6 Bytes, Standard
Telegram 30.
130BE082.10
7. To edit the PROFIsafe settings. ouble-click
PROFIsafe Standard Telegram at the bottom of the
HW Config dialogue box, d.
130BE083.10
8.
Select the PROFIsafe tab in the Properties dialogue
box, .
130BE084.10
9. Edit the required settings.
The following 3 parameters can be changed, but normally
it is only necessary to change the F_Dest_Add parameter:
•
F_Source_Add - the PROFIsafe address of the
PROFIsafe master.
•
F_Dest_Add - the destination address of Safety
Option MCB 152. This address must be the same
as set in MCT-10 Set-up Software,
42-61 Destination Address.
•
F_WD_Time - the watchdog time for the
PROFIsafe connection.
Watchdog time
The watchdog time setting depends on the speed of the
PROFINET connection and the number of devices.
Valid range: 67-65535 ms.
Default value: 150 ms.
If the safety option does not receive a new valid PROFIsafe
telegram within this time, the safety option enters the safe
state. The watchdog time is configured to a value that is
long enough to avoid false alarms and short enough to
detect errors in communication. The formula for
calculating the minimum watchdog time:
F_WD_Time=2 * BT + HAT + DAT
•
BT = Bus cycle time.
•
HAT=Host acknowledgement time.
•
DAT=Device acknowledgement time.
Use the watchdog time to calculate the safety function
response time (SFRT) for the system. For more information,
see the PROFIsafe profile description at www.profibus.com.
Configuring the Safety Opti...
Operating Instructions
MG37F102 Danfoss A/S © 10/2014 All rights reserved. 23
6 6
