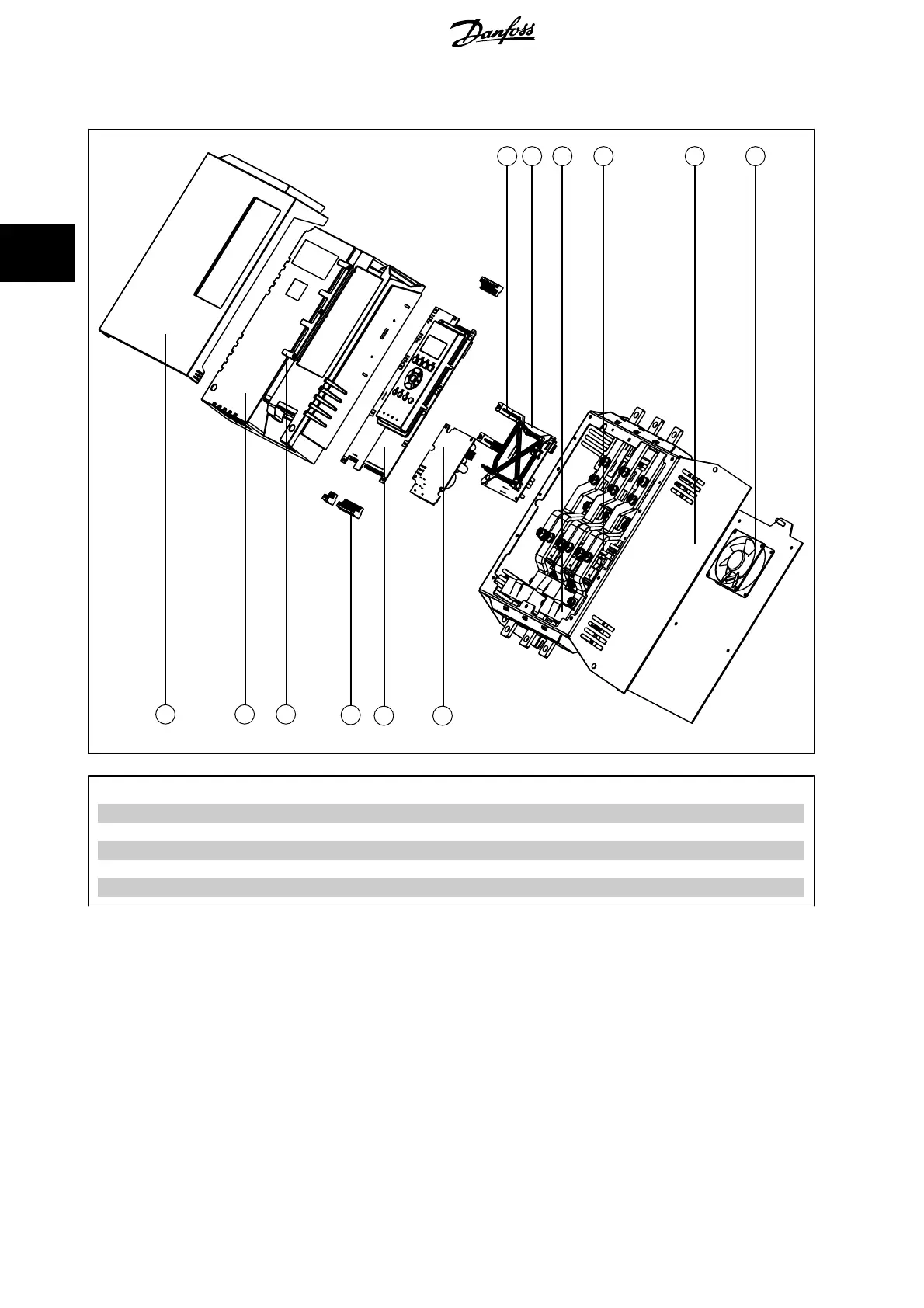

3.1.3 MCD5-0131B - MCD5-0215B (G2B)
1 2
4
5
8 9 10
3
6
7 11 12
177HA538.10
1 Cover 7 Support plastic
2 Main plastic 8 Model PCB
3 Cable guide 9 Current transformers
4 Terminal blocks 10 SCRs
5 LCP and Main Control PCB 11 Main body
6 Bypass Driver PCB 12 Fan and bracket
3 Service Instructions MCD 500 Service Manual
16
MG.17.L1.02 - VLT
®
is a registered Danfoss trademark
