Danfoss MCD 500 Service Manual

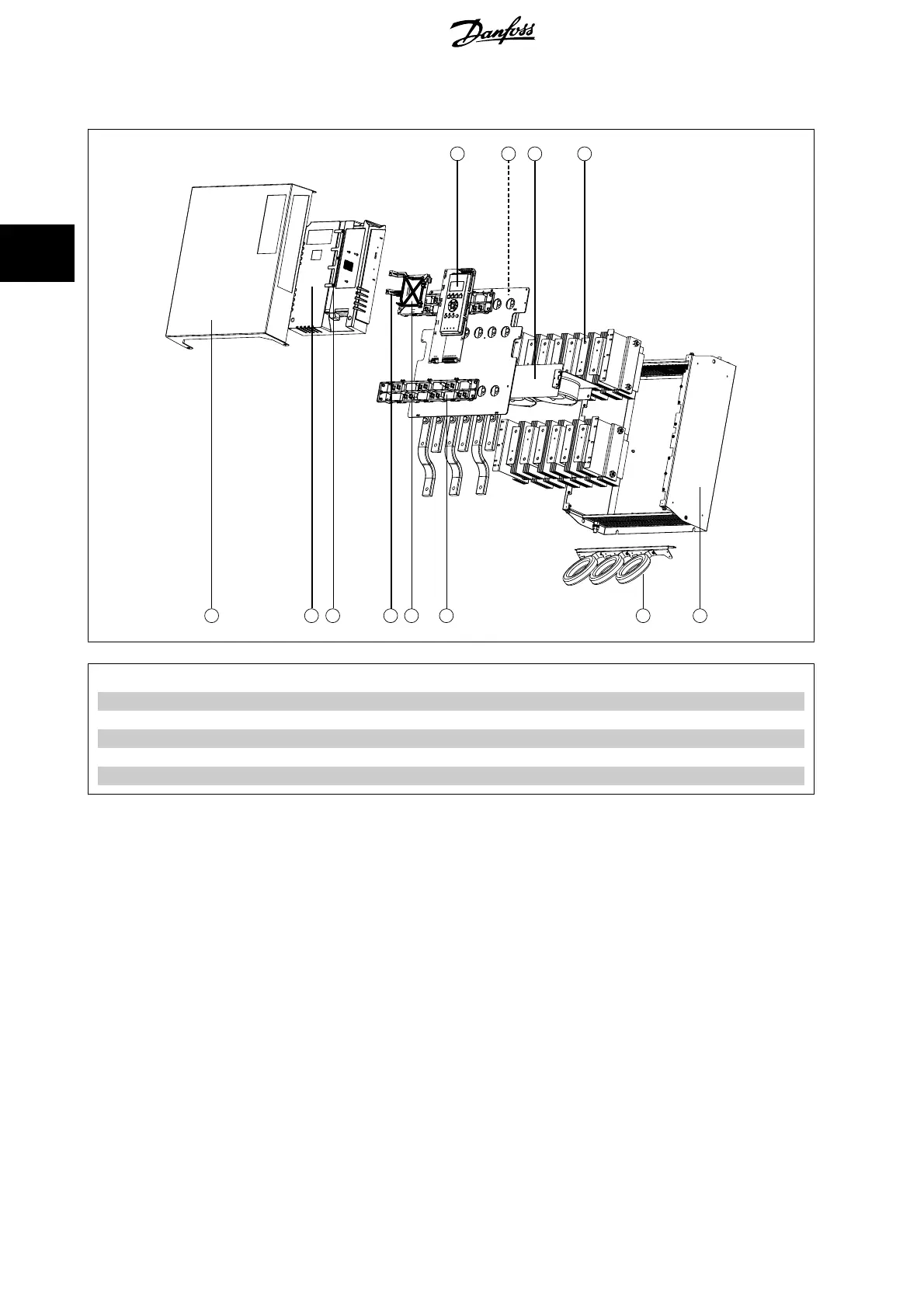

3.1.5 MCD5-0360C - MCD5-0927C (G4C)
1 2 6
8 9 10
3 54 11 12
7
177HA540.10
1 Cover 7 LCP and Main Control PCB
2 Main plastic 8 Magnetic bypass plate (models <0595>C - 0927C)
3 Cable guide 9 Fan assembly
4 Support plastic 10 Power assembly
5 Model PCB 11 Current transformer assembly
6 Module mount and spacer plastic 12 Main body
3 Service Instructions MCD 500 Service Manual
18 MG.17.L1.02 - VLT
®
is a registered Danfoss trademark
3

Danfoss MCD 500 Specifications

General

Cooling Method	Forced Air
Rated Control Supply Voltage Us	24V DC
Rated Operational Current Ie	Up to 500A
Approvals	CE, UL
Output Current	25 - 1600 A
Protection Class	IP20
