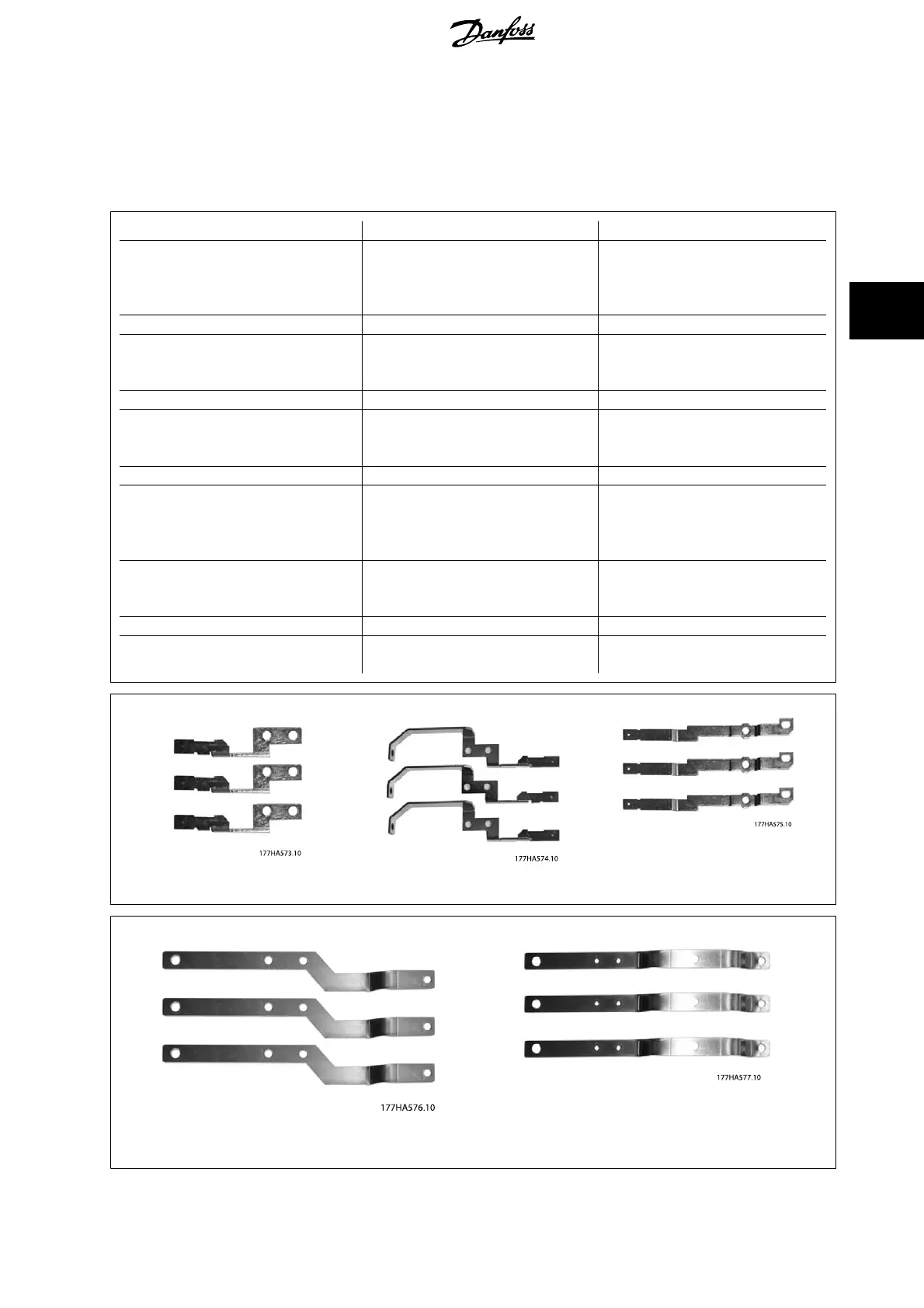

4.11 Bus Bars
Each soft starter requires a total of six bus bars (three input and three output). Each kit contains three bus bars (unless otherwise stated) and fixing
accessories if applicable.
Input Output
MCD5-0021B
175G5677 175G5678
MCD5-0037B
MCD5-0043B
MCD5-0053B
MCD5-0068B 175G5679 175G5680
MCD5-0084B
175G5681 174G5682MCD5-0089B
MCD5-0105B
MCD5-0131B 175G5696 175G5683
MCD5-0141B
175G5684 175G5685MCD5-0195B
MCD5-0215B
MCD5-0245C 175G5686 (set of 6) 175G5687
MCD5-0360C
175G5688 175G5689
MCD5-0380C
MCD5-0428C
MCD5-0595C
MCD5-0619C
175G5690 175G5691MCD5-0790C
MCD5-0927C
MCD5-1200C 175G5692 175G5693
MCD5-1410C
175G5694 175G5695
MCD5-1600C
175G5677 175G5679, 175G5681 175G5678, 175G5680, 175G5682
175G5696, 175G5684 175G5683, 175G5685
MCD 500 Service Manual 4 Spare Parts
MG.17.L1.02 - VLT
®
is a registered Danfoss trademark 31
4
