1 Balance/high frequency card 8 Insulator sheet 3
2 Plastic alignment cap 9 Midplate 2
3 DC(-) plate 10 Capacitor locking panel
4 DC(+) plate 11 O-ring gasket
5 Midplate 1 12 Twistlock DC capacitor
6 Insulator sheet 1 13 Capacitor bank housing
7 Insulator sheet 2 14 Capacitor bank gasket

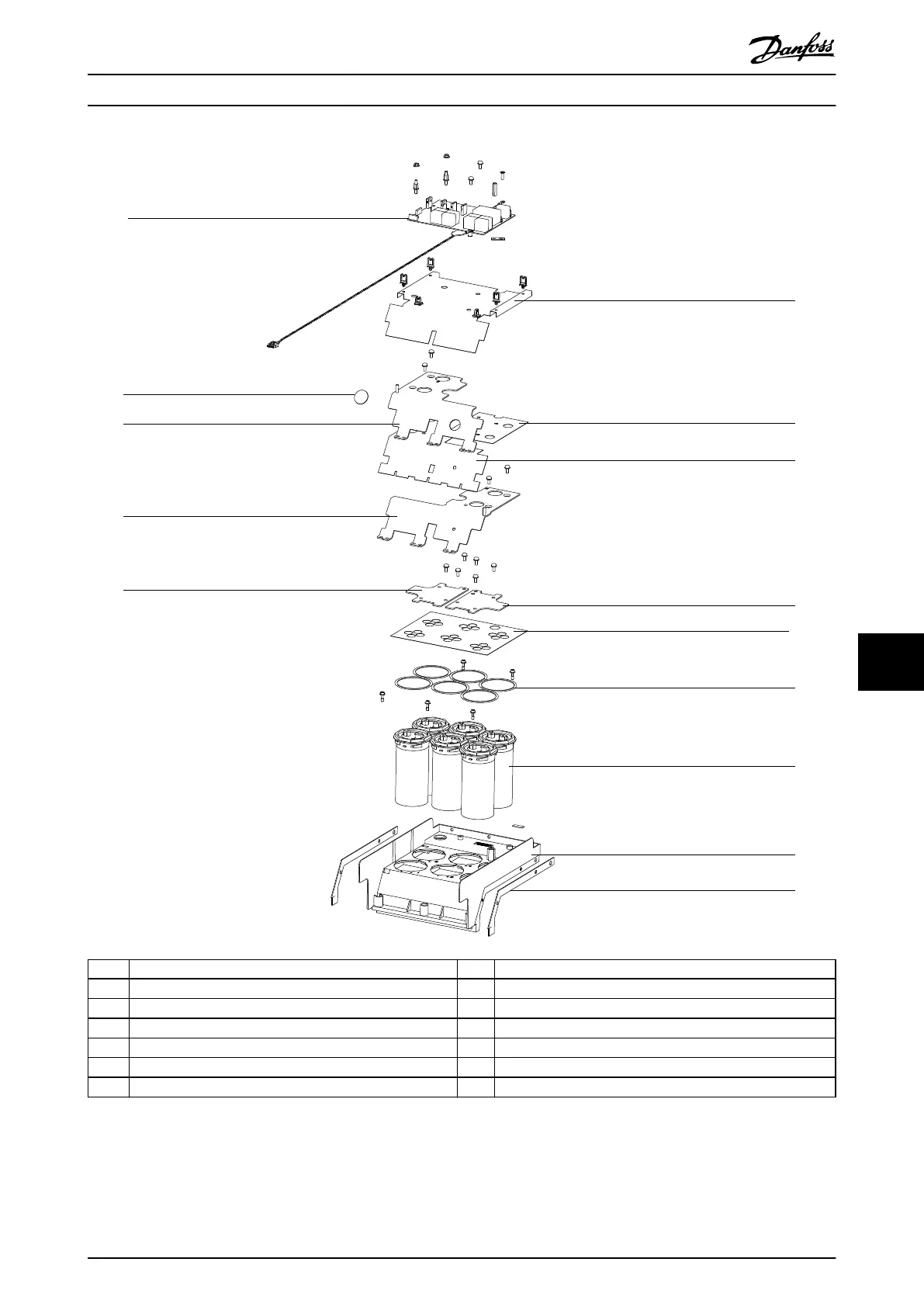

Illustration 10.19 Twistlock DC Capacitors, 690 V AC Unit
