8.12.2 F13 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
2
244 (9.6)
0.0
151 (5.9)
440 (17.3)
548 (21.6)
0.0
73 (2.9)
88 (3.5)
112 (4.4)
139 (5.5)
172 (6.8)
181 (7.1)
232 (9.1)
232 (9.1)
273 (10.7)
324 (12.8)
339 (13.3)
388 (15.3)
437 (17.2)
439 (17.3)
480 (18.9)
497 (19.6)
531 (20.9)
557 (21.9)
573 (22.6)
602 (23.7)
626 (24.6)
1 Mains terminals 2 Ground bar

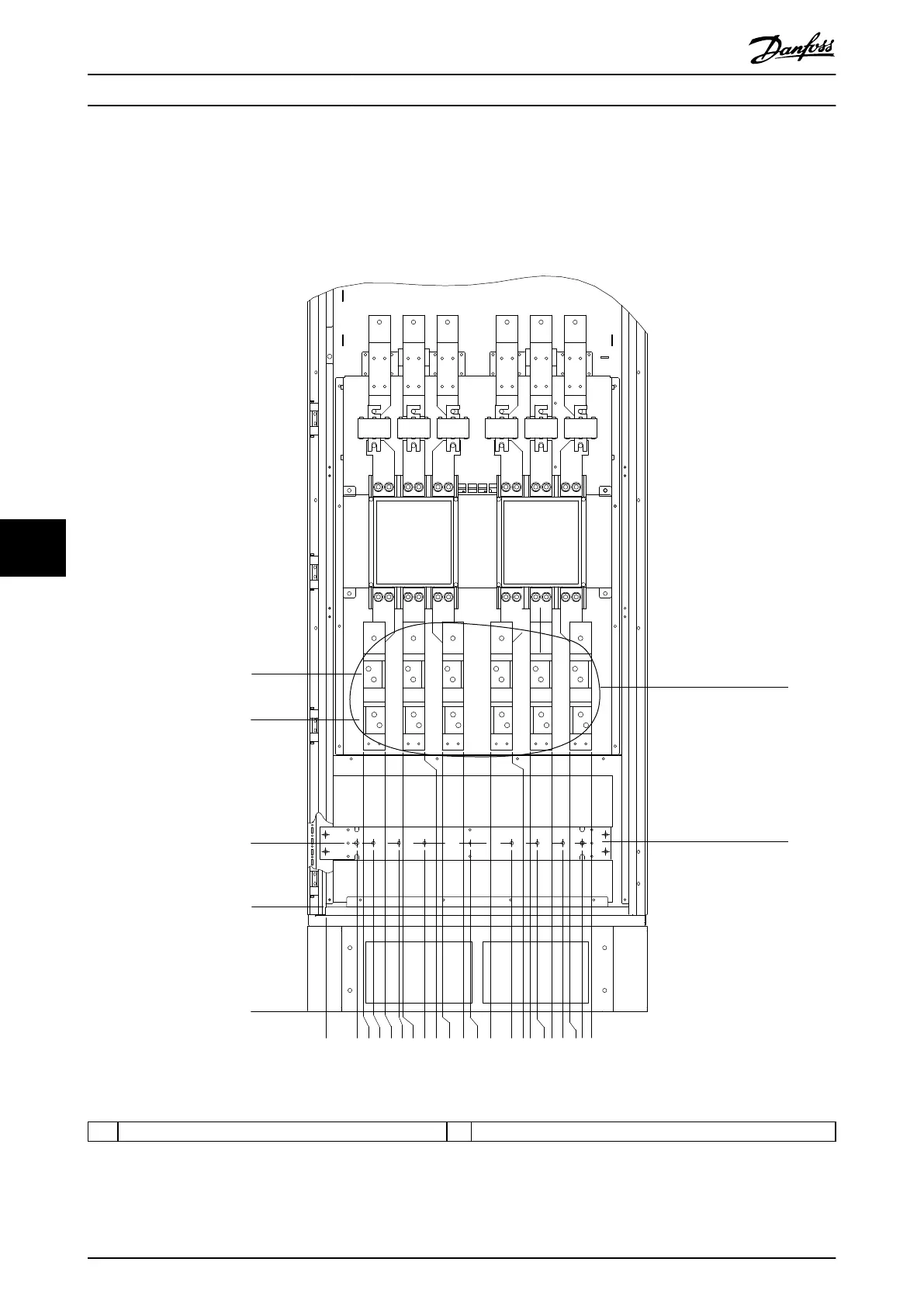

Illustration 8.88 Terminal Dimensions for F11/F13 Options Cabinet, Front View
Exterior and Terminal Dimen...
VLT
®
HVAC Drive FC 102
152 Danfoss A/S © 11/2017 All rights reserved. MG16C302
