35 (1.4)
350 (13.8)
203 (8.0)
99 (3.9)
130 (5.1)
62 (2.4)
1 Mains side 2 Motor side

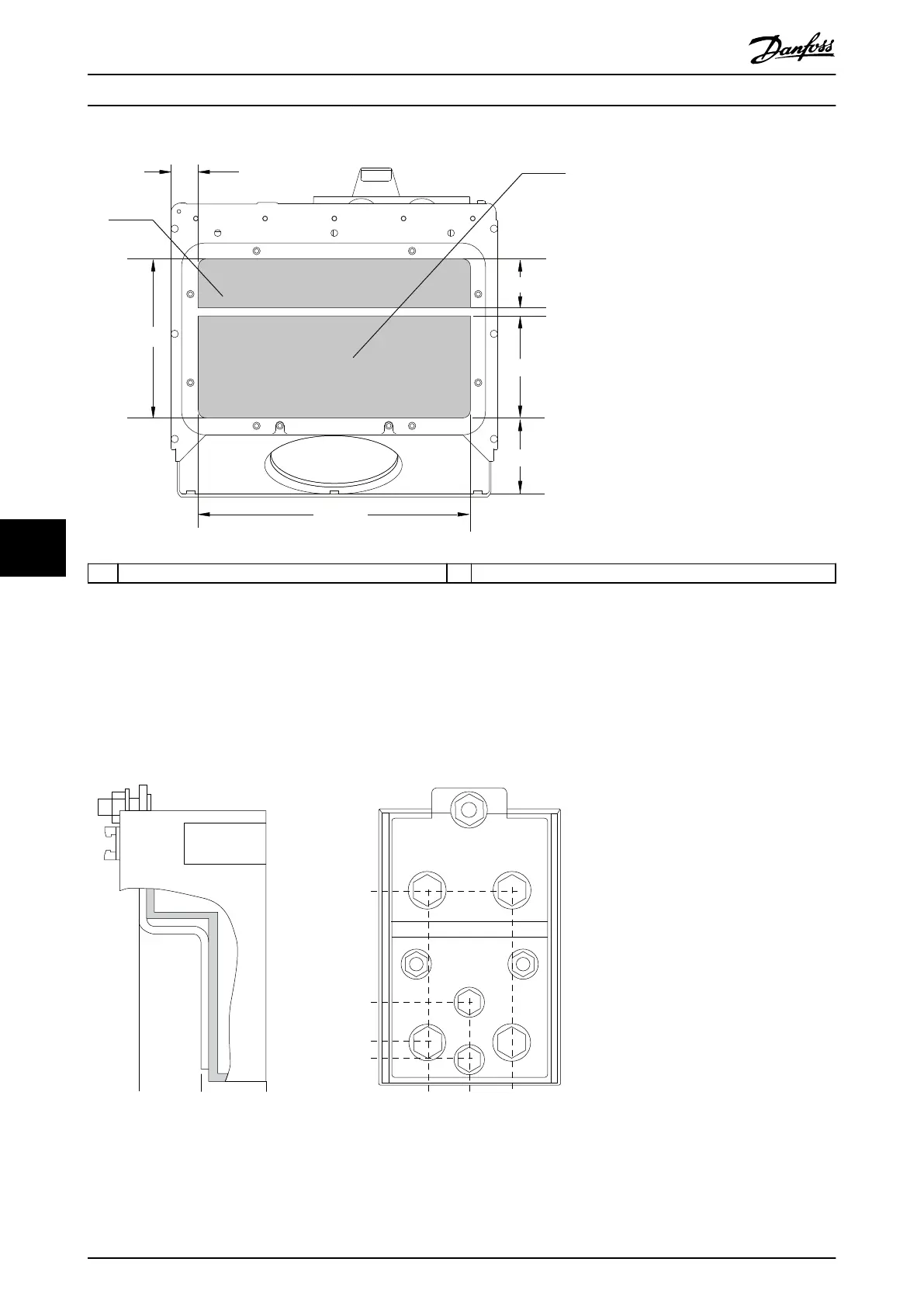

Illustration 8.2 Gland Plate Dimensions for E1/E2
8.1.2 E1 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
104 (4.1)
35 (1.4)
10 (0.4)
0 (0.0)
0 (0.0)
40 (1.6)
78 (3.1)
0 (0.0)
26 (1.0)
26 (1.0)
Illustration 8.3 Detailed Terminal Dimensions for E1/E2
