8.4.2 F2 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
130BF583.10
75 (3.0)
0.0
125 (5.0)
219 (8.6)
294 (11.6)
363 (14.3)
438 (17.2)
150 (5.9)
487 (19.2)
183 (7.2)
373 (14.7)
2
1
CH22
1 Mains terminals 2 Ground bar

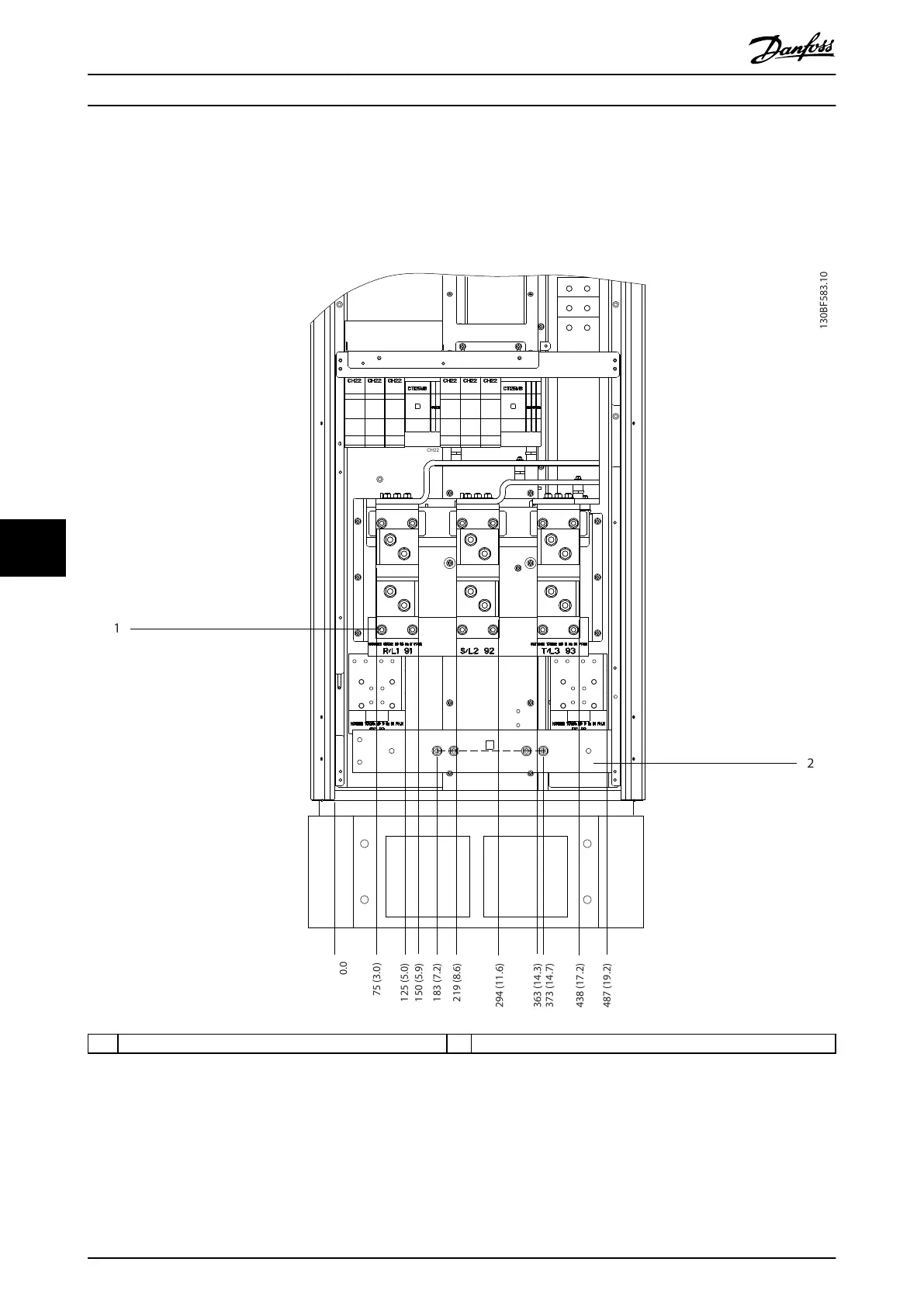

Illustration 8.28 Terminal Dimensions for F1–F4 Rectier Cabinet, Front View
Exterior and Terminal Dimen...
VLT
®
HVAC Drive FC 102
92 Danfoss A/S © 11/2017 All rights reserved. MG16C302
