Cable

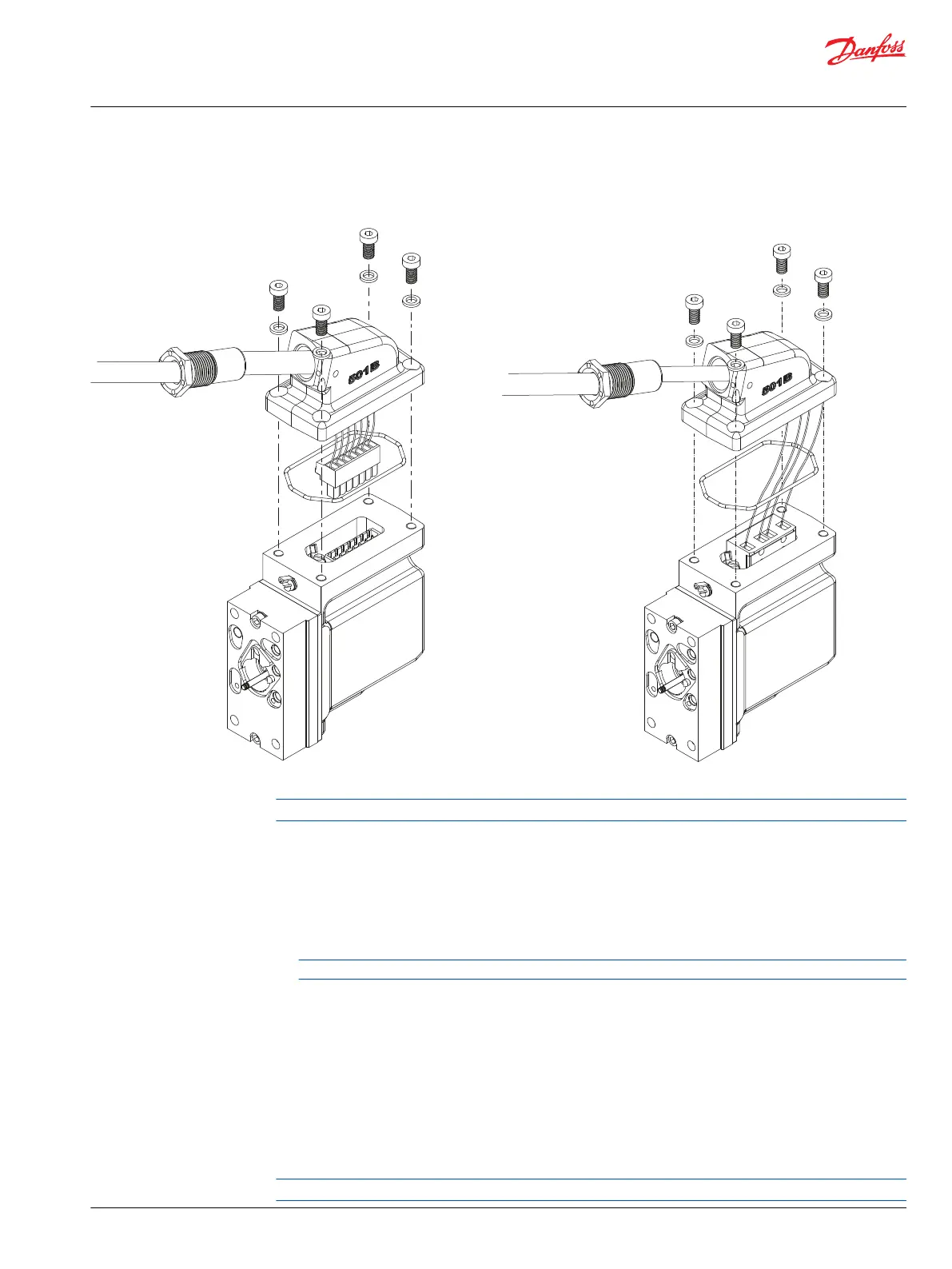

Mounting of cable, Group I (left) and Group II (right)
Use screws made from stainless steel grade A4 or stronger (enclosed).
Mounting of Cable
The PVE-EX is equipped with a top part that holds the cable gland for cable installation.
1. Remove the shield of an appropriate length to expose the wires.
If shield shall be connected to the earthing terminal, make sure to have shield enough to crimp into
the cable shoe and attach properly to the chassis.
Cable material must be according to the specification.
2. Strip the wires such that a suitable length of cooper is exposed.
3. Insert wires and cable through the gland and grommet.
4. Insert wires into screw terminals and tighten the screws.
5. Pull the cable back to the position where the cable jacket is still going through the grommet.
6. Immerse the terminal compartment and mate the male and female connector.
7. Ensure that the O-ring is properly seated in its groove and that excess wires are not trapped between
the two elements.
8. Tighten the screws to the specified torque 6 ± 1 N•m.
9. Tighten the gland to the specified torque in which the cable is locked correctly.
Use screws made from stainless steel grade A4 or stronger (enclosed).
