Nameplate Description (PVE-EX db version)

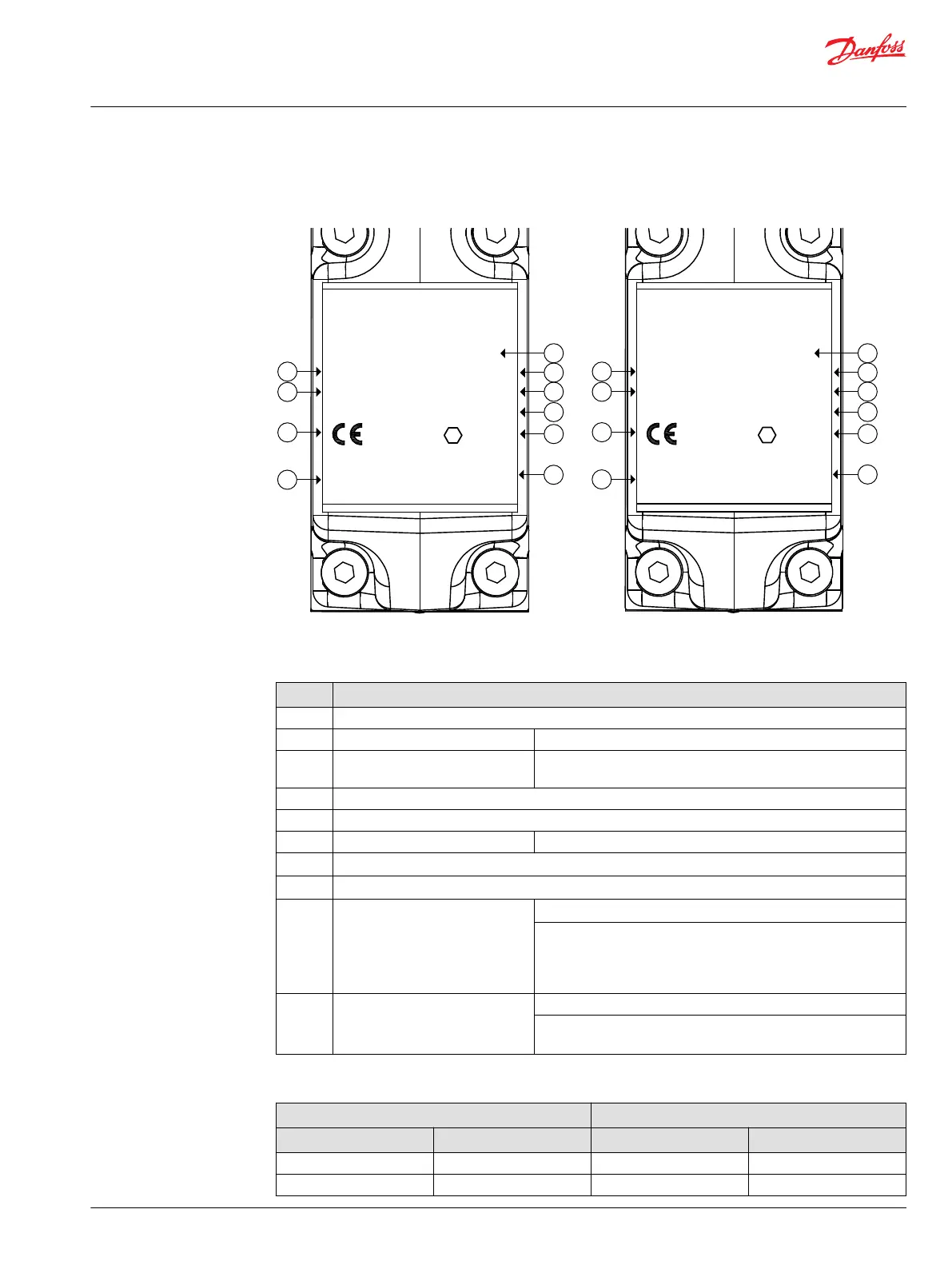

PVE-EX Ex db version, Group I (left) and Group II (right)
V310 459
Danfoss
6430 Nordborg, Denmark
Type PVEx-yy-EX
111xxxxx wwyyd47xxxx
Ta -40° to + 60°C xx-yyVDC
Ex db I Mb
0470
Ԑx
I M 2
Presafe 14ATEX5153X Thread:
IECEx PRE14.0008X "M20"
MA: J201408x
10
8
7
4
3
1
9
6
2
5
Danfoss
6430 Nordborg, Denmark
Type PVEx-yy-ZZ
111xxxxx wwyyd47xxxx
Ta -40° to + 60°C xx-yyVDC
Ex db IIB T5 Gb
0470 Ԑx
II 2G
Presafe 14ATEX5153X Thread:
IECEx PRE14.0008X "M20"
MA: J201408x
10
8
7
4
3
1
9
6
2
5
Nameplate legend
Number Description
1 PVE-EX type, see the table below.
2 Part Number Example: 111xxxxx
3
Production date and serial number
Example: 42 12 C xxxxxx
Week: 42 Year: 2012 Day: C=Wednesday (A=Monday) serial Number
4 Supply voltage
5 Ambient temperature range
6 Notified body Example: NEMKO/Presafe
7
IECEx Equipment Group and protection category X-marking
8
ATEX Equipment Group and protection category X-marking
9 Ex Certificate Number
Specific conditions for safe use (“X”-mark)
Originally supplied “SD cable glands” may not provide sufficient
clamping. User shall provide additional clamping of the cable to
ensure that pulling and twisting is not transmitted to the
terminations.
10 Thread Threaded entry: M20 x 1.5
Determined temperature at entry point is +76º C, use appropriate
cables and cable gland
PVE-EX Ex db types with part numbers, Group I and Group II
Group I Group II
Type Part No. Type Part No.
PVEO-EX-12V 11156462 PVEO-EX-24V 11156467
PVEO-EX-24V 11123165 PVEH-EX 11156463
Technical Information
Electrohydraulic Actuators PVE-EX
General information
©
Danfoss | October 2017 BC00000393en-US0102 | 7
