Overview
The PVG is a sectional spool valve stack with up to 12 individually controlled proportional valves. The PVG
with the PVE can be operated as single valves or several valves in cooperation. The oil flow out of the
work section (A- or B-port) can be controlled by a combination of the following:
•
PVE controlling the spool position using pilot oil pressure.
•
A handle (PVM) in mechanical interface with the spool.

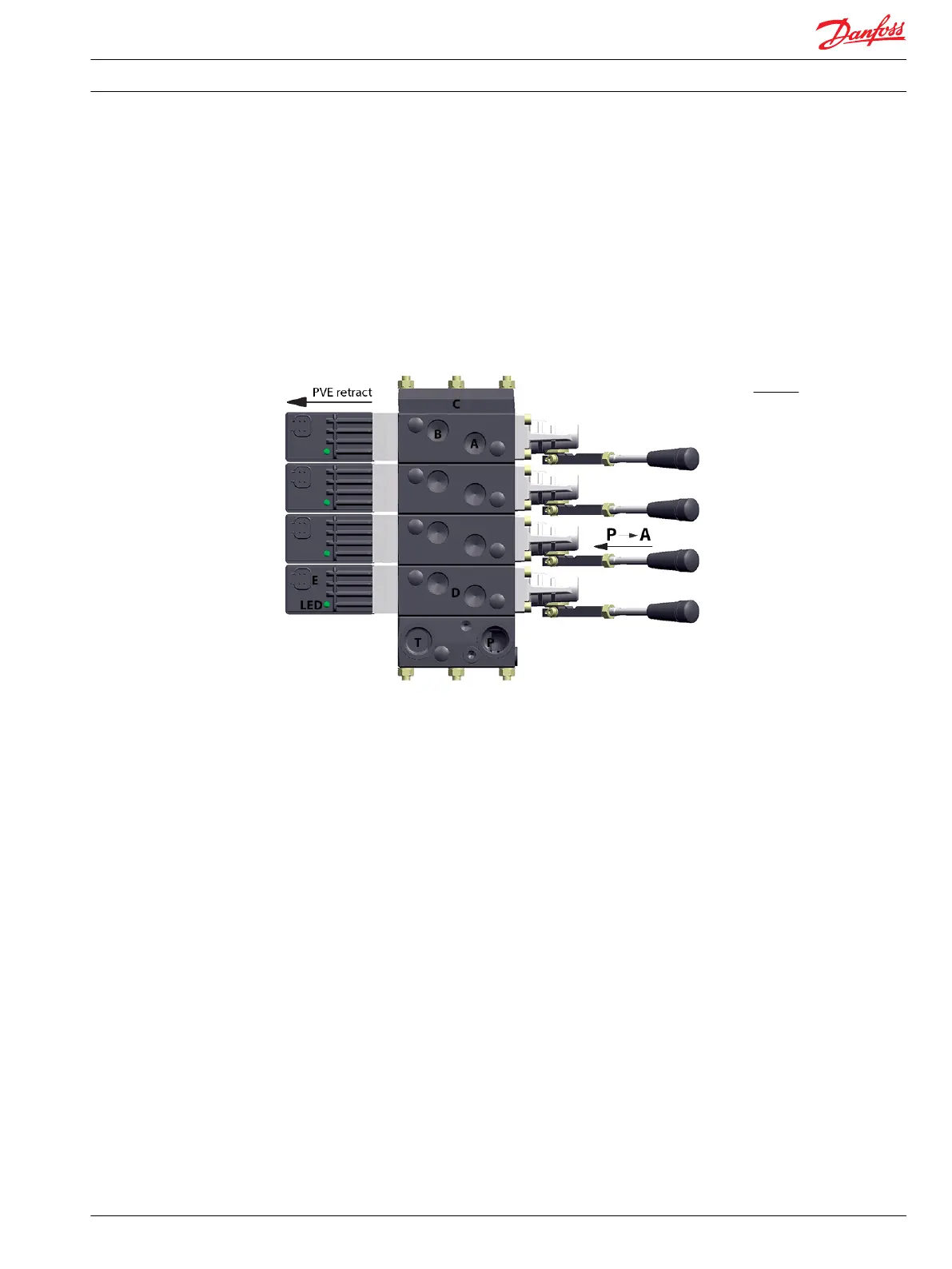

PVG 32 structural lay-out with naming
Legend:
A – A-port
B – B-port
C – PVS end plate
D – PVB basic module
E – Connector Pin
T – Tank port
P – Work flow
Technical Information PVE, Series 4 for PVG 32/100/120 and PVHC
General Information
520L0553 • Rev GD • Jan 2014 9
