★ = factory setting. ( ) = display text [ ] = value for use in communication via serial communication port
Programming
005 Max. value of user-defined readout
(CUSTOM READOUT )
Value:
0.01 - 999,999.99 ✭100.00
Function:
This parameter allows a choice of the max. value of
the user-defined readout. The value is calculated on
the basis of the present motor frequency and the unit
selected in parameter 006 Unit for user-defined
readout. The programmed value is reached when the
output frequency in parameter 202 Output frequency
high limit, f
MAX
is reached. The unit also decides
whether the ratio between output frequency and
readout is linear, square or cubed.
Description of choice:
Set the required value for max. output frequency.
006 Unit for user-defined readout
(CUST. READ. UNIT)
Value:
★ No unit
1
[0] GPM
1
[21]
%
1
[1] gal/s
1
[22]
rpm
1
[2] gal/min
1
[23]
ppm
1
[3] gal/h
1
[24]
pulse/s
1
[4] lb/s
1
[25]
l/s
1
[5] lb/min
1
[26]
l/min
1
[6] lb/h
1
[27]
l/h
1
[7] CFM
1
[28]
kg/s
1
[8] ft
3
/s
1
[29]
kg/min
1
[9] ft
3
/min
1
[30]
kg/h
1
[10] ft
3
/h
1
[31]
m
3
/s
1
[11] ft
3
/min
1
[32]
m
3
/min
1
[12] ft/s
1
[33]
m
3
/h
1
[13] in wg
2
[34]
m/s
1
[14] ft wg
2
[35]
mbar
2
[15] PSI
2
[36]
bar
2
[16] lb/in
2
[37]
Pa
2
[17] HP
3
[38]
kPa
2
[18]
MWG
2
[19]
kW
3
[20]

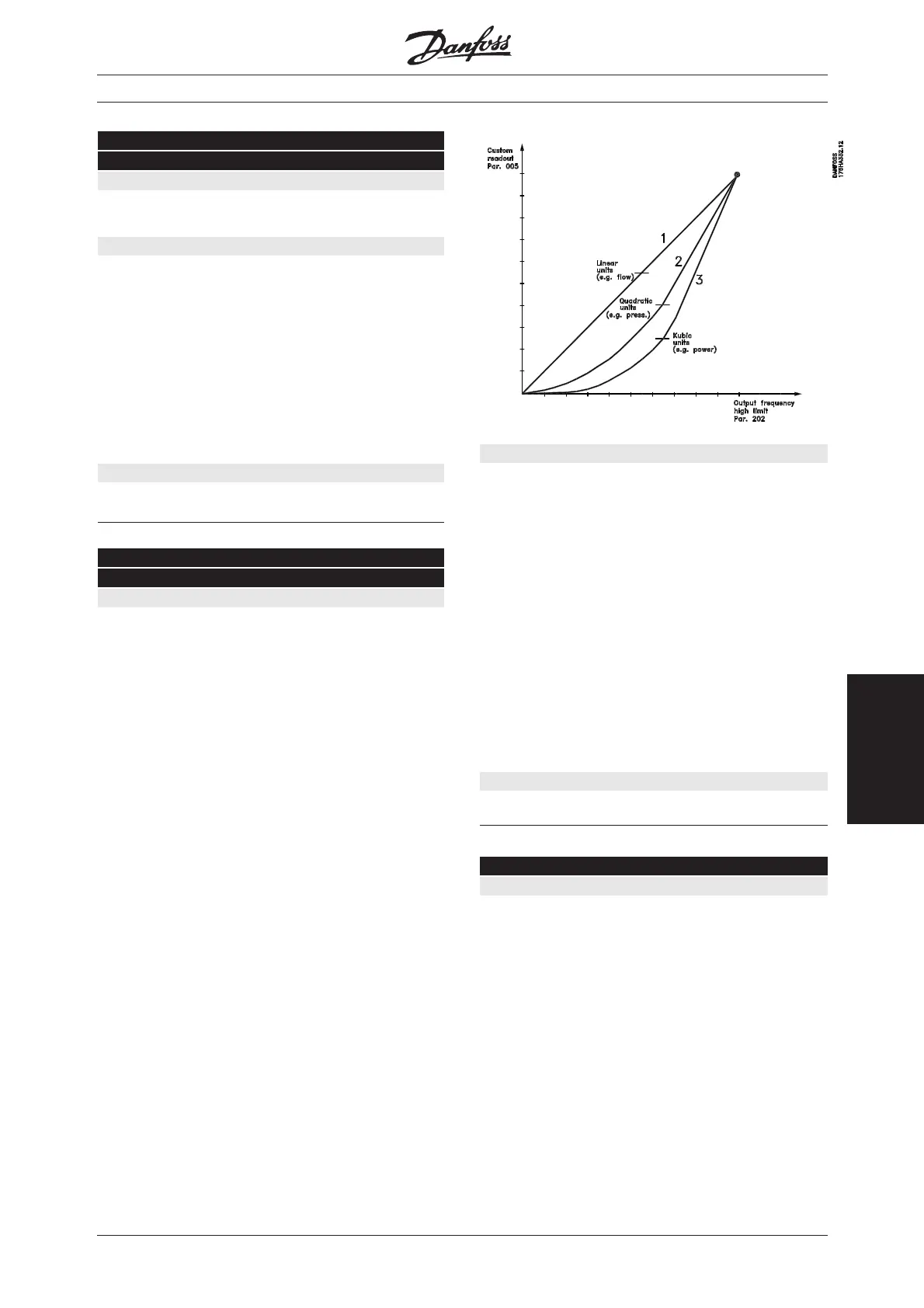

Flow and speed units are marked with 1. Pressure
units with 2, and power units with 3. See figure in
next column.
Function:
Select a unit to be shown in the display in connection
with parameter 005 Max. value of user-defined
readout.
If units such as flow or speed units are selected, the
ratio between readout and output frequency will be a
linear one.
If pressure units are selected (bar, Pa, MWG, PSI,
etc.), the ratio will be square.
If power units (kW, HP) are selected, the ratio will be
cubed.
The value and the unit are shown in display mode
whenever User-defined readout [10] has been
selected in one of parameters 007-010 Display
readout.
Description of choice:
Select the required unit for User-defined readout.
007 Large display readout (LARGE READOUT)
Value:
Resulting reference [%] (REFERENCE [%]) [1]
Resulting reference [unit] (REFERENCE [UNIT]) [2]
✭Frequency [Hz] (FREQUENCY [HZ]) [3]
% of maximum output frequency [%]
(FREQUENCY [%]) [4]
Motor current [A] (MOTOR CURRENT [A]) [5]
Power [kW] (POWER [KW]) [6]
Power [HP] (POWER [HP]) [7]
Output energy [kWh] (ENERGI [UNIT]) [8]
Hours run [Hours] (HOURS RUN [h]) [9]
User-defined readout [-]
(CUSTOM READ.[UNITS])) [10]
