VLT
®
6000 HVAC
76
★ = factory setting. ( ) = display text [ ] = value for use in communication via serial communication port
MG.60.B1.02 - VLT is a registered Danfoss trade mark
004 LCP copy (LCP COPY)
Value:
✭ No copying (NO COPY) [0]
Upload all parameters
(UPLOAD ALL PARAMET.) [1]
Download all parameters
(DOWNLOAD ALL PARAM.) [2]
Download power-independent par.
(DOWNLOAD SIZE INDEP.) [3]
Function:
Parameter 004 LCP copy is used if the integrated
copying function of the control panel is to be used.
This function is used if all parameter Setups are to be
copied from one VLT frequency converter to another
by moving the control panel.
Description of choice:
Select Upload all parameters [1] if all parameter values
are to be transmitted to the control panel.
Select Download all parameters [2] if all transmitted
parameter values are to be copied to the VLT
frequency converter on which the control panel has
been mounted.
Select Download power-independent par. [3] if only
the power-independent parameters are to be
downloaded. This is used if downloading to a VLT
frequency converter that has a different rated power
than the one from where the parameter Setup
originates.
NB!
Uploading/Downloading can only be carried
out in the Stop mode.
■■
■■
■ Setup of user-defined readout
Parameter 005 Max. value of user-defined readout
and 006 Unit for user-defined readout allow users to
design their own readout which can be seen if user-
defined readout has been selected under display
readout. The range is set in parameter 005 Max. value
of user-defined readout and the unit is determined in
parameter 006 Unit for user-defined readout. The
choice of unit decides whether the ratio between the
output frequency and the readout is a linear, square
or cubed ratio.

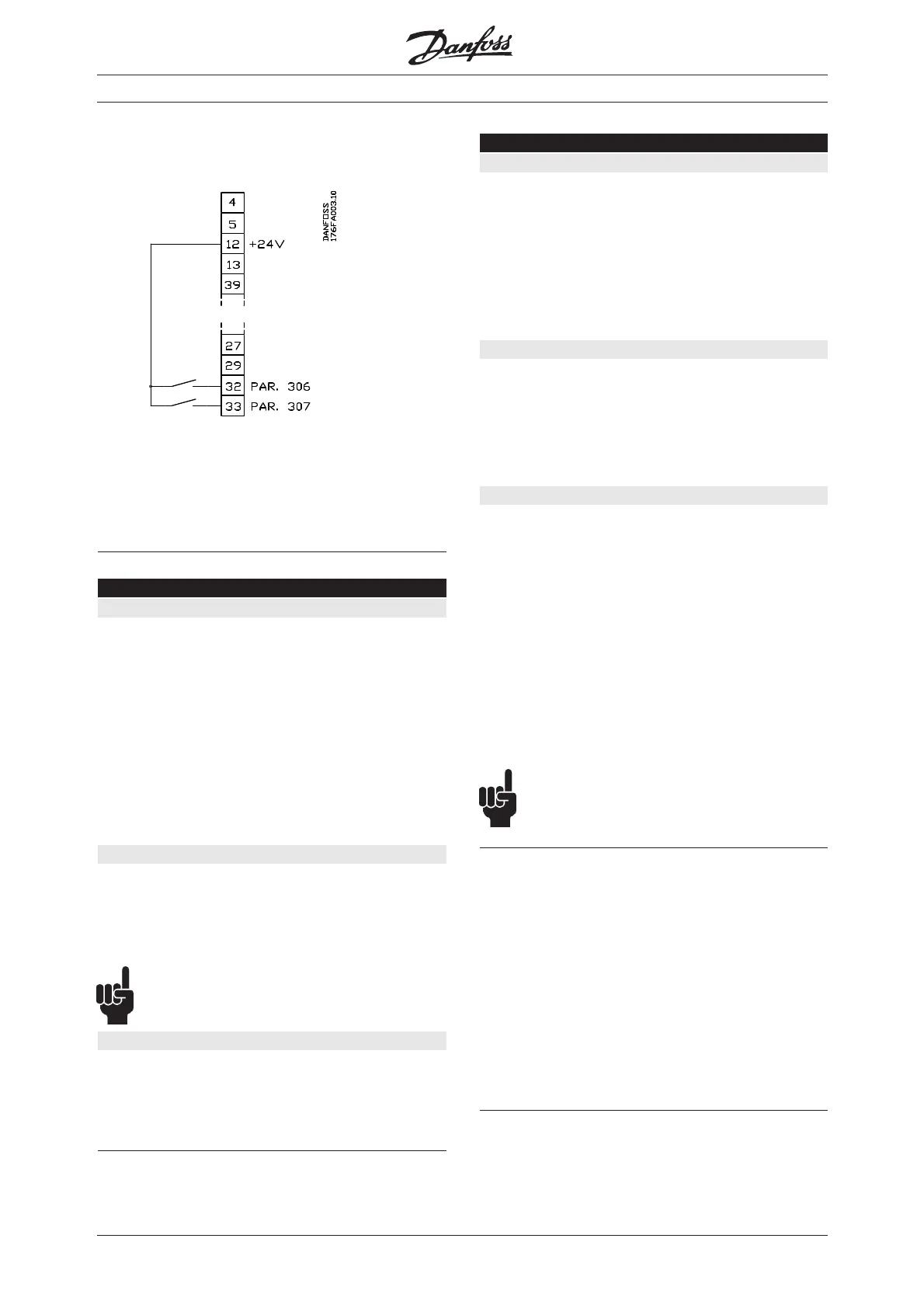

Connection examples
Setup change
- Selection of Setup using terminals 32 and 33.
Parameter 306 = Selection of Setup, lsb [4]
Parameter 307 = Selection of Setup, msb [4]
Parameter 004 = MultiSetup [5].
003 Copying of Setups (SETUP COPY)
Value:
✭ No copying (NO COPY) [0]
Copy active Setup to Setup 1
(COPY TO SETUP 1) [1]
Copy active Setup to Setup 2
(COPY TO SETUP 2) [2]
Copy active Setup to Setup 3
(COPY TO SETUP 3) [3]
Copy active Setup to Setup 4
(COPY TO SETUP 4) [4]
Copy active Setup to all (COPY TO ALL) [5]
Function:
A copy is made from the active Setup selected in
parameter 002 Active Setup to the Setup or Setups
selected in parameter 003 Copying of Setups.
NB!
Copying is only possible in Stop mode (motor
stopped on a Stop command).
Description of choice:
The copying starts when the required copying
function has been selected and the [OK] key has been
pressed.
The display indicates when copying is in progress.
