Danfoss VLT AAF006 Service Manual

1.10 Exploded Views

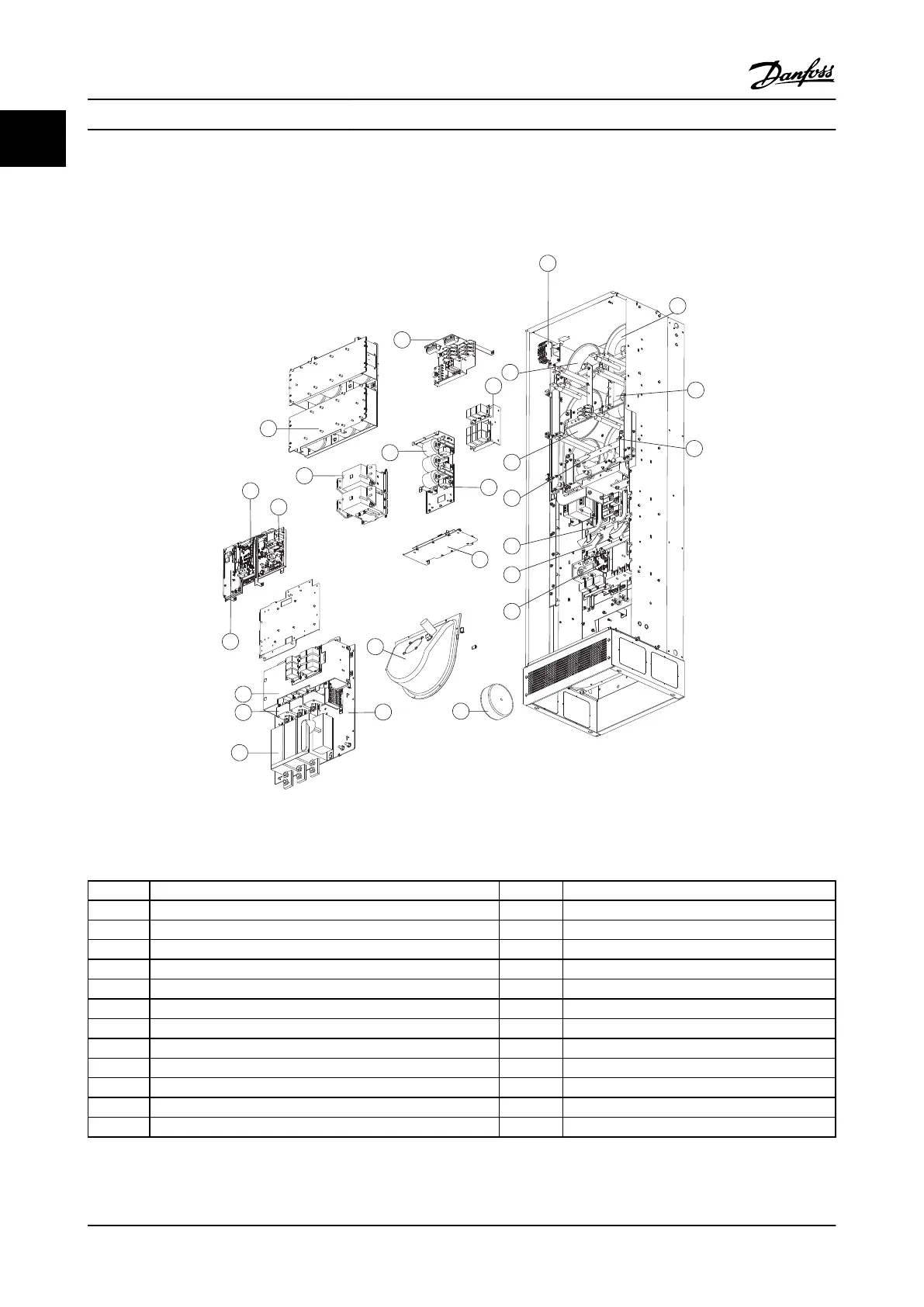

1.10.1 Exploded Views E-Frame
130BB925.10
24
25
26
18
19
20
21
22
23
1
2
3
6
5
4
7
11
10
8
16
9
15
12
13
14
17
Figure 1.1
1
Control card (not shown) 14 Fan transformer
2 Active filter card 15 Gate drive card
3 Power card 16 RFI circuit block
4 Input RFI (option) 17 IGBT module
5 Line power input fuse (option) 18 IGBT current sensor
6 Line power disconnect (option) 19 Damping resistors
7 Input terminal mounting plate 20 Cross bus bar
8 Line power contactor 21 DC link inductor
9 Lower capacitor bank assembly 22 DC link inductor
10 LCL capacitors 23 CT connection terminals
11 LCL capacitor current sensor 24 DC link inductor
12 Soft charge resistors, MOV, discharge card, and fuse assembly 25 DC link inductor
13 Fan 26 Bus bar retaining nut
Table 1.10
Introduction VLT Advanced Active Filter AAF006 D and E Frames Service Manual
1-6 MG90Z122 - VLT
®
is a registered Danfoss trademark
11
