7.2.9 MOVs
1
2
3
4
5
6
CNY65A
CNY65A
CNY65A
130BX416.10

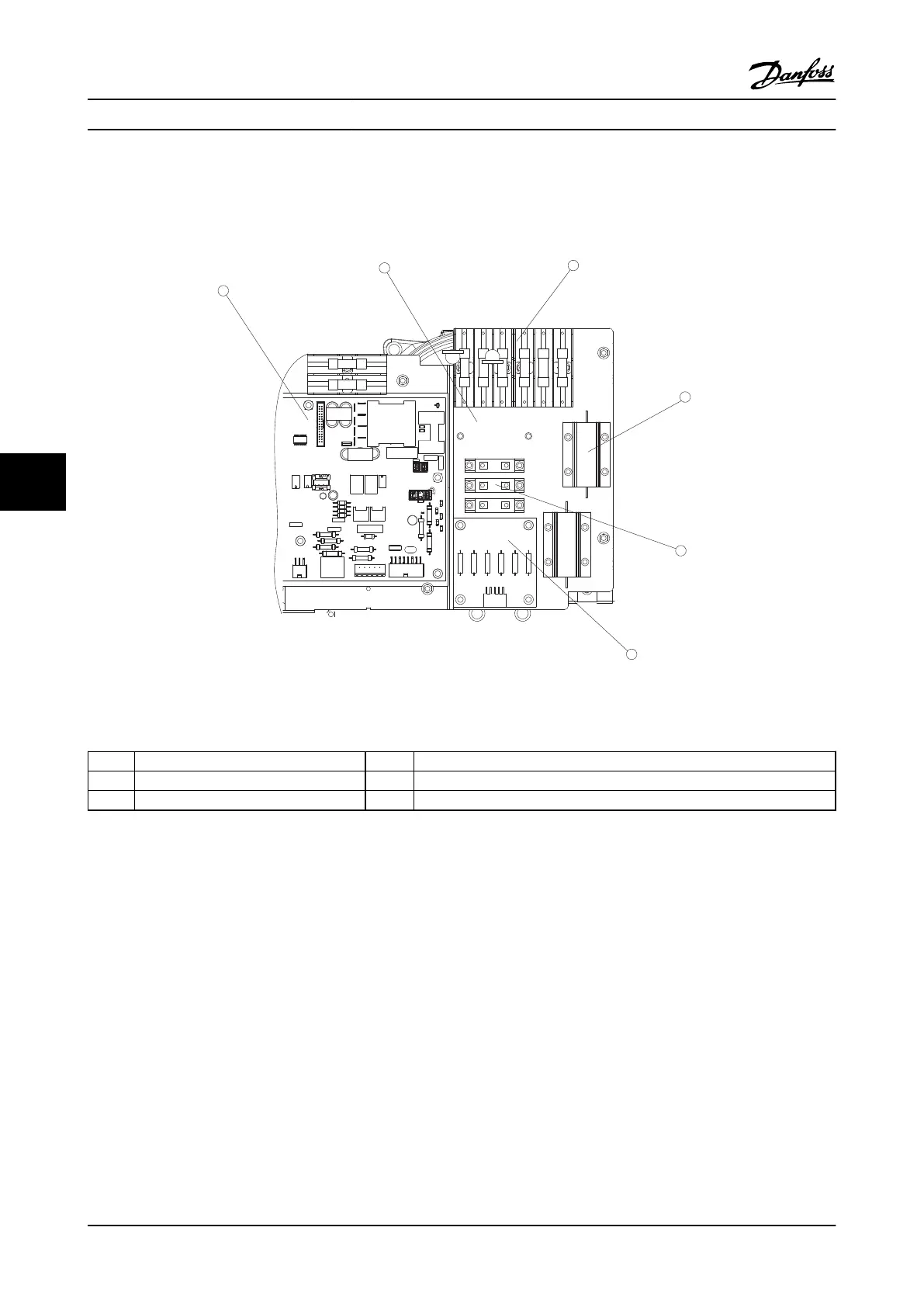

Figure 7.5 MOVs, Discharge Card, and Soft Charge Resistor
1
Power card 4 Soft charge resistor
2 Power card mounting plate 5 MOV
3 Fuse block 6 Discharge card
Table 7.5
1. Disconnect the wires from the terminals on the
right and left of the MOV by loosening the
retaining screws.
2. Remove the MOV by removing the two screws
(T-20) right and left.
Reinstall in the reverse order of this procedure. See
Table 1.7 for torque tightening values.
7.2.10 Discharge Card
1. Disconnect MK100 from the discharge card.
2. Remove the discharge card by removing the four
screws (T-25).
Reinstall in the reverse order of this procedure. See
Table 1.7 for torque tightening values.
7.2.11
Soft Charge Resistor
1. Disconnect the cable going to fuses FU14 and FU
15 and the AC contactors.
2. Remove the soft charge resistor by removing the
4 retaining nuts (0.30 in [7 mm]).
Reinstall in the reverse order of this procedure. See
Table 1.7 for torque tightening values.
D-Frame Sizes Disassembly a... VLT Advanced Active Filter AAF006 D and E Frames Service Manual
7-8 MG90Z122 - VLT
®
is a registered Danfoss trademark
77
