Danfoss VLT AAF006 Service Manual

7.2 Passive Section (Top) Instructions
1
2
3
4
5
6
7
8
9
10
130 414BX

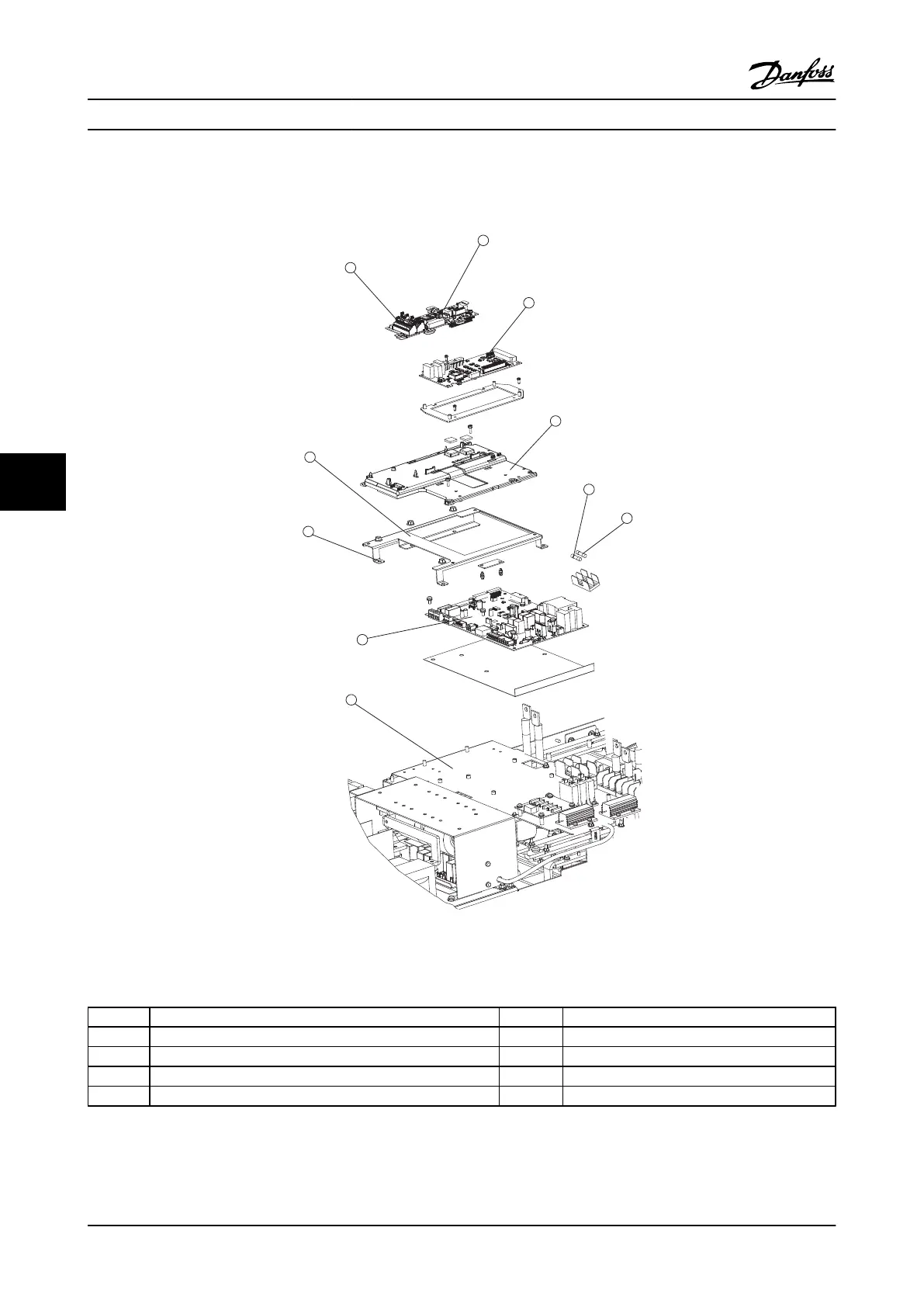

Figure 7.1 Control Card and Mounting Plate, Support Bracket, Active Filter Card, and Power Card and Mounting Plate
1
Control card terminal block 6 FU4
2 Control card 7 Power card mounting plate
3 Active filter (AAF) card 8 Power card
4 Control card mounting plate 9 Mounting nut
5 FU5 10 Control card assembly support bracket
Table 7.1
D-Frame Sizes Disassembly a... VLT Advanced Active Filter AAF006 D and E Frames Service Manual
7-2 MG90Z122 - VLT
®
is a registered Danfoss trademark
77
