Danfoss VLT AAF006 Service Manual

7.3.7 IGBT Modules
A
B
1
1
2
3
6
6
7
8
14
16
4
5
4
9
10
11
12
13
15
130BX419

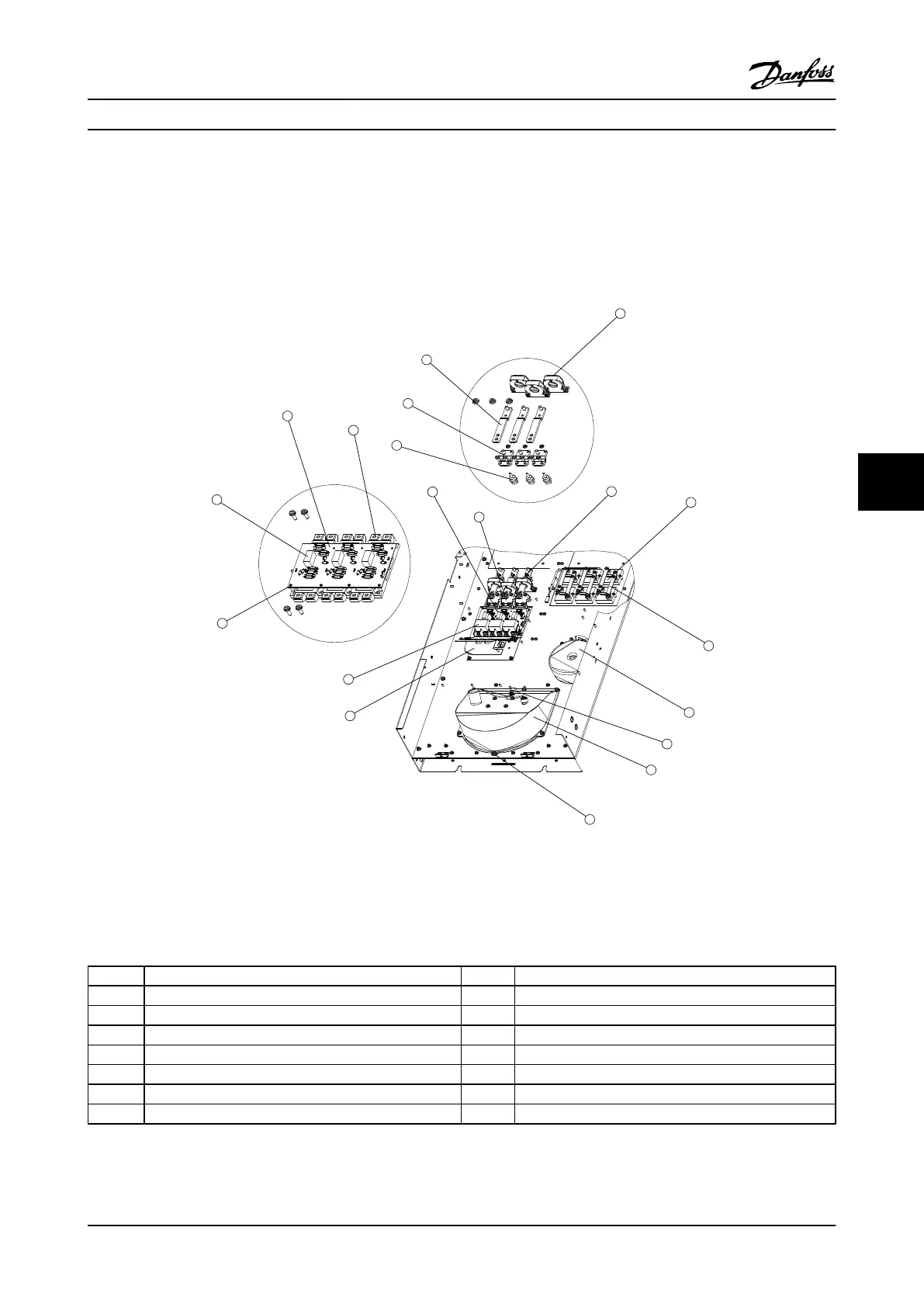

Figure 7.8 IGBT Modules, IGBT Current Sensors, Damping Resistors, Fan and Fan Transformer
1
IGBT module 9 Fan transformer
2 Retaining screw 10 Fan Molex connector
3 Current sensor standoff 11 Fan
4 IGBT intermediate bus bar 12 Retaining screw
5 Current sensor bus bar 13 DC bus assembly
6 Current sensor 14 Snubber capacitor
7 Damping resistor 15 Retaining screw
8 Damping resistor bus bar 16 MK100
Table 7.8
D-Frame Sizes Disassembly a... VLT Advanced Active Filter AAF006 D and E Frames Service Manual
MG90Z122 - VLT
®
is a registered Danfoss trademark 7-13
7 7
