7.2.4 Power Card
The power card may remain attached to the power card
mounting plate, if the power card mounting plate is to be
removed.
1. Remove the control assembly support bracket in
accordance with the procedure.
2. Unplug power card connectors MK102, MK103,
MK105, MK106, MK107 MK109, and both MK112
connectors.
3. Remove the 7 mounting screws (T-25) from the
power card.
4. Remove the power card from the plastic standoff
at the top right of the power card.
5. Remove the current scaling card from the power
card by pushing in the retaining clips on the
standoffs. KEEP THIS SCALING CARD FOR FUTURE
REINSTALLATION OF ANY REPLACEMENT POWER
CARD. The scaling card controls signals operating
with this specific filter. The scaling card is not
part of the replacement power card.
6. Retain power card insulation for reassembly.
Reinstall in the reverse order of this procedure. When
installing the power card, ensure that the insulator sheet is
installed behind the power card. See Table 1.7 for torque
tightening values.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
130BX172.10

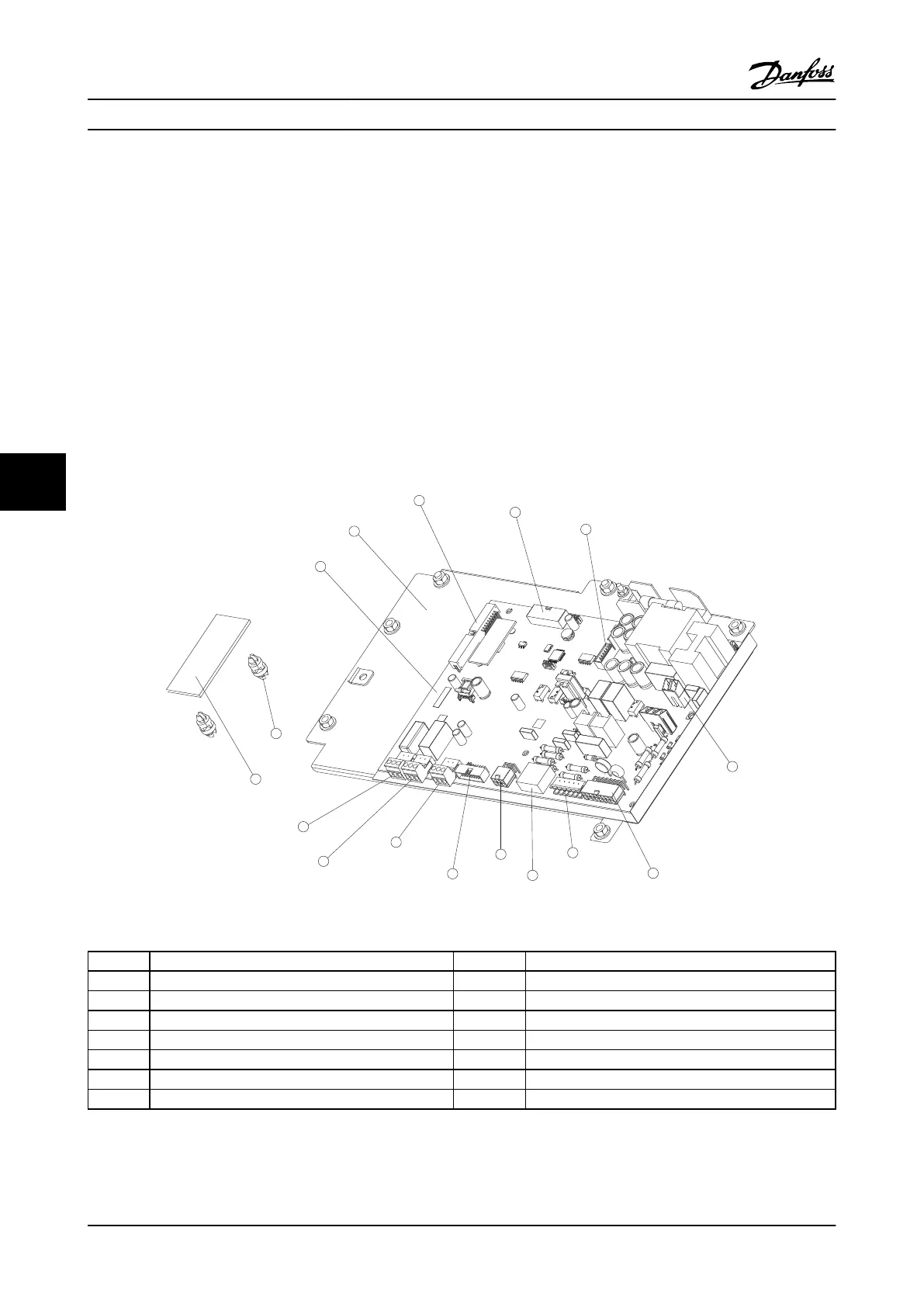

Figure 7.3 Power Card Terminals and Scaling Card
1
Power card PCA3 9 MK106
2 Mounting plate 10 MK100
3 MK110 11 MK109
4 MK102 12 FK102
5 MK104 13 MK112 terminals 4,5,6
6 MK105 14 MK112 terminals 1,2,3
7 MK107 15 Current scaling card PCA4
8 FK103 16 Current scaling card standoff
Table 7.3
D-Frame Sizes Disassembly a... VLT Advanced Active Filter AAF006 D and E Frames Service Manual
7-4 MG90Z122 - VLT
®
is a registered Danfoss trademark
77
