Danfoss VLT AAF006 Service Manual

8.3.5 Lower Capacitor Bank Assembly
1
2
3
3
3
4
4
4
5
6
130BX411

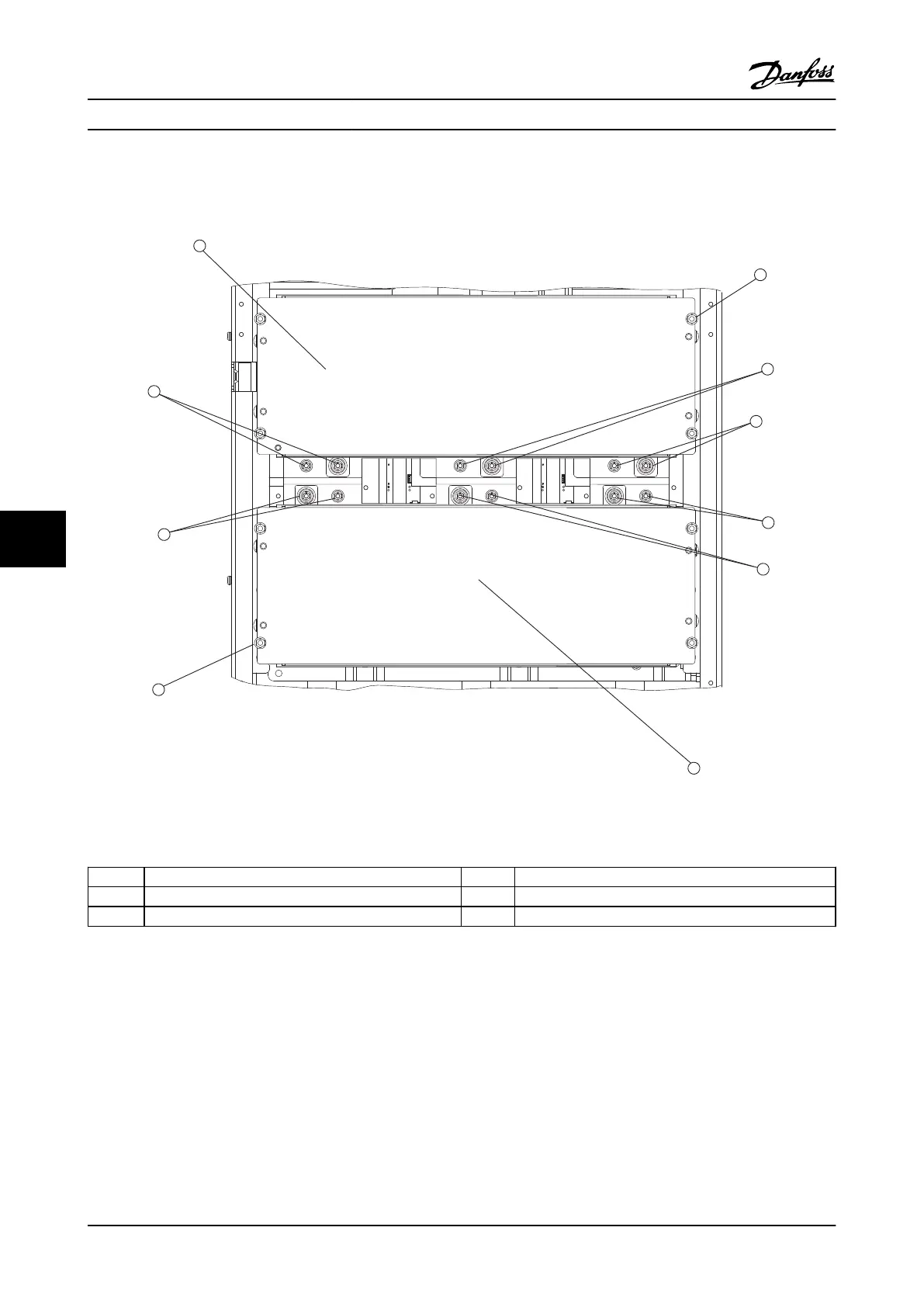

Figure 8.11 Lower Capacitor Bank Assembly
1
Upper capacitor bank 4 Lower capacitor bank electrical connection nut
2 Upper capacitor bank retaining nut 5 Lower capacitor bank
3 Upper capacitor bank electrical connection nut 6 Lower capacitor bank retaining nut
Table 8.11
1. Remove the input terminal mounting plate in
accordance with the procedure.
2. Remove the input terminal mounting plate
support bracket by removing four nuts (0.39 in
[10 mm]).
3. The capacitor bank connection to the DC bus
bars can be seen recessed in the gap between
the upper and lower capacitor banks. A minimum
extension of 6 in [150 mm] is required. Remove
the six electrical connection nuts (0.32 in [8 mm])
for the lower capacitor bank on the DC bus bars.
4. Note that the weight of the capacitor bank is
approximately 20 lbs [9 kg].
5. Remove the capacitor bank (with attached cover
plate) by removing the four screws (T-30).
Reinstall in the reverse order of this procedure. See
Table 1.7 for torque tightening values.
E-Frame Sizes Disassembly a... VLT Advanced Active Filter AAF006 D and E Frames Service Manual
8-14 MG90Z122 - VLT
®
