Danfoss VLT AHF 005 Operating Instructions

2
5
6
4, 8, 9
130BA861.11
1
1) External Temperature Monitoring 6) Motor
2) AUX Relay U V W
01 02 03 96 97 98
04 05 06 T1 T2 T3
3) NAMUR 7) NAMUR Fuse. See fuse tables for part numbers
4) AUX Fan 8) Fan Fuses. See fuse tables for part numbers
100 101 102 103 9) SMPS Fuses. See fuse tables for part numbers
L1 L2 L1 L2
5) Brake
-R +R
81 82

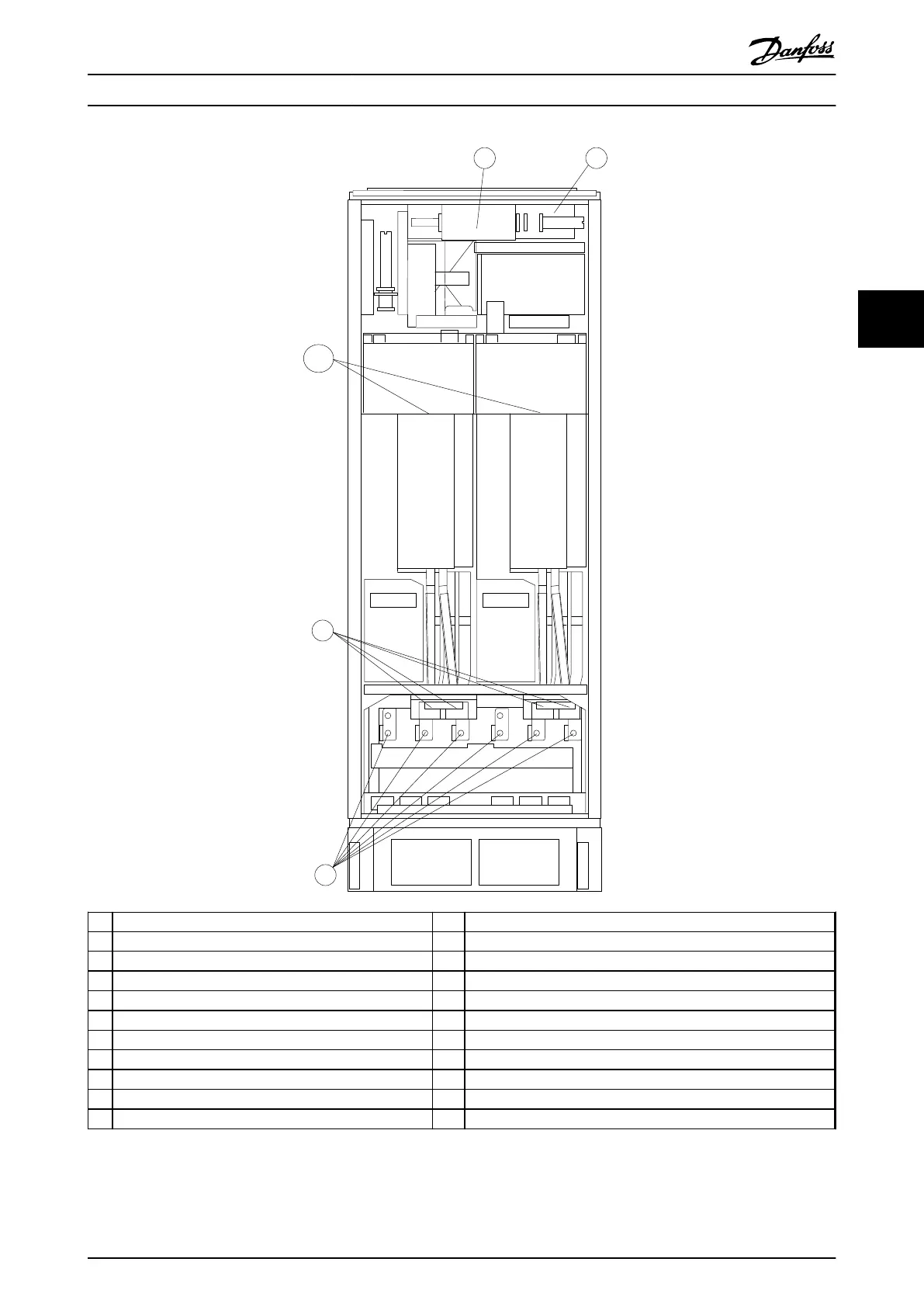

Illustration 4.13 Inverter Cabinet, Enclosure Types F1 and F3
Electrical Installation
VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 53
4 4
