Danfoss VLT AHF 005 Operating Instructions

3
5
U/T1 96
FASTENER TORQUE: M10 19 Nm (14 FT-LB)
V/T2 97 W/T3 98 U/T1 96
FASTENER TORQUE: M10 19 Nm (14 FT-LB)
V/T2 97 W/T3 98 U/T1 96
FASTENER TORQUE: M10 19 Nm (14 FT-LB)
V/T2 97 W/T3 98
6
4, 8, 9
2
1
7
130BA862.12
1) External Temperature Monitoring 6) Motor
2) AUX Relay U V W
01 02 03 96 97 98
04 05 06 T1 T2 T3
3) NAMUR 7) NAMUR Fuse. See fuse tables for part numbers
4) AUX Fan 8) Fan Fuses. See fuse tables for part numbers
100 101 102 103 9) SMPS Fuses. See fuse tables for part numbers
L1 L2 L1 L2
5) Brake
-R +R
81 82

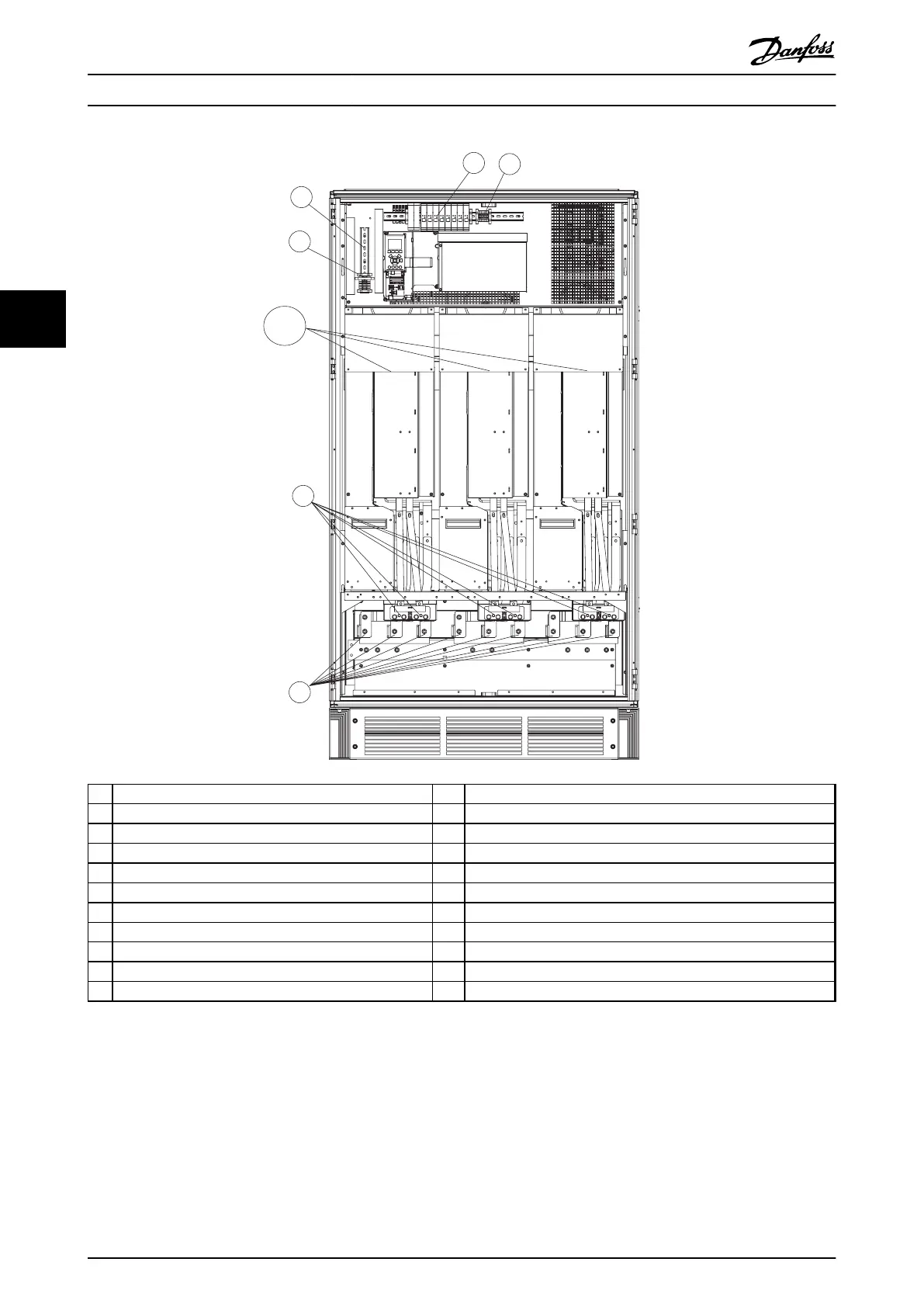

Illustration 4.14 Inverter Cabinet, Enclosure Types F2 and F4
Electrical Installation
VLT HVAC Drive FC 102 Operating Instructions
54 MG11F402 - Rev. 2013-12-16
