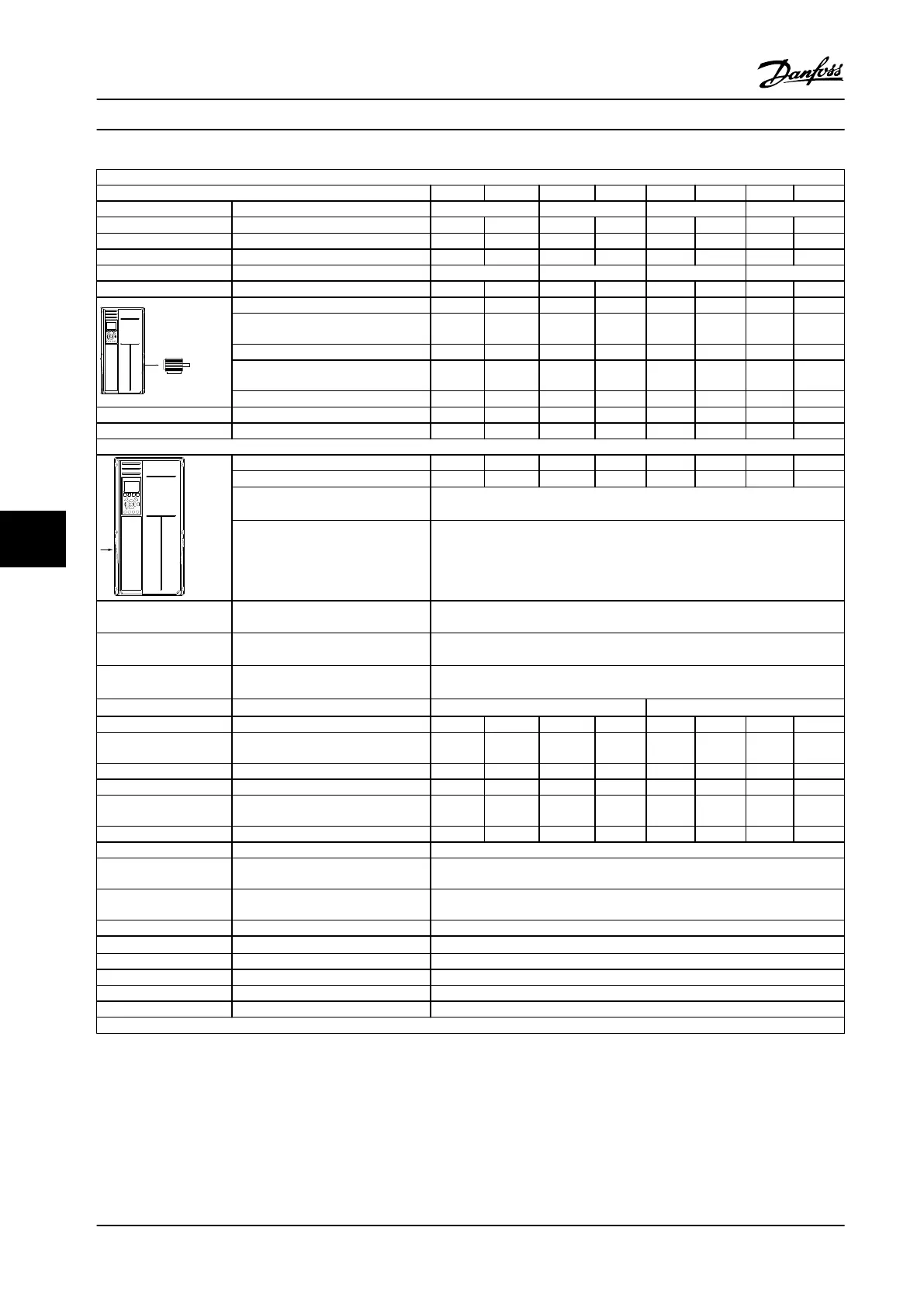

Danfoss VLT AQUA Drive FC 202 Installation Manual

Mains supply 3x380–480 V AC
High/normal load* HO NO HO NO HO NO HO NO
P500 P560 P630 P710
Typical shaft output at 400 V [kW] 450 500 500 560 560 630 630 710
Typical shaft output at 460 V [HP] 600 650 650 750 750 900 900 1000
Typical shaft output at 480 V [kW] 530 560 560 630 630 710 710 800
Enclosure protection rating IP21, 54 F18 F18 F18 F18
Output current
130BA230.10
Continuous (at 400 V) [A] 800 880 880 990 990 1120 1120 1260
Intermittent (60 s overload)
(at 400 V) [A]
1200 968 1320 1089 1485 1232 1680 1386
Continuous (at 460/480 V) [A] 730 780 780 890 890 1050 1050 1160
Intermittent (60 s overload) (at
460/480 V) [A]
1095 858 1170 979 1335 1155 1575 1276
Continuous KVA (at 400 V) [KVA] 554 610 610 686 686 776 776 873
Continuous KVA (at 460 V) [KVA] 582 621 621 709 709 837 837 924
Continuous KVA (at 480 V) [KVA] 632 675 675 771 771 909 909 1005
Maximum input current
130BA229.10
Continuous (at 400 V)[A] 779 857 857 964 964 1090 1090 1227
Continuous (at 460/480 V) [A] 711 759 759 867 867 1022 1022 1129
Maximum cable size, motor [mm
2
(AWG
2)
)]
8x150
(8x300 mcm)
Maximum cable size, mains F1/F2
[mm
2
(AWG
2)
)]
8x240
(8x500 mcm)
Maximum cable size, mains F3/F4
[mm
2
(AWG
2)
)]
8x456
(8x900 mcm)
Maximum cable size, loadsharing
[mm
2
(AWG
2)
)]
4x120
(4x250 mcm)
Maximum cable size, brake [mm
2
(AWG
2)
)
4x185
(4x350 mcm)
Maximum external mains fuses [A]
1)
1600 2000
Total LHD loss 400 V AC [kW] 20077 21909 21851 24592 23320 26640 26559 30519
Total backchannel loss 400 V AC
[kW]
16242 17767 17714 19984 18965 21728 21654 24936
Total lter loss 400 V AC [kW] 11047 11747 11705 12771 12670 14128 14068 15845
Total LHD loss 460 V AC [kW] 18855 19896 19842 22353 21260 25030 25015 27989
Total backchannel loss 460 V AC
[kW]
15260 16131 16083 18175 17286 20428 20417 22897
Total lter loss 460 V AC [kW] 10643 11020 10983 11929 11846 13435 13434 14776
Maximum panel options losses 400
Weight, enclosure protection
ratings IP21, IP54 [kg]
2009
Weight frequency converter section
[kg]
1004
Weight lter section [kg] 1005
Eciency
4)
0.96
Acoustic noise 69 dBa
Output frequency 0–600 Hz
Heat sink overtemperature trip 105 °C
Power card ambient trip 85 °C
* High overload = 160% current for 60 s, normal overload = 110% current for 60 s.
Table 8.3 F-frame Ratings
