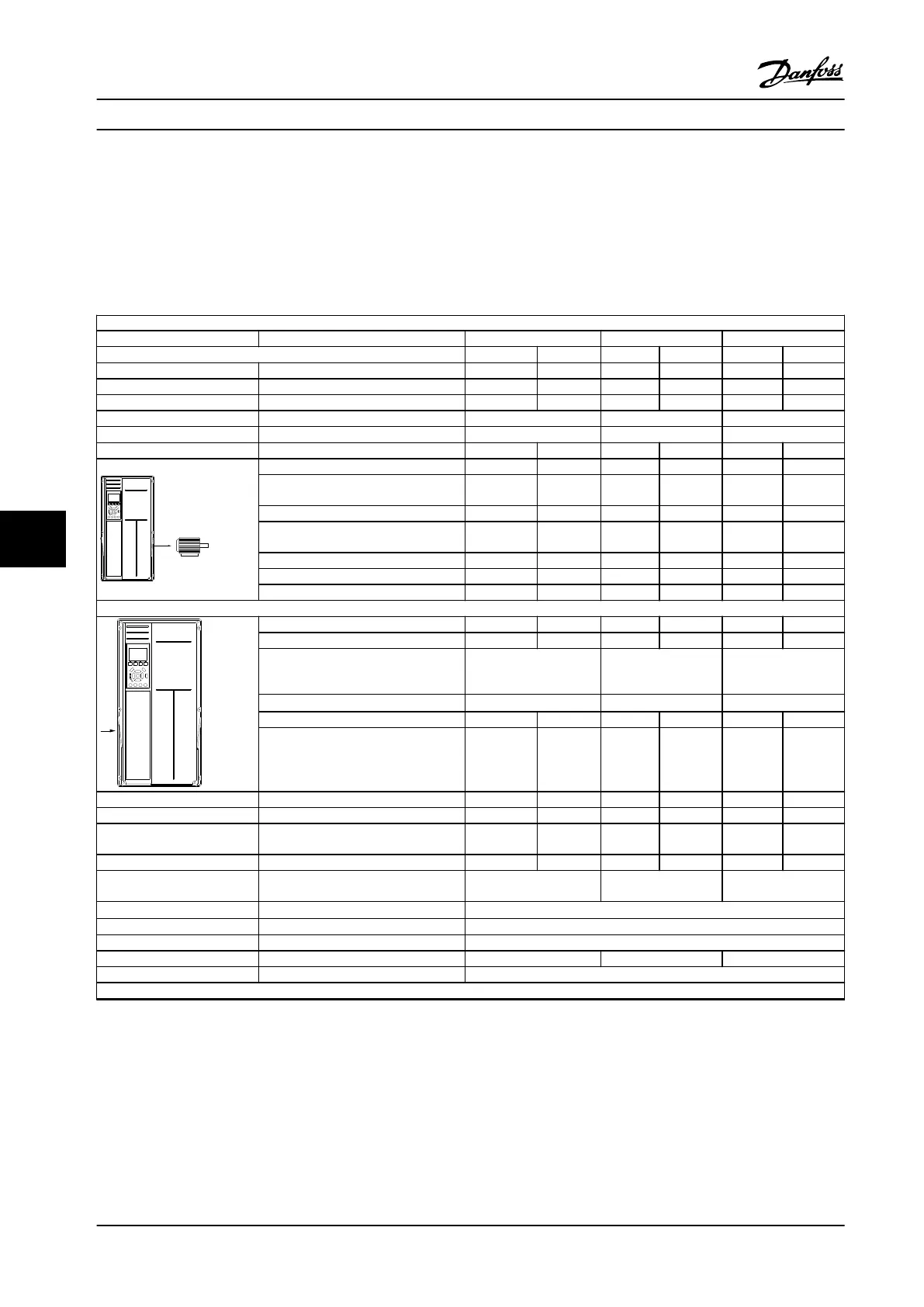

8 Specications
8.1 Power-Dependent Specications
8.1.1 Mains Supply 3x380–480 V AC
Mains supply 3x380–480 V AC
N160 N200 N250
High/normal load* HO NO HO NO HO NO
Typical shaft output at 400 V [kW] 132 160 160 200 200 250
Typical shaft output at 460 V [HP] 200 250 250 300 300 350
Typical shaft output at 480 V [kW] 160 200 200 250 250 315
Enclosure protection rating IP21 D1n D2n D2n
Enclosure protection rating IP54 D1n D2n D2n
Output current
Continuous (at 400 V) [A] 260 315 315 395 395 480
Intermittent (60 s overload) (at 400
V) [A]
390 347 473 435 593 528
Continuous (at 460/480 V) [A] 240 302 302 361 361 443
Intermittent (60 s overload) (at
460/480 V) [A]
360 332 453 397 542 487
Continuous KVA (at 400 V) [KVA] 180 218 218 274 274 333
Continuous KVA (at 460 V) [KVA] 191 241 241 288 288 353
Continuous KVA (at 480 V) [KVA] 208 262 262 313 313 384
Maximum input current
Continuous (at 400 V ) [A] 251 304 304 381 381 463
Continuous (at 460/480 V) [A] 231 291 291 348 348 427
Maximum cable size, mains motor,
brake, and load share [mm
2
(AWG
2)
)]
Motor, brake and load
share: 2x95 (2x3/0)
Mains: 2x185 (2x350)
2x185
(2x350 mcm)
2x185
(2x350 mcm)
Maximum external mains fuses [A]
1
400 550 630
Total LHD loss 400 V AC [kW] 7428 8725 8048 9831 9753 11371
Total back channel loss 400 V AC
[kW]
6302 7554 6877 8580 8503 10020
Total lter loss 400 V AC [kW] 4505 4954 4954 5714 5714 6234
Total LHD loss 460 V AC [kW] 7490 8906 7875 9046 8937 10626
Total back channel loss 460 V AC
[kW]
5974 7343 6274 7374 7338 8948
Total lter loss 460 V AC [kW] 3604 4063 3751 4187 4146 4822
Weight, enclosure protection
rating IP21, IP54 [kg]
352 413 413
Eciency
4)
0.96
Acoustic noise 85 dBa
Output frequency 0–590 Hz
Heat sink overtemperature trip 105 °C 105 °C 105 °C
Power card ambient trip 85 °C
* High overload = 150% current for 60 s, normal overload = 110% current for 60 s.
Table 8.1 D-frame Ratings
Specications
VLT
®
AQUA Drive FC 202 Low Harmonic Drive
82 Danfoss A/S © 10/2015 All rights reserved. MG21B322
