Danfoss VLT AQUA Drive FC 202 Installation Manual

6 Application Examples
6.1 Introduction
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
parameter 0-03 Regional Settings).
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
Required switch settings for analog terminals A53
or A54 are also shown.
NOTICE!
When using the optional STO feature, a jumper wire may
be required between terminal 12 (or 13) and terminal 37
for the frequency converter to operate with factory
default programming values.
NOTICE!
The following examples refer only to the frequency
converter control card (right LCP), not the lter.

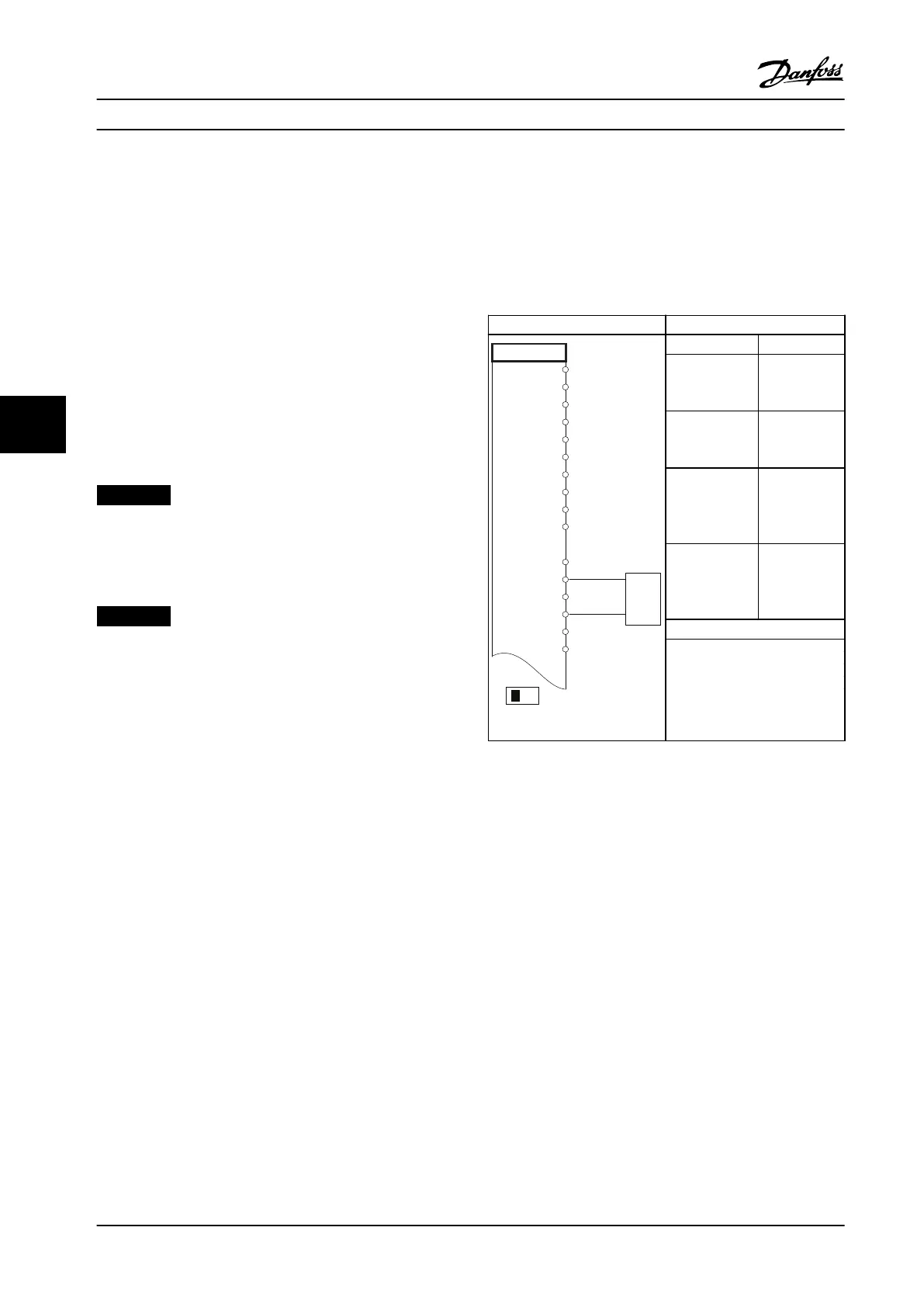

6.2 Application Examples
6.2.1 Speed
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A53
U - I
-10 - +10V
+
-
130BB926.10
Function Setting
Parameter 6-10
Terminal 53
Low Voltage
0.07 V*
Parameter 6-11
Terminal 53
High Voltage
10 V*
Parameter 6-14
Terminal 53
Low Ref./Feedb.
Value
0 RPM
Parameter 6-15
Terminal 53
High Ref./
Feedb. Value
1500 RPM
* = Default Value
Notes/comments:
D IN 37 is an option.
Table 6.1 Analog Speed Reference (Voltage)
Application Examples
VLT
®
AQUA Drive FC 202 Low Harmonic Drive
60 Danfoss A/S © 10/2015 All rights reserved. MG21B322
6
6
