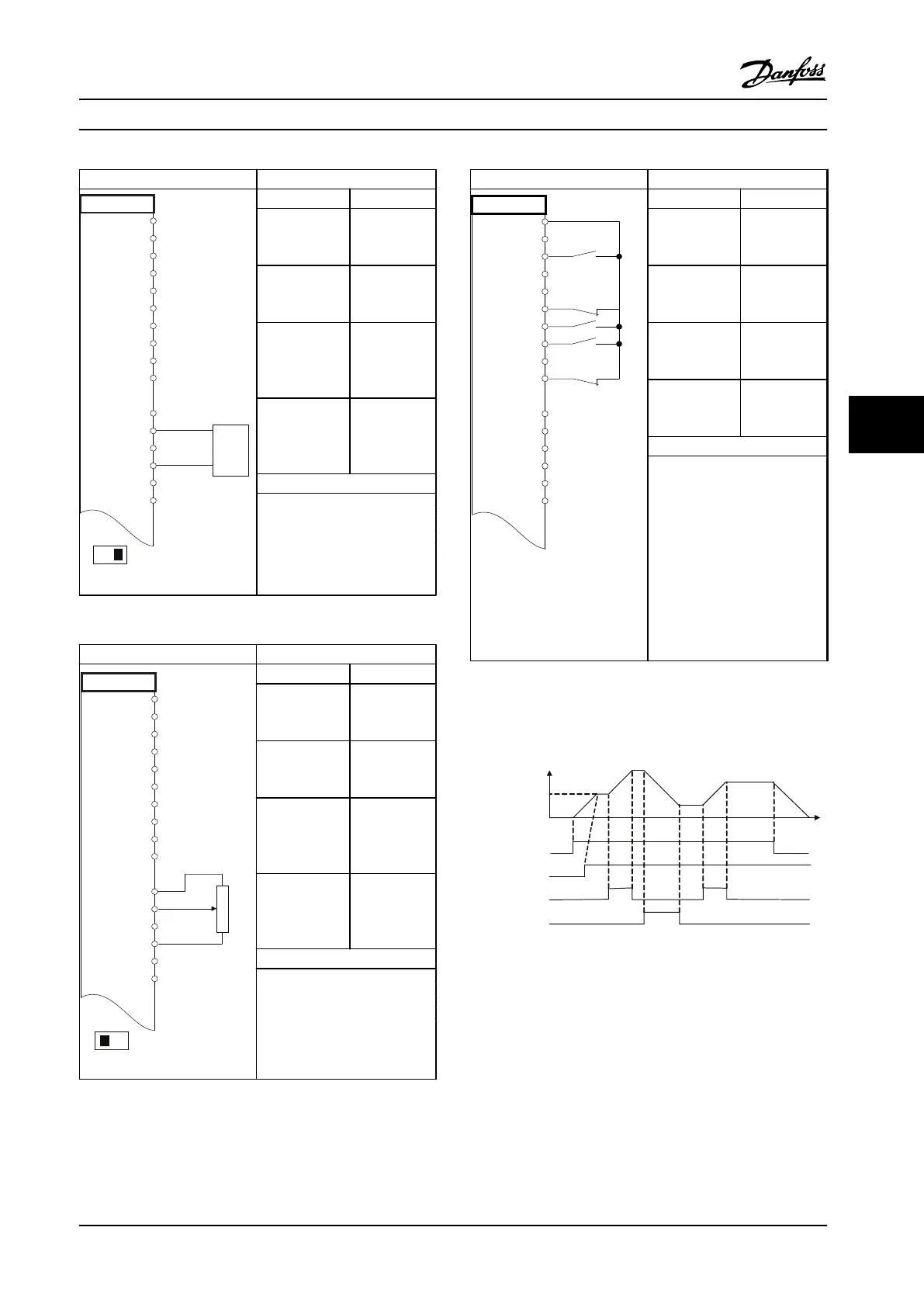

Danfoss VLT AQUA Drive FC 202 Installation Manual

Parameters
130BB927.10
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A53
U - I
4 - 20mA
+
-
Function Setting
Parameter 6-12
Terminal 53
Low Current
4 mA*
Parameter 6-13
Terminal 53
High Current
20 mA*
Parameter 6-14
Terminal 53
Low Ref./Feedb.
Value
0 RPM
Parameter 6-15
Terminal 53
High Ref./
Feedb. Value
1500 RPM
* = Default Value
Notes/comments:
D IN 37 is an option.
Table 6.2 Analog Speed Reference (Current)
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A53
U - I
≈ 5kΩ
130BB683.10
Function Setting
Parameter 6-10
Terminal 53
Low Voltage
0.07 V*
Parameter 6-11
Terminal 53
High Voltage
10 V*
Parameter 6-14
Terminal 53
Low Ref./Feedb.
Value
0 RPM
Parameter 6-15
Terminal 53
High Ref./
Feedb. Value
1500 RPM
* = Default Value
Notes/comments:
D IN 37 is an option.
Table 6.3 Speed Reference (using a Manual Potentiometer)
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
130BB804.10
Function Setting
Parameter 5-10
Terminal 18
Digital Input
[8] Start*
Parameter 5-12
Terminal 27
Digital Input
[19] Freeze
Reference
parameter 5-13
Terminal 29
Digital Input
[21] Speed Up
parameter 5-14
Terminal 32
Digital Input
[22] Slow
* = Default Value
Notes/comments:
D IN 37 is an option.
Table 6.4 Speed Up/Down
Start (18)
Freeze ref (27)
Speed up (29 )
Speed down ( 32 )
Speed
Reference
130BB840.11
Figure 6.1 Speed Up/Down
