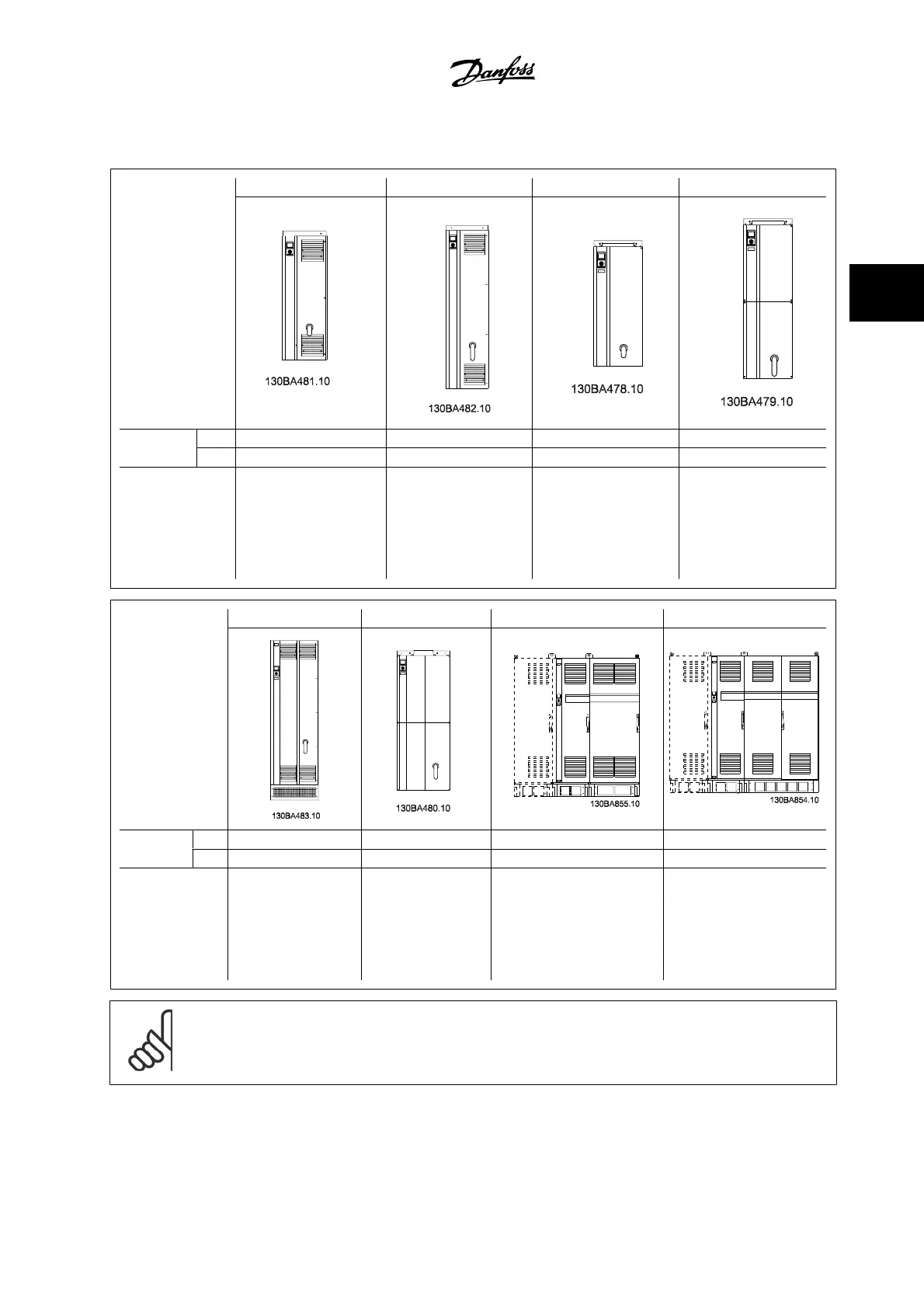

3.2.6 Rated Power
Frame size D1 D2 D3 D4
Enclosure
protection
IP 21/54 21/54 00 00
NEMA Type 1/ Type 12 Type 1/ Type 12 Chassis Chassis
Normal overload
rated power - 110%
overload torque
110 - 132 kW at 400 V
(380 - 480 V)
60–250 HP [45–160 kW] at
690 V
(525–690 V)
200–350 HP [150–250 kW] at
400 V
(380–480 V)
300–550 HP [200–400 kW] at
690 V
(525–690 V)
150–175 HP [110–132 kW] at
400 V
(380–480 V)
60–250 HP [45–160 kW] at
690 V
(525–690 V)
175–350 HP [150–250 kW] at
400 V
(380–480 V)
300–550 HP [200–400 kW] at
690 V
(525–690 V)
Frame size E1 E2 F1/F3 F2/F4
Enclosure
protection
IP 21/54 00 21/54 21/54
NEMA Type 1/ Type 12 Chassis Type 1/ Type 12 Type 1/ Type 12
Normal overload
rated power -
110% overload
torque
450–600 HP [315–450 kW]
at 400 V
(380–480 V)
600–850 HP [450–630 kW]
at 690 V
(525–690 V)
450–600 HP [315–450
kW] at 400 V
(380–480 V)
600–850 HP [450–630
kW] at 690 V
(525–690 V)
675–950 HP [500–710 kW] at 400
V
(380–480 V)
950–1200 HP [710–900 kW] at 690
V
(525–690 V)
1075–1350 HP [800–1000 kW] at
400 V
(380–480 V)
1350–1600 HP [1000–1200 kW]
at 690 V
(525–690 V)
NOTE!
The F frames have four different sizes, F1, F2, F3 and F4 The F1 and F2 consist of an inverter cabinet on the right and rectifier cabinet
on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an F1 with an additional options
cabinet. The F4 is an F2 with an additional options cabinet.
VLT AQUA High Power Instruction Manual 3 How to Install
MG.20.P3.22 - VLT
®
is a registered Danfoss trademark
3-13
