3-10 Preset Reference
Array [8]
Range: 0-7
Range: Function:
0.00 %* [-100.00 - 100.00 %] Enter up to eight different preset references (0-7) in this parameter, using array programming. The
preset reference is stated as a percentage of the value Ref
MAX
(par. 3-03 Maximum Reference ) If a
Ref
MIN
different from 0 (par. 3-02 Minimum Reference ) is programmed, the preset reference is
calculated as a percentage of the full reference range, i.e. on the basis of the difference between
Ref
MAX
and Ref
MIN
. Afterwards, the value is added to Ref
MIN

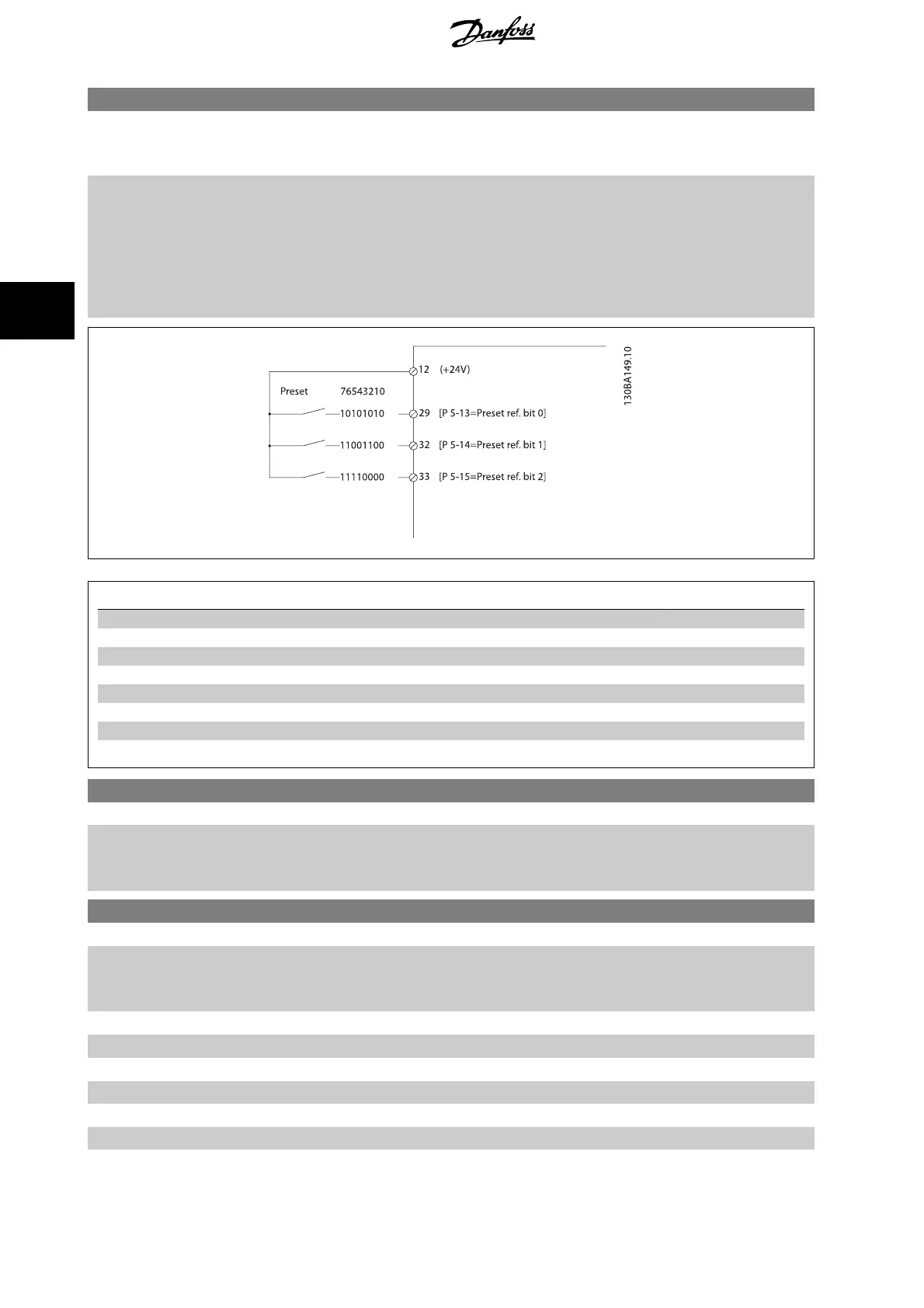

. When using preset references, select
Preset ref. bit 0 / 1 / 2 [16], [17] or [18] for the corresponding digital inputs in parameter group
5-1*.
Preset ref. bit 2 1 0
Preset ref. 0 0 0 0
Preset ref. 1 0 0 1
Preset ref. 2 0 1 0
Preset ref. 3 0 1 1
Preset ref. 4 1 0 0
Preset ref. 5 1 0 1
Preset ref. 6 1 1 0
Preset ref. 7 1 1 1
3-11 Jog Speed [Hz]
Range: Function:
Application
dependent*
[Application dependant] The jog speed is a fixed output speed at which the frequency converter is running when the jog
function is activated.
See also par. 3-80
Jog Ramp Time .
3-15 Reference Resource 1
Option: Function:
Select the reference input to be used for the first reference signal. par. 3-15 Reference Resource
1
, par. 3-16 Reference Resource 2 and par. 3-17 Reference Resource 3 define up to three different
reference signals. The sum of these reference signals defines the actual reference.
[0] No function
[1] * Analog input 53
[2] Analog input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
4 How to Programme
VLT
®
AutomationDrive FC 300 Operating
Instructions
56 MG.33.AG.02 - VLT
®
is a registered Danfoss trademark
4
