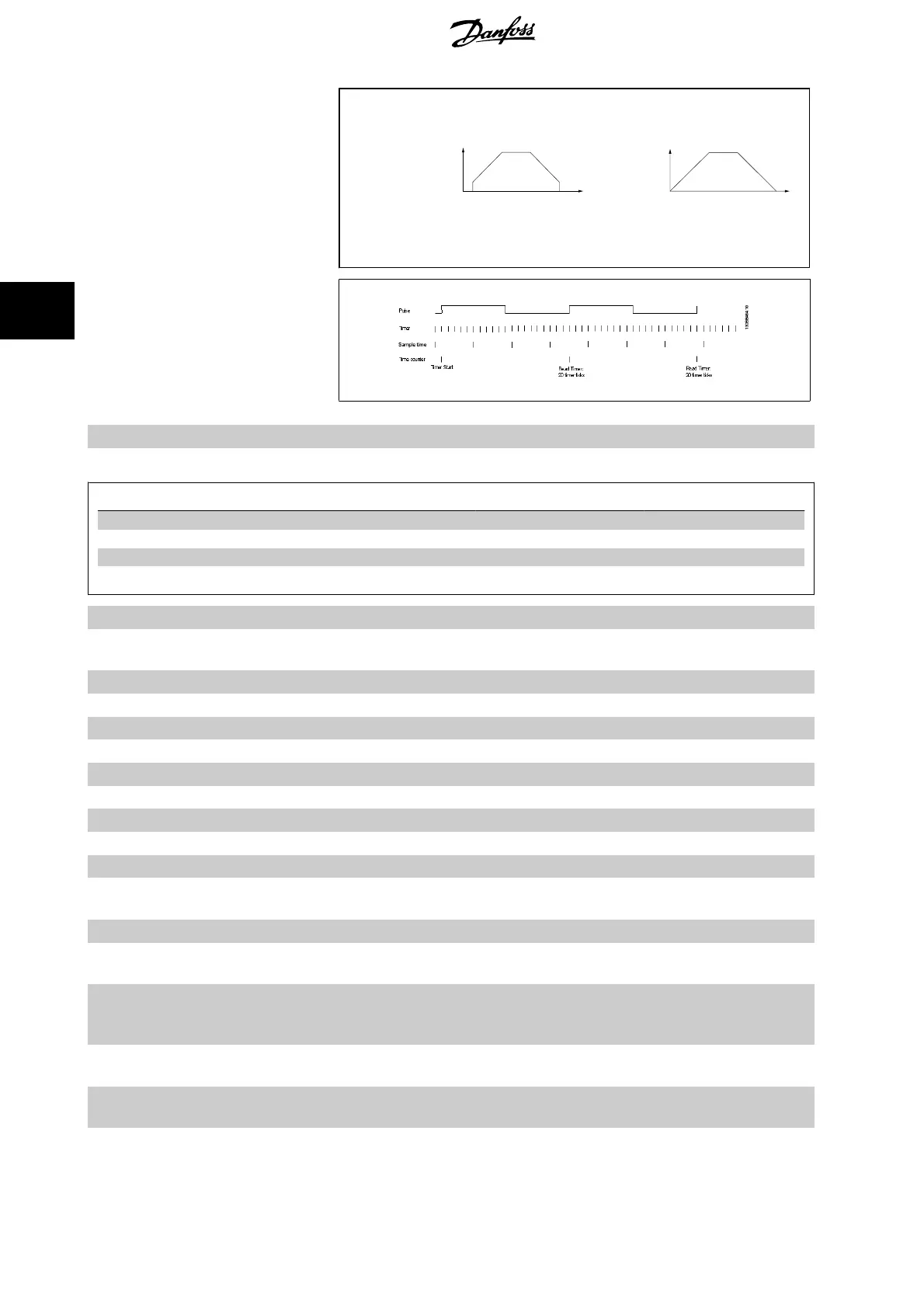

Page #62 background imageLoading...
Page #62 background image
S p e e d [ r p m ]
S p e e d [ r p m ]
T
ime[sec]
T
ime[sec] a b
130BB462.10
a: very low encoder resolution b: standard encoder resolution
[34] Ramp bit 0 Enables a choice between one of the 4 ramps available, according to the table below.
[35] Ramp bit 1 Same as Ramp bit 0.
Preset ramp bit 10
Ramp 1 0 0
Ramp 2 01
Ramp 3 1 0
Ramp 4 11
[36] Mains failure inverse Activates par. 14-10
Mains Failure
. Mains failure inverse is active in the Logic .0. situation.
[41] Latched Precise Stop inverse Sends a latched stop signal when the precise stop function is activated in par. 1-83
Precise Stop
Function
. The Latched Precise stop inverse function is available for terminals 18 or 19.
[55] DigiPot Increase INCREASE signal to the Digital Potentiometer function described in par. group 3-9*
[56] DigiPot Decrease DECREASE signal to the Digital Potentiometer function described in par. group 3-9*
[57] DigiPot Clear Clears the Digital Potentiometer reference described in par. group 3-9*
[60] Counter A (Terminal 29 or 33 only) Input for increment counting in the SLC counter.
[61] Counter A (Terminal 29 or 33 only) Input for decrement counting in the SLC counter.
[62] Reset Counter A Input for reset of counter A.
[63] Counter B (Terminal 29 or 33 only) Input for increment counting in the SLC counter.
[64] Counter B (Terminal 29 or 33 only) Input for decrement counting in the SLC counter.
[65] Reset Counter B Input for reset of counter B.
[70] Mech. Brake Feedback Brake feedback for hoisting applications: Set par 1-01 to [3]
flux w/ motor feedback
; set par 1-72
to [6]
Hoist mech brake Ref.
[71] Mech. Brake Feedback inv. Inverted brake feedback for hoisting applications
[72] PID error inverse When enabled, it inverts the resulting error from the process PID controller. Available only if "Con-
figuration Mode" is set to "Surface Winder", "Extended PID Speed OL" or "Extended PID Speed CL".
[73] PID reset I-part When enabled, resets the I-part of the Process PID controller. Equivalent to par. 7-40. Available
only if "Configuration Mode" is set to "Surface Winder", "Extended PID Speed OL" or "Extended PID
Speed CL".
[74] PID enable When enabled, enables the extended process PID controller. Equivalent to par. 7-50. Available only
if "Configuration Mode" is set "Extended PID Speed OL" or "Extended PID Speed CL".
[80] PTC Card 1 All Digital Inputs can be set to PTC Card 1 [80]. However, only one Digital Input must be set to this
choice.
4 How to Programme
VLT
®
AutomationDrive FC 300 Operating
Instructions
62
MG.33.AG.02 - VLT
®
is a registered Danfoss trademark
4
