2. Connect the safe output S37 on the safety option to terminal 37 on the control card (maximum length of this wire is 100 mm
(3.9 in)).
1
2
10 mm
e30bd009.11
1
2
3
4
7
6
5
10
8
9
11
12

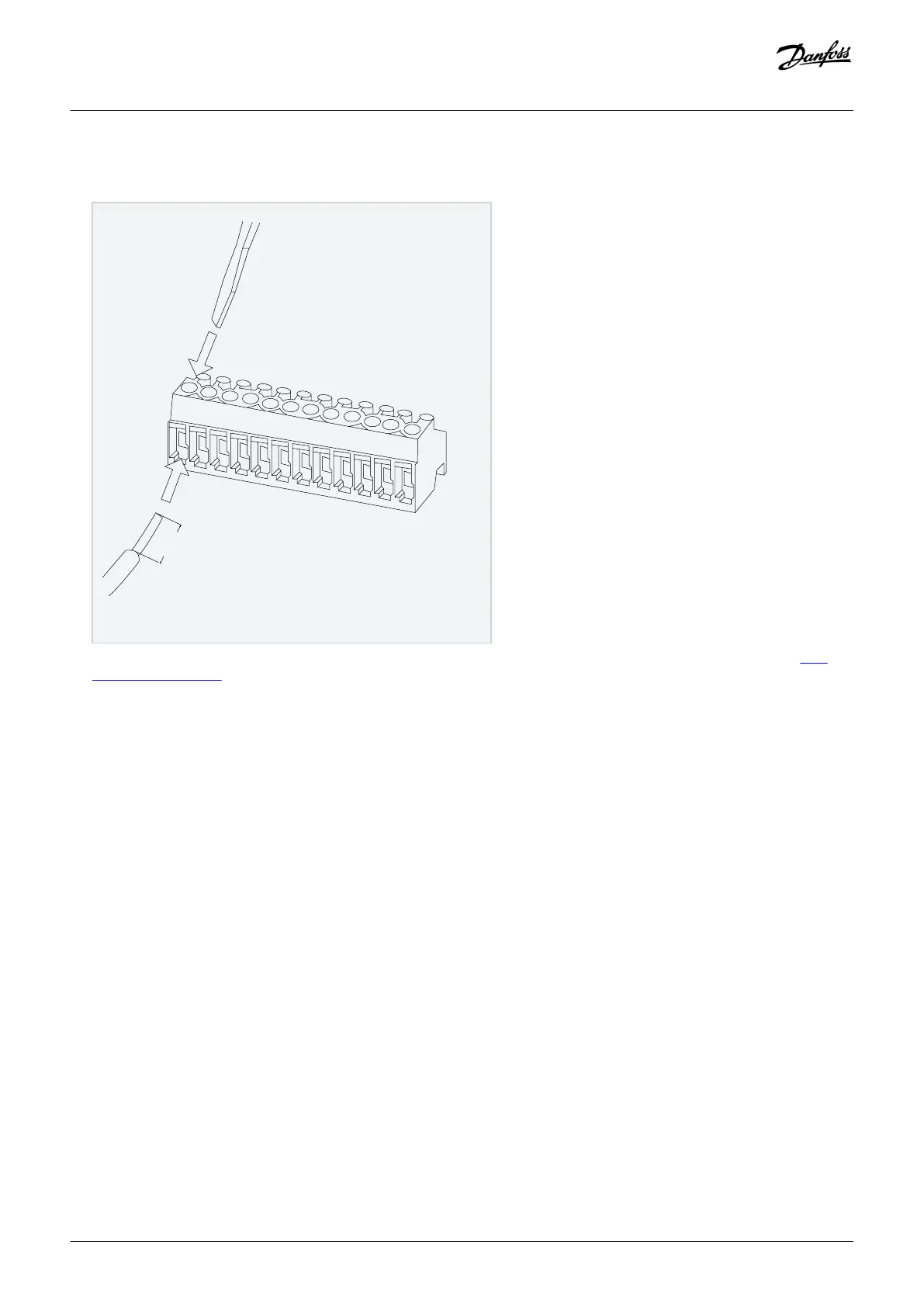

Illustration 14: Connecting Control Wiring, Example Showing FC 302
3. Connect the control cables to the safety option and relieve the cable by the enclosed cable strips. Follow the guidelines in 4.4.1
Cabling Requirements.
