4.4.3 Wiring Procedures
Procedure
1. Remove the jumper wire between control terminals 37 and 12/13 (24 V).
Cutting or breaking the jumper is not sufficient to avoid short-circuiting.
12/13
37
e30ba874.11

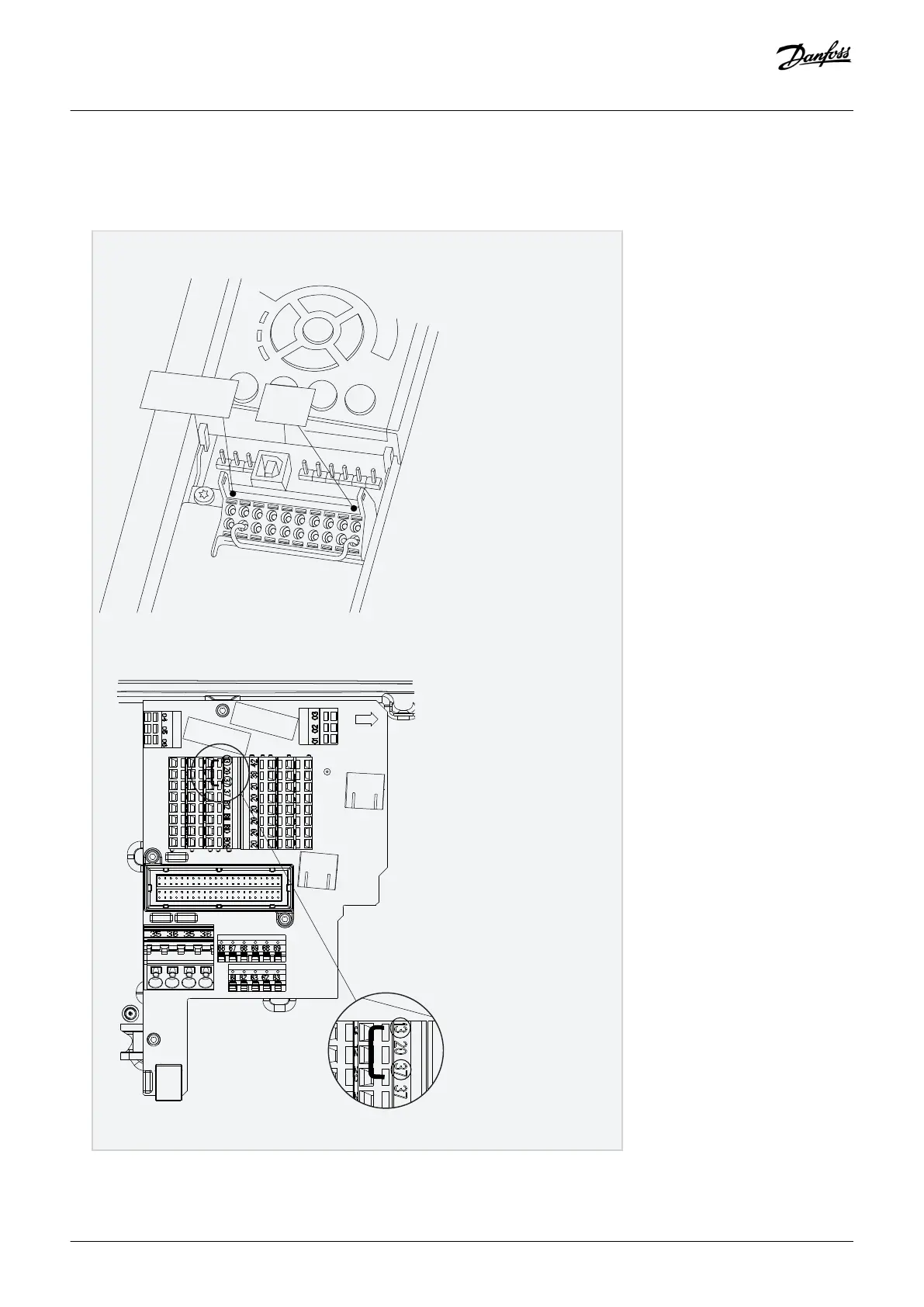

Illustration 12: Jumper between Terminals 12/13 and 37 (VLT® AutomationDrive FC 302)
e30bc393.11
Illustration 13: Jumper between Terminal 12/13 (24 V) and 37, VLT® Decentral Drive FCD 302
