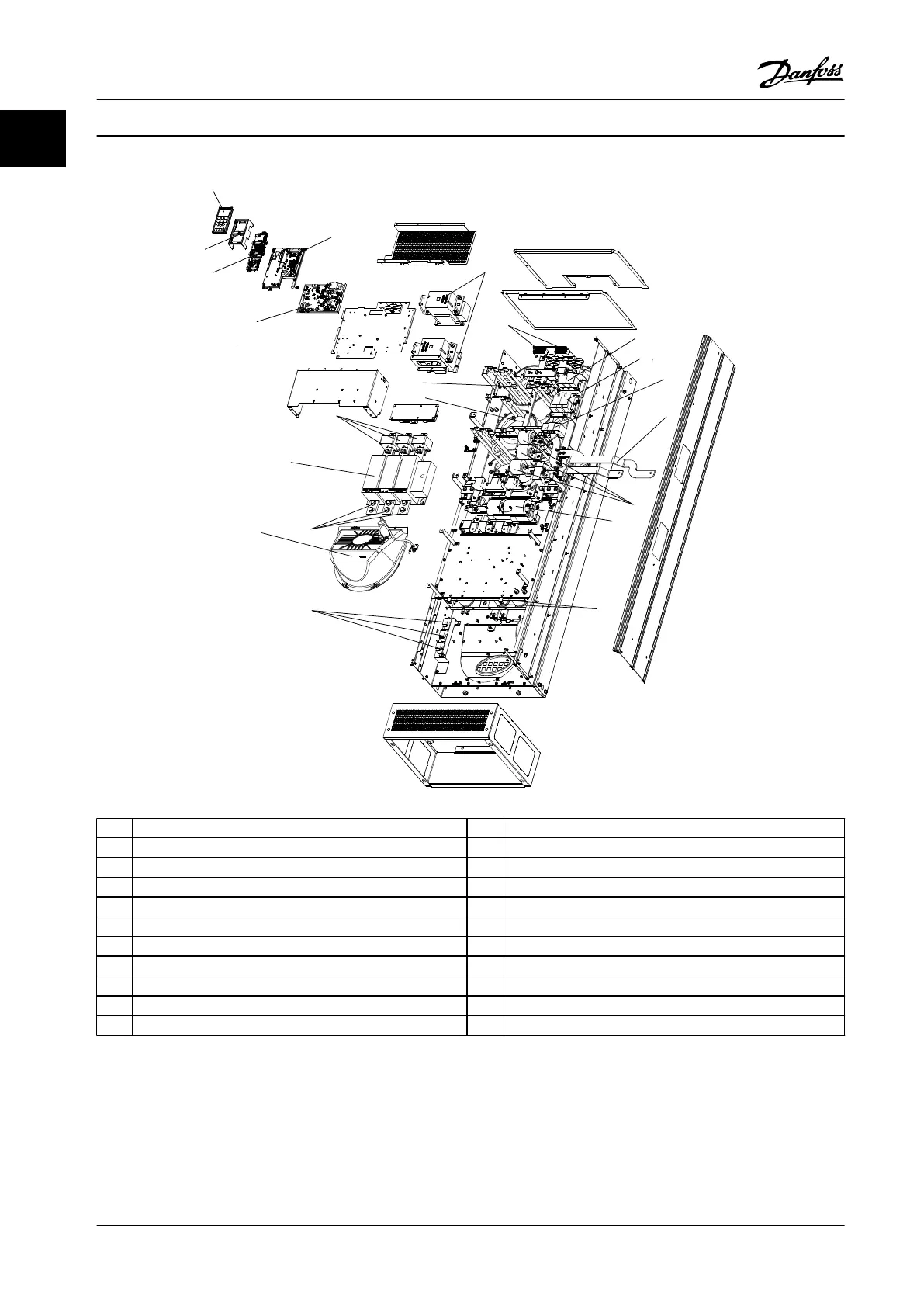

1 Local control panel (LCP) 12 AC capacitor current transducers
2 Active lter card (AFC) 13 Heatsink fan
3 Line power contactors 14 Line power terminals
4 Soft-charge resistors 15 Line power disconnect
5 RFI dierential mode lter 16 Electrical fuses
6 RFI common mode lter 17 LC inductor
7 Current transformer (CT) 18 HI inductor
8 Line power bus bars to drive output 19 Power card
9 AC capacitors 20 Control card
10 RFI 21 LCP cradle
11 Lower DC capacitor bank
Figure 1.5 Frame Size E9 Filter Enclosure
Introduction
VLT
®
AutomationDrive FC 302 Low Harmonic Drive
132–630 kW
