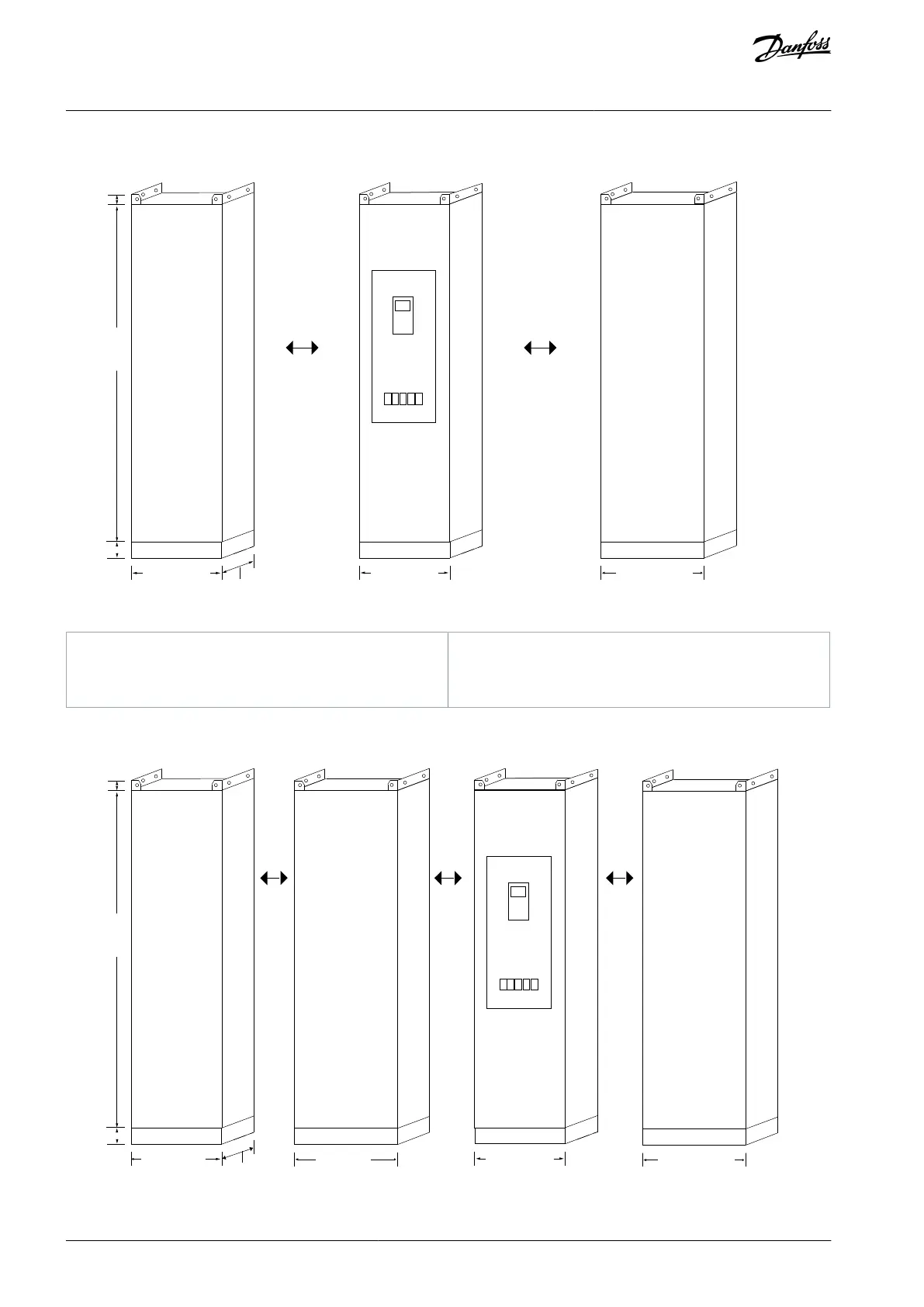

10.9.2 D9h Enclosed Drive Exterior Dimensions
e30bu121.10
400 (15.8) /
600 (23.8)
2000
55
(78.7)
100 (3.9)
400 (15.8)
600 (23.6)
(2.2)
1 2 3
4
600 (23.6)
Illustration 80: Dimensions for D9h Enclosure with Standard Pedestal
1
Passive harmonic filter/line reactor cabinet
2
D9h drive cabinet
3
Sine-wave cabinet
4
Standard pedestal
10.9.3 D10h Enclosed Drive Exterior Dimensions
e30bu143.10
400 (15.8) /
2000
55
(78.7)
100 (3.9)
600 (23.6)
600 (23.6)
(2.2)
1
3
4
5
600 (23.6)
2
600 (23.6)
600 (23.6)
Illustration 81: Dimensions for D10h Enclosure with Standard Pedestal
