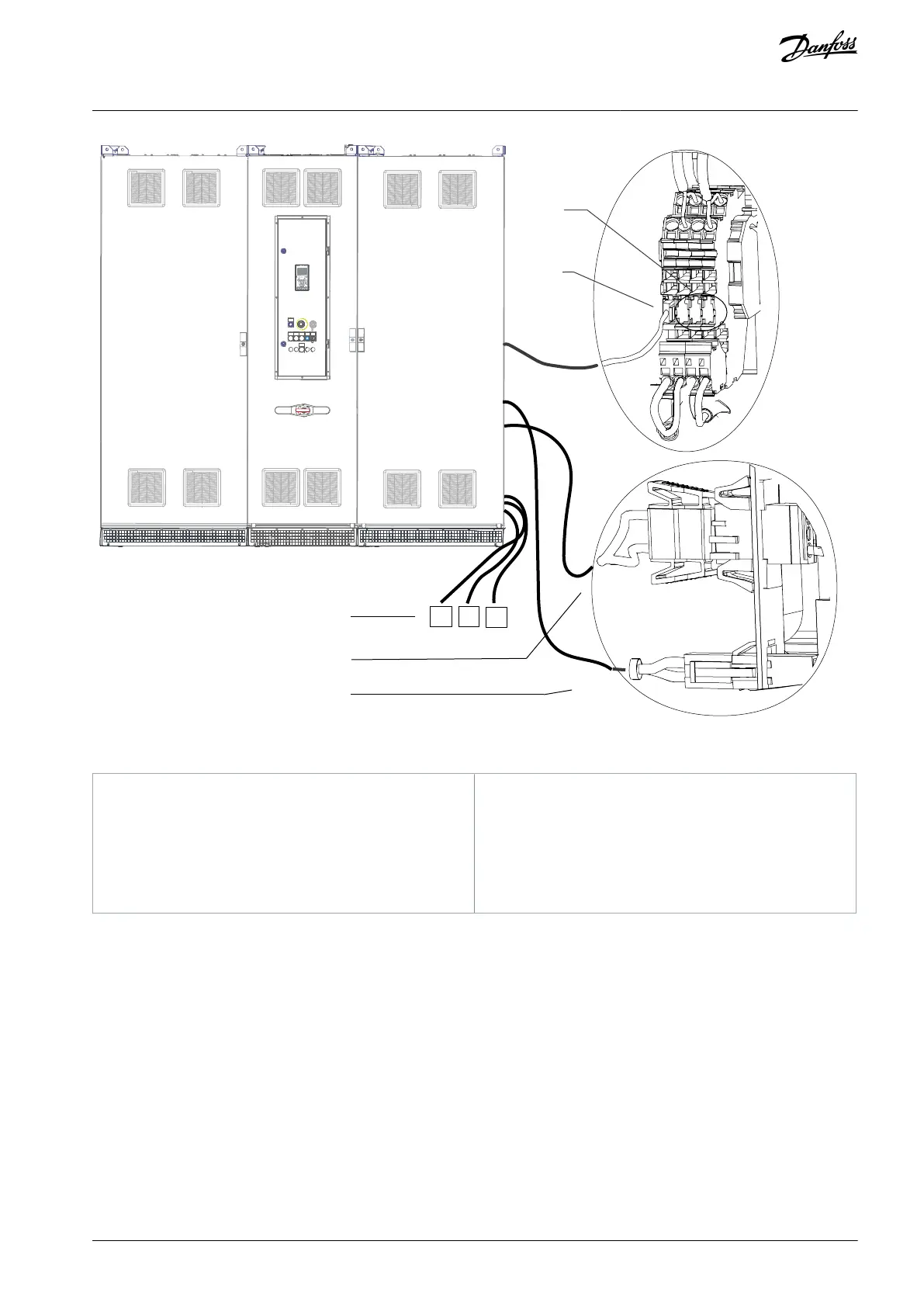

Illustration 39: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + E5h Drive Cabinet)
1
Motor cables (U/V/W) to motor terminals (U/V/W) in
output filter cabinet
2
DC-link harness to fan supply in output filter cabinet
3
Cabinet heater supply harness to output filter cabi-
net
4
Additional terminal connections
5
Thermal protection wiring harness to output filter
cabinet
AQ262139143212en-000301 / 130R0879 | 73Danfoss A/S © 2021.10
Electrical Installation
VLT® AutomationDrive FC 302
Operating Guide
