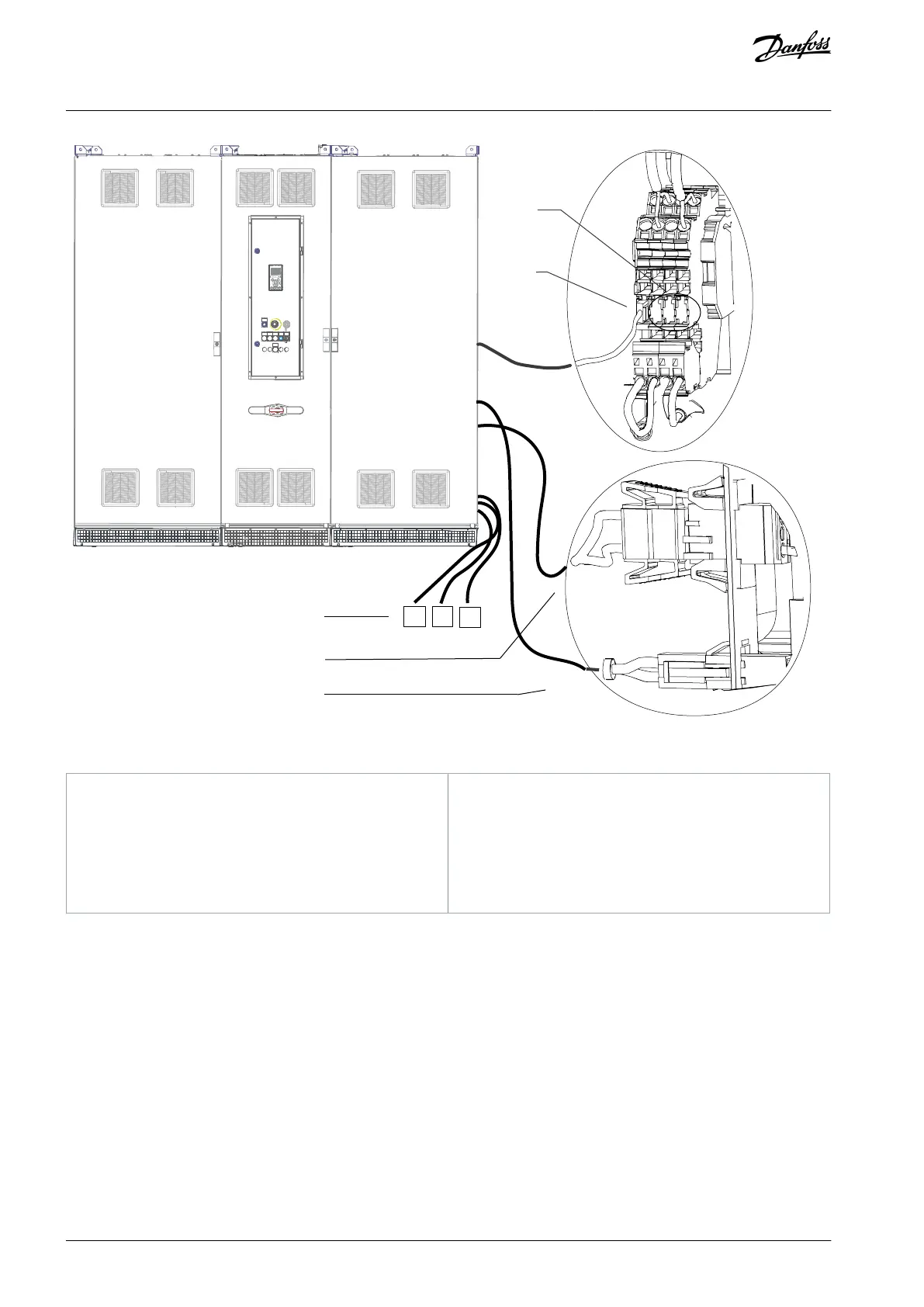

Illustration 31: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + E5h Drive Cabinet)
1
Motor cables (U/V/W) to motor terminals (U/V/W) in
output lter cabinet
2
DC-link harness to fan supply in output lter cabinet
3
Cabinet heater supply harness to output lter cabi-
net
4
Additional terminal connections
5
Thermal protection wiring harness to output lter
cabinet
