Danfoss VLT FC 103 - Page 61

e30bu187.11
-XDL.1
-XD4.1
-XD11.1
7
8
9
10
R
TS
-XD4.1
-XD4.3
-XD11.3
-XDL.1
2
3
4
5
6
L1R
L3T
L2S
1

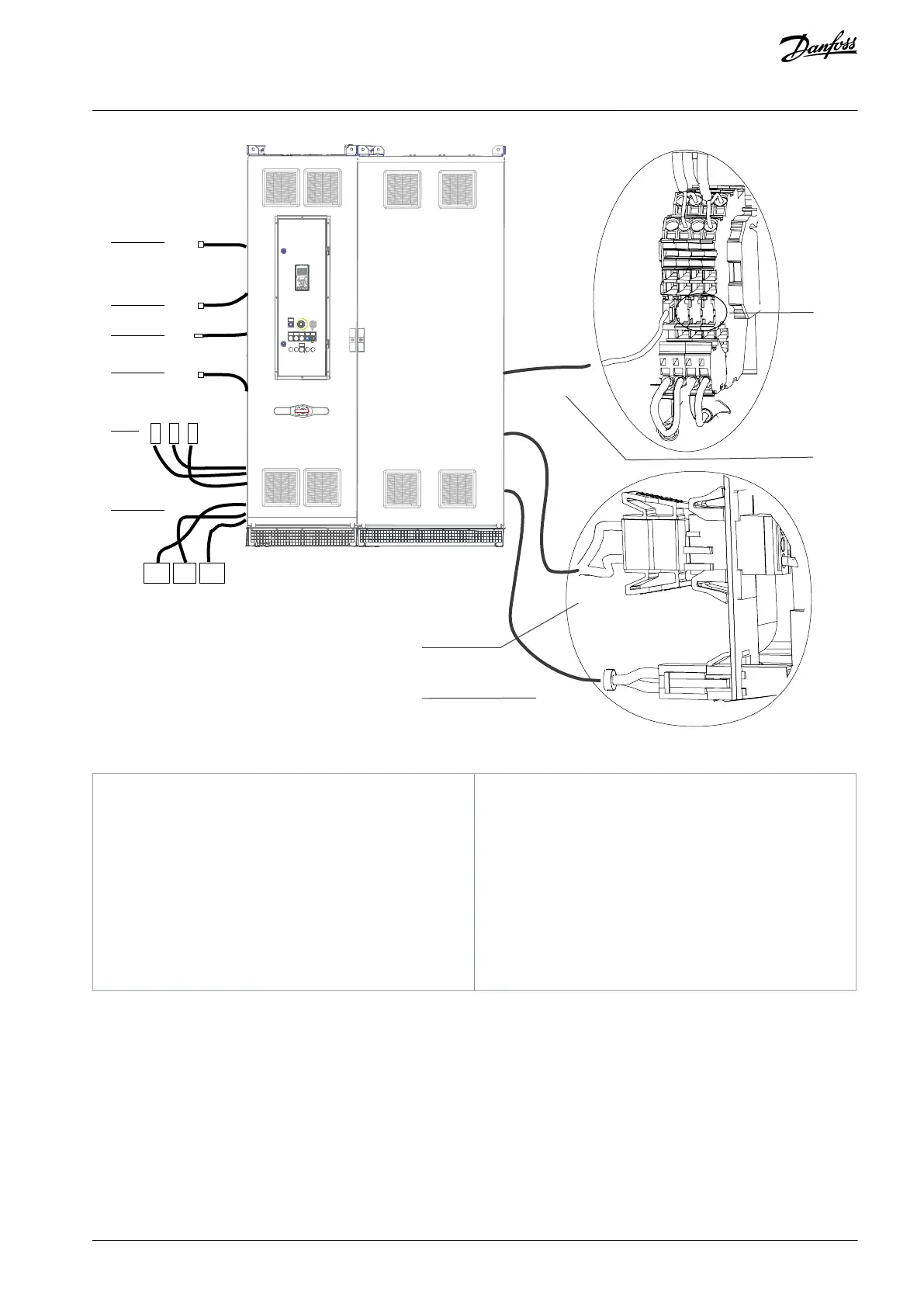

Illustration 32: Split Shipment Electrical Connections (Input Power Options Cabinet + E5h Drive Cabinet)
1
Cabinet heater supply harness to input lter cabinet
2
DC-link harness to fan supply in input lter cabinet
3
Thermal protection harness to input lter cabinet
4
PHF contactor 1 supply harness to input lter cabi-
net (only with PHF option)
5
Mains cables (R/S/T) to input terminals (R/S/T) in the
input lter cabinet
6
Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input lter cabinet
7
DC-link harness to fan supply to output lter cabinet
8
Cabinet heater supply harness to output lter cabi-
net
9
Available terminal connections
10
Thermal protection wiring harness to output lter
cabinet
