Danfoss VLT HVAC Drive FC 102 - Page 105

130BF644.10
0.0
46 (1.8) 98 (3.9)
119 (4.7) 171 (6.7)
0.0
135 (5.3)
437 (17.2)
0.0
533 (21.0)
44 (1.7)
244 (9.6)
1
2
1 Mains terminals 2 Ground bar

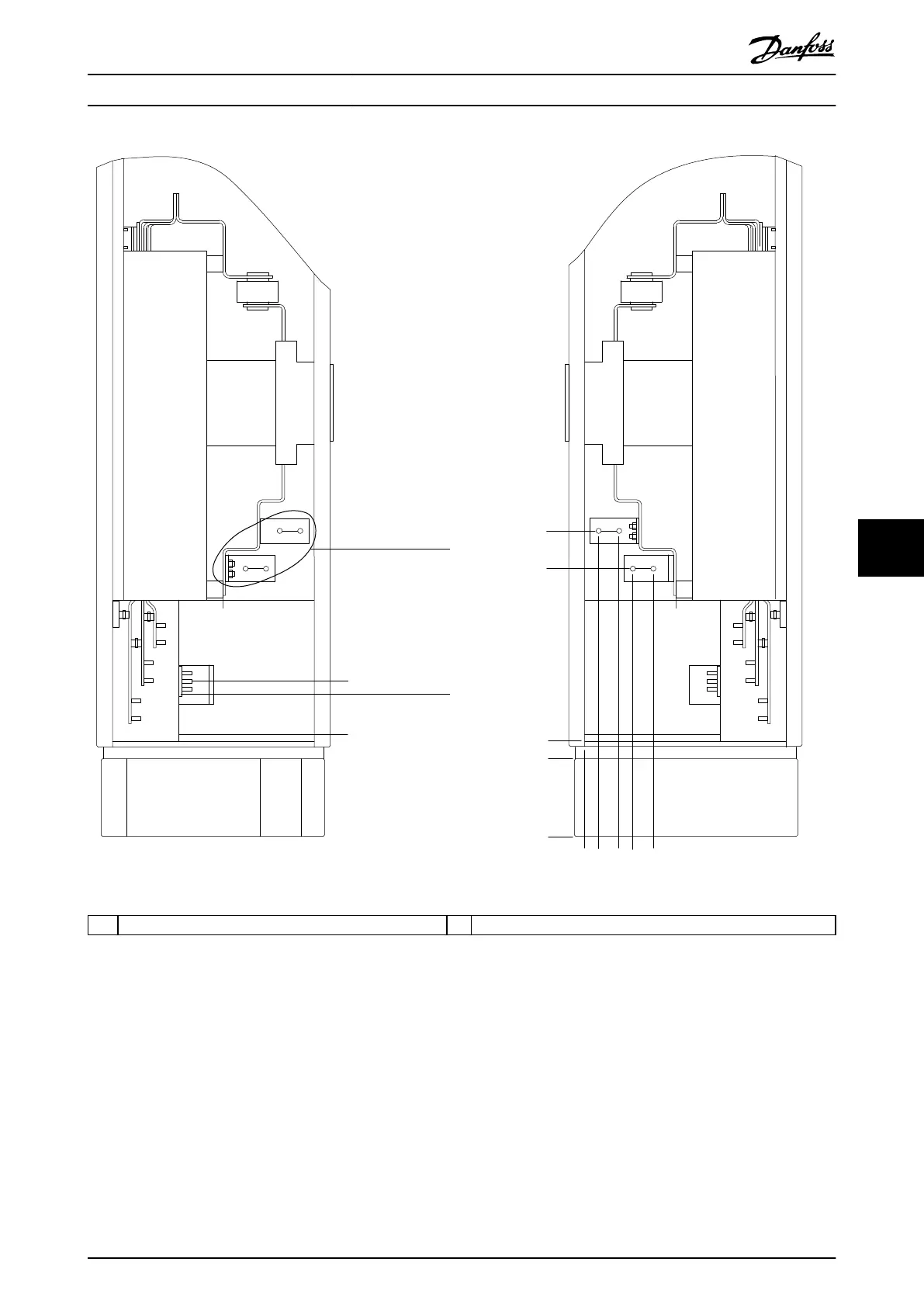

Illustration 8.39 Terminal Dimensions for F3–F4 Options Cabinet with Circuit Breaker/Molded Case Switch (380–480/500 V Models:
P500–P630; 525–690 V Models: P800), Side View
