8.8 F9 Exterior and Terminal Dimensions
8.8.1 F9 Exterior Dimensions
130BF333.10
2204
(86.8)
1400 (55.2)
2280
(89.8)
606
(23.9)
578
(22.8)
776
(30.6)

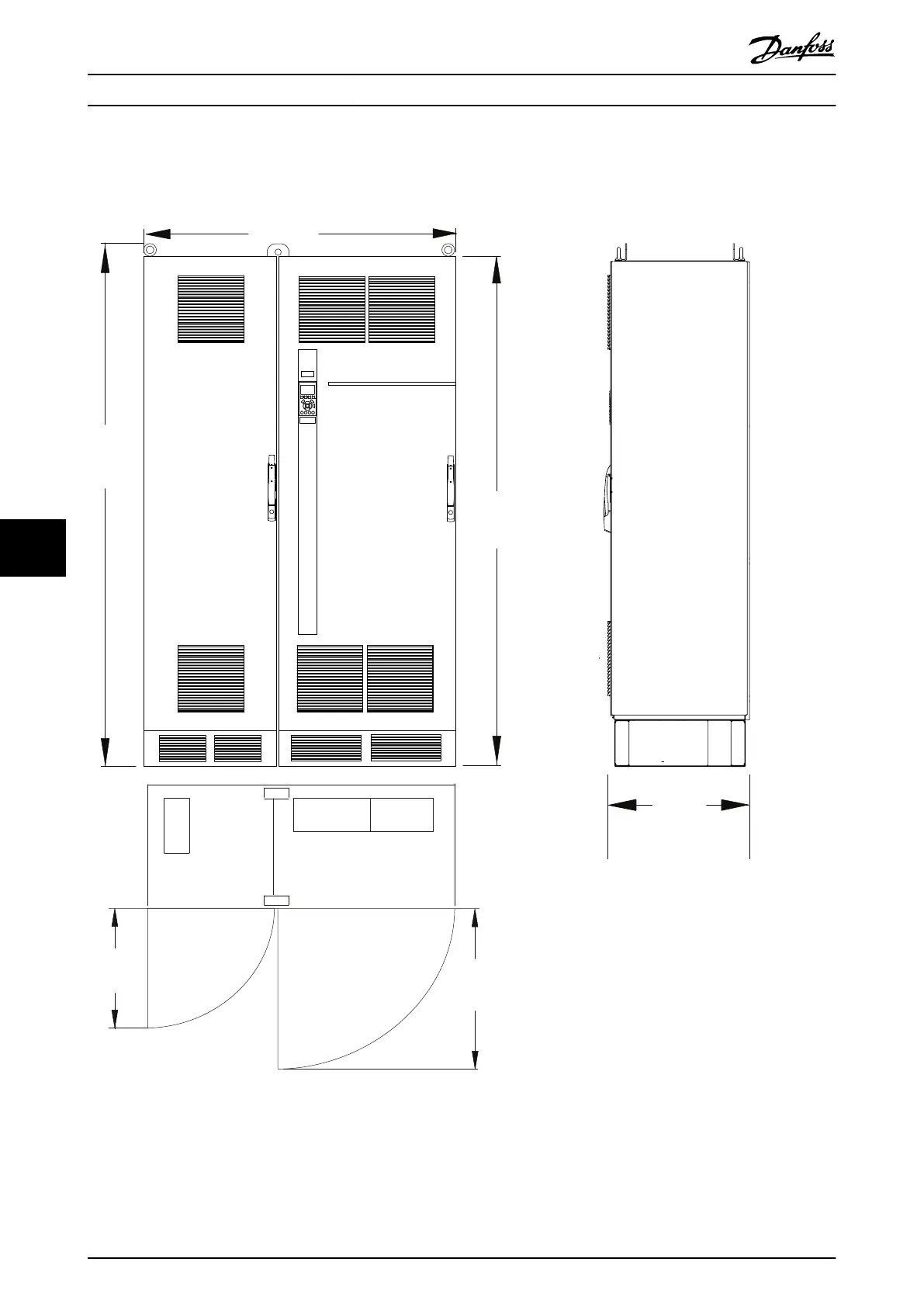

Illustration 8.60 Front, Side, and Door Clearance Dimensions for F9
