8 Exterior and Terminal Dimensions
8.1 E1 Exterior and Terminal Dimensions
8.1.1 E1 Exterior Dimensions
130BF328.10
600 (23.6)
2000
(78.7)
538 (21.2)
494 (19.4)
579
(22.8)
748
(29.5)

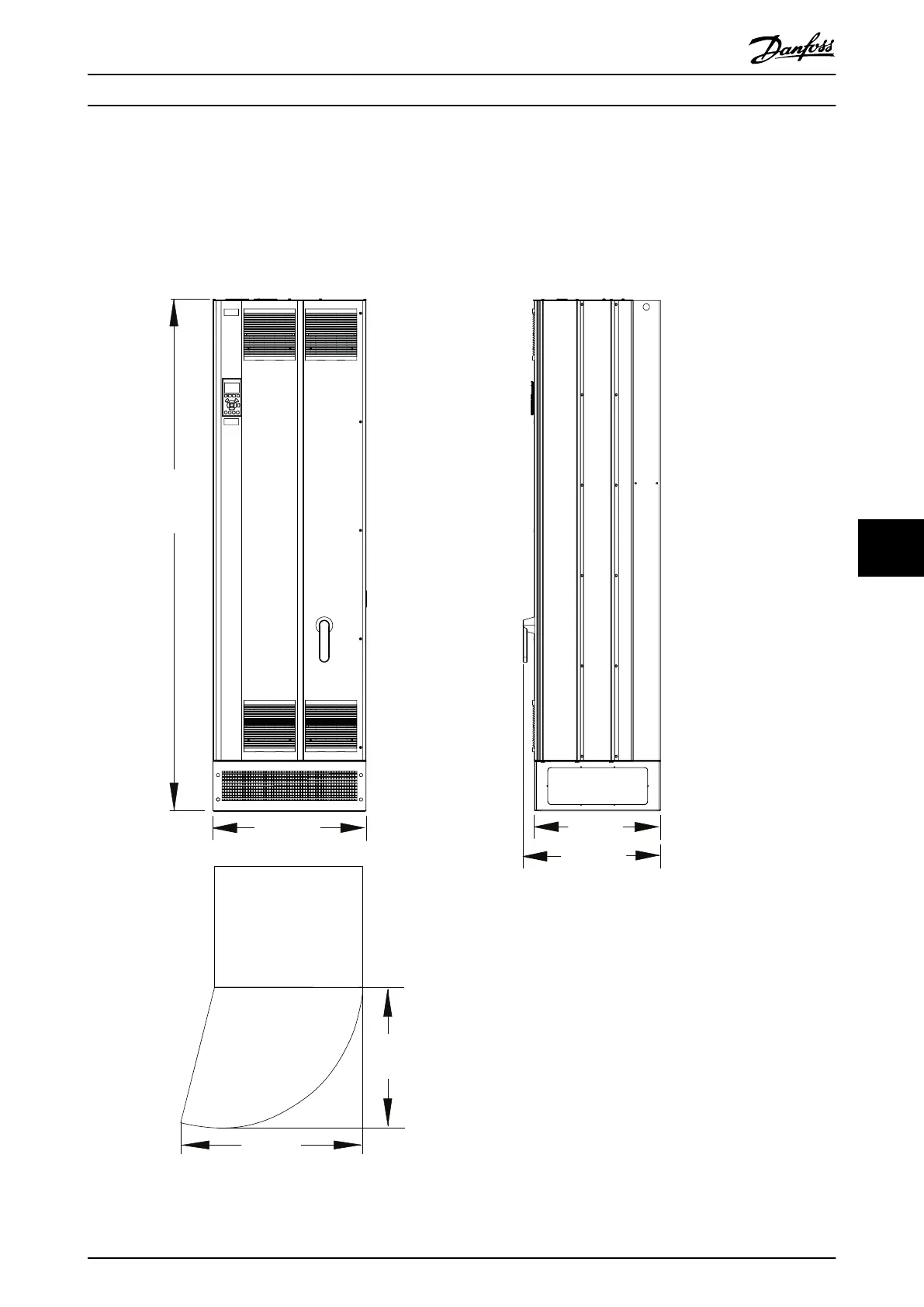

Illustration 8.1 Front, Side, and Door Clearance Dimensions for E1
