Danfoss VLT HVAC Drive FC 102 - Page 120

130BF364.10
287 (11.3) 339 (13.4)
253 (10.0)
0.0
287 (11.3)
0.0
339 (13.4) 466 (18.3) 466 (18.3)
308 (12.1)
180 (7.1)
0.0
1
2
3
1 Brake terminals 3 Ground bar
2 Motor terminals – –

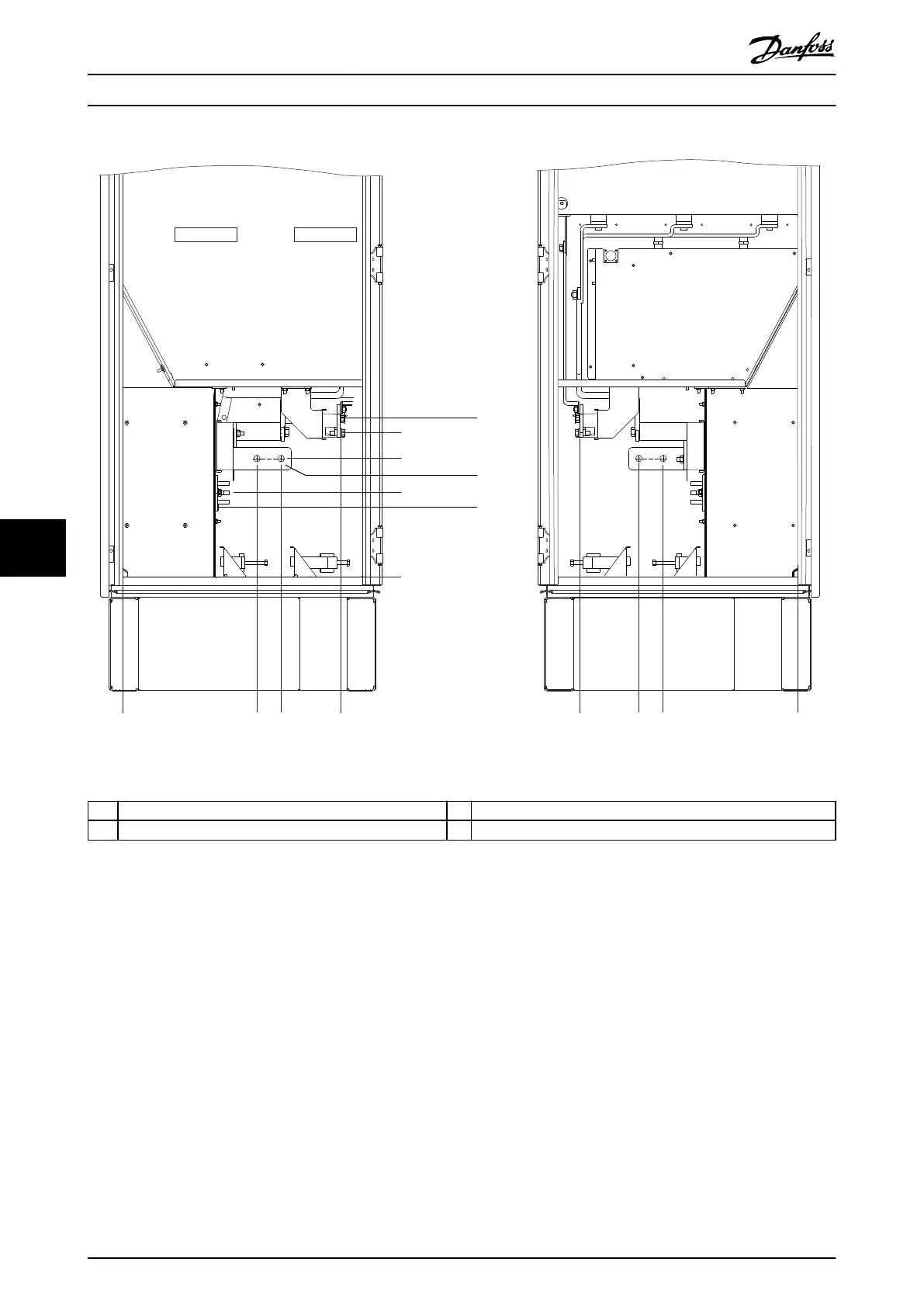

Illustration 8.54 Terminal Dimensions for F2/F4 Inverter Cabinet, Side View
Exterior and Terminal Dimen...
VLT
®
HVAC Drive FC 102
