Danfoss VLT HVAC Drive FC 102 - Page 158

210 (8.3)
0.0
66 (2.6)
181 (7.1)
296 (11.7) 431 (17.0) 546 (21.5) 661 (26.0) 796 (31.3) 911 (35.8)
1026 (40.4)
246 (9.7)
294 (11.6) 330 (13.0) 575 (22.6) 611 (24.0) 659 (25.9) 695 (27.4) 939 (37.0) 975 (38.4)
1023 (40.3) 1059 (41.7)
144 (5.7) 219 (8.6)
512 (20.2) 587 (23.1) 880 (34.7) 955 (37.6)
3
130BF363.10
1
2
1 Brake terminals 3 Ground bar
2 Motor terminals – –

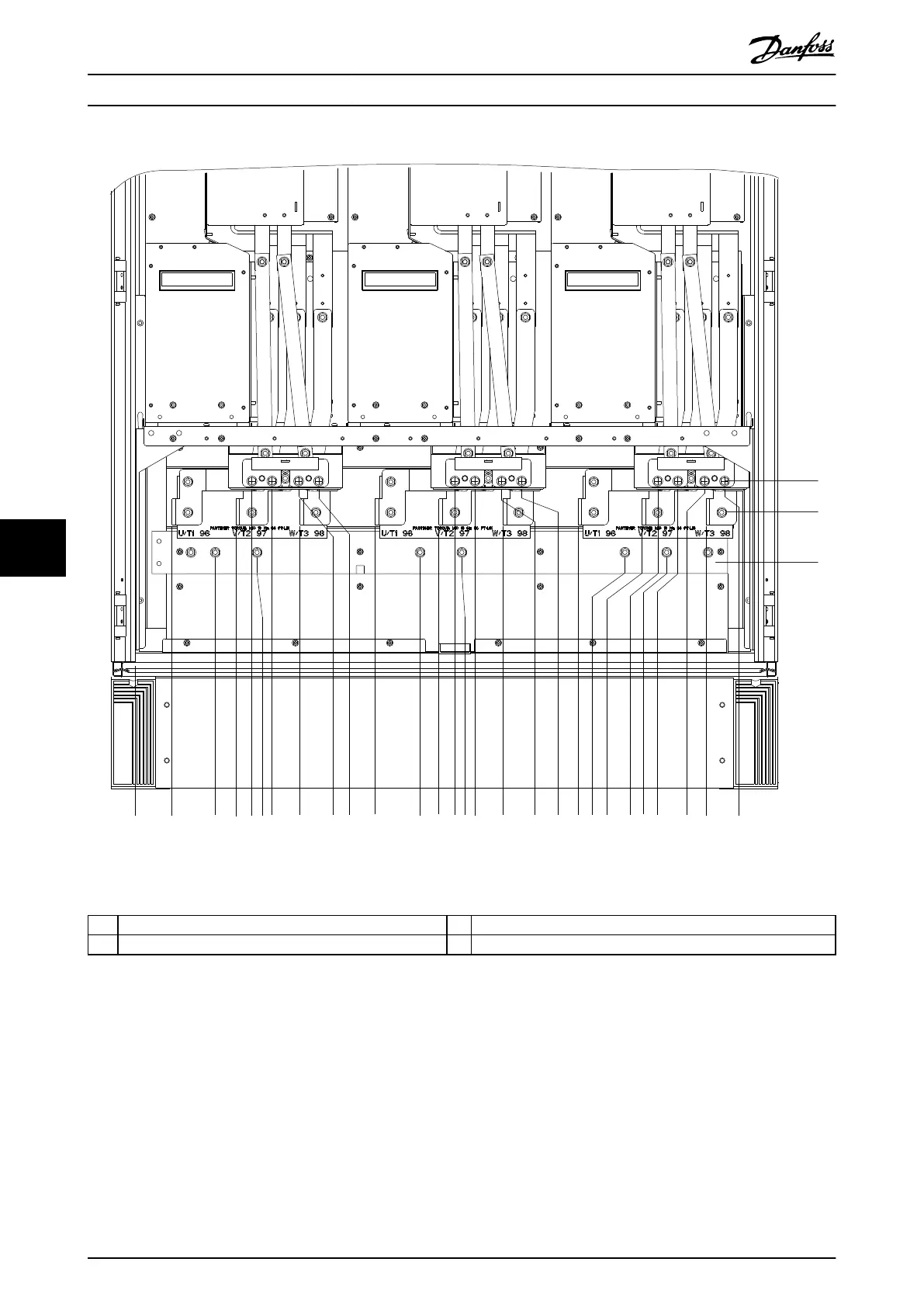

Illustration 8.92 Terminal Dimensions for F12–F13 Inverter Cabinet, Front View
