130BF601.10
R/L1 91
9
S/L2 92
U/T1 96 V/T2 97
T/L3 93
W/T3 98
F ASTENER T OR QUE M8 9.6 N m (7 FT -LB) F ASTENER T OR QUE M8 9.6 N m (7 FT -LB)
186 (7.3)
17 (0.7)
585 (23.0) 518 (20.4) 405 (15.9) 293 (11.5)
181 (7.1)
68 (2.7)
0.0
0.0
147 (5.8)
583(22.9)
502 (19.8)
454 (17.9) 418 (16.4)
1
3
2
4
1 Mains terminals 3 Motor terminals
2 Brake terminals 4 Regen/load share terminals

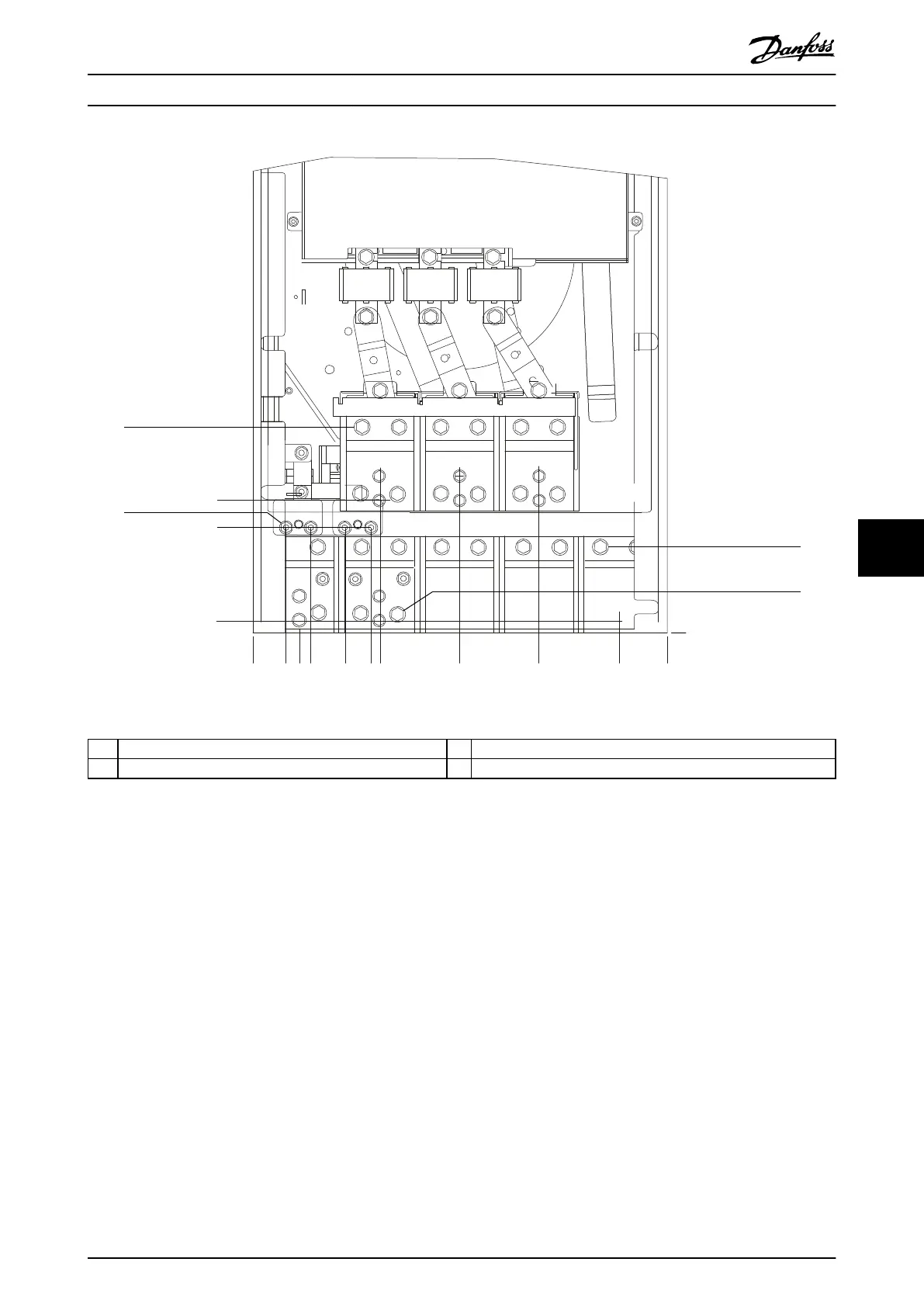

Illustration 8.13 Terminal Dimensions for E2, Front View
